INTEGRAL SYSTEM
INSTALLATION
6 4 2 1 3 5
FIXTURE POSITION NUMBERS
ROW IDENTIFICAITON
T = TOP ROW
M = MIDDLE ROW
B = BOTTOM ROW
T

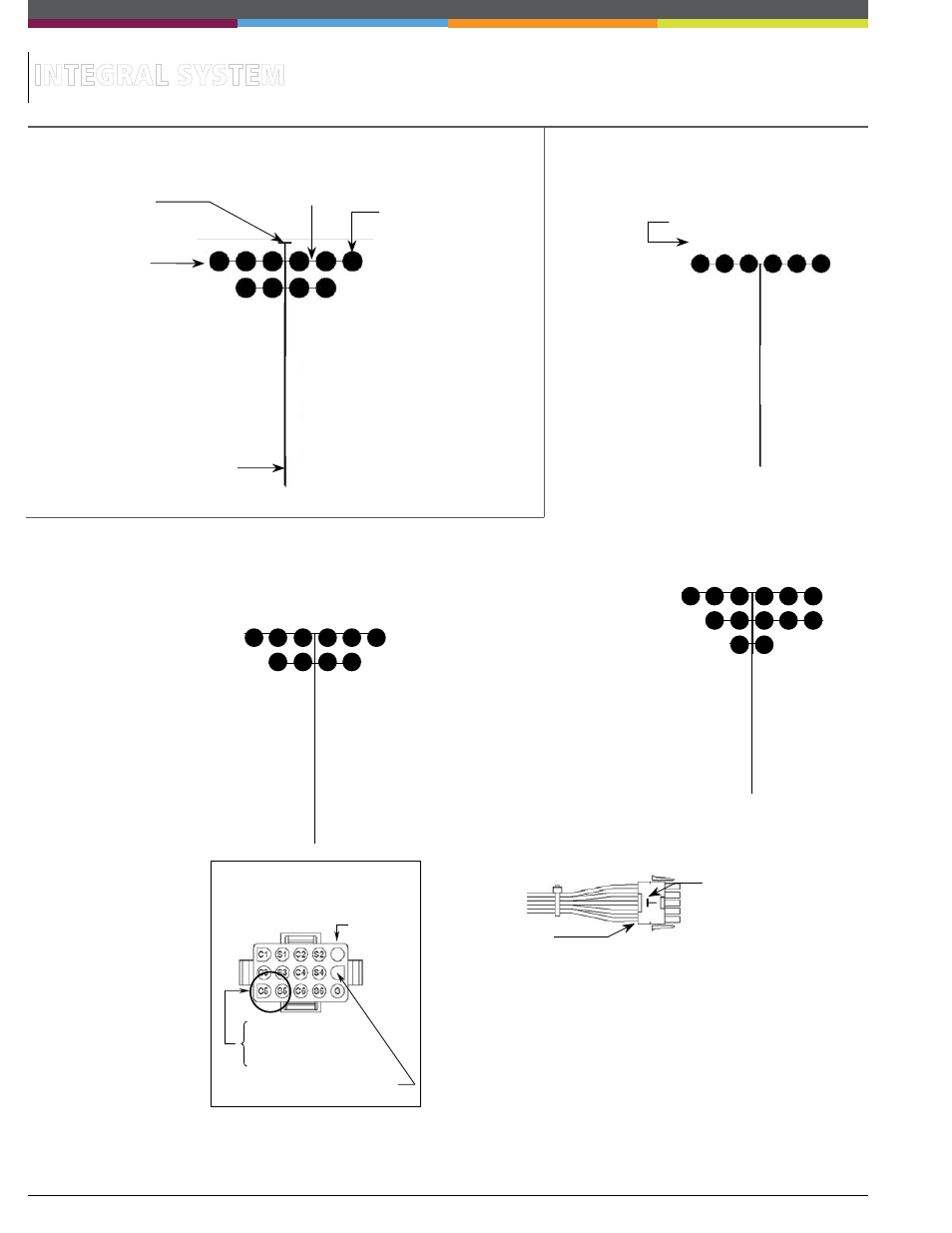

TWO ROW CROSSARM ASSY. (Fig. 8)
(QUANTITY OF FIXTURES SHOWN
IS FOR EXAMPLE ONLY)
T
B
BOTTOM ROW
TOP ROW
ONE ROW CROSSARM ASSY. (Fig. 8)
(QUANTITY OF FIXTURES SHOWN
IS FOR EXAMPLE ONLY)
THREE ROW CROSSARM ASSY (Fig. 8)
(QUANTITY OF FIXTURES SHOWN
IS FOR EXAMPLE ONLY)
T
M
B
TOP ROW
BOTTOM ROW
MIDDLE ROW
HARNESS INFORMATION
PLUG FROM EACH
CROSSARM ROW
CROSSARM ASSEMBLY ROW ID
T = TOP ROW
M = MIDDLE ROW
B = BOTTOM ROW
PLUG WIRING ASSIGNMENTS
ELECTRICAL
PLUG
C = LAMP SOCKET
CENTER CONTACT
S = LAMP SOCKET SHELL
5 = FIXTURE POSITION #
Notes:
• FRONT VIEW OF MALE PLUG SHOWN
• FIXTURE POSITIONS ARE MIRRORED
FOR FEMALE PLUG
NOTE THE “D” SHAPE FOR
PROPER PLUG ORIENTAITON
JUNCTION BOX
INTEGRAL FIXTURES
(CONCRETE POLE OR WOOD
POLE ADAPTION ONLY)
REFLECTORS
MATCH CAT. NO. OF EACH
REFLECTOR WITH LABEL AFFI
XED
ON CROSSARM ASSEMBLY
AT
EACH POSITION
CROSSARM ASSEMBLY
POLE
SUPPLY WIRING TO REMO
TE
BALLAST BOX TO BE FURNISHE
D
BY INSTALLER
POLE LOCATION A1
EACH COMPONENT (EXCEPT REFLECTORS)
IS LABELED WITH POLE ID LABEL (SEE
APPLICATION ENGINEERING DOCUMENTATION
PACKAGE FOR POLE LOCATION)
COMPONENT MATCHING (FIG. 7)
(LAYOUT SHOWN IS FOR EXAMPLE ONLY)
