INTEGRAL SYSTEM
INSTALLATION
CORRECT ALIGNMENT
CORRECT ALIGNMENT
ROTATE
TOP VIEWS
CROSSARM
ASSEMBLY
SIDE VISIBLE
ROTATE
GROUND
LINE
EQ
EQ
REMOTE BALLAST
BOX MTG. POSITION
POLE
HANDHOLE
INCORRECT ALIGNMENT
CORRECT ALIGNMENT

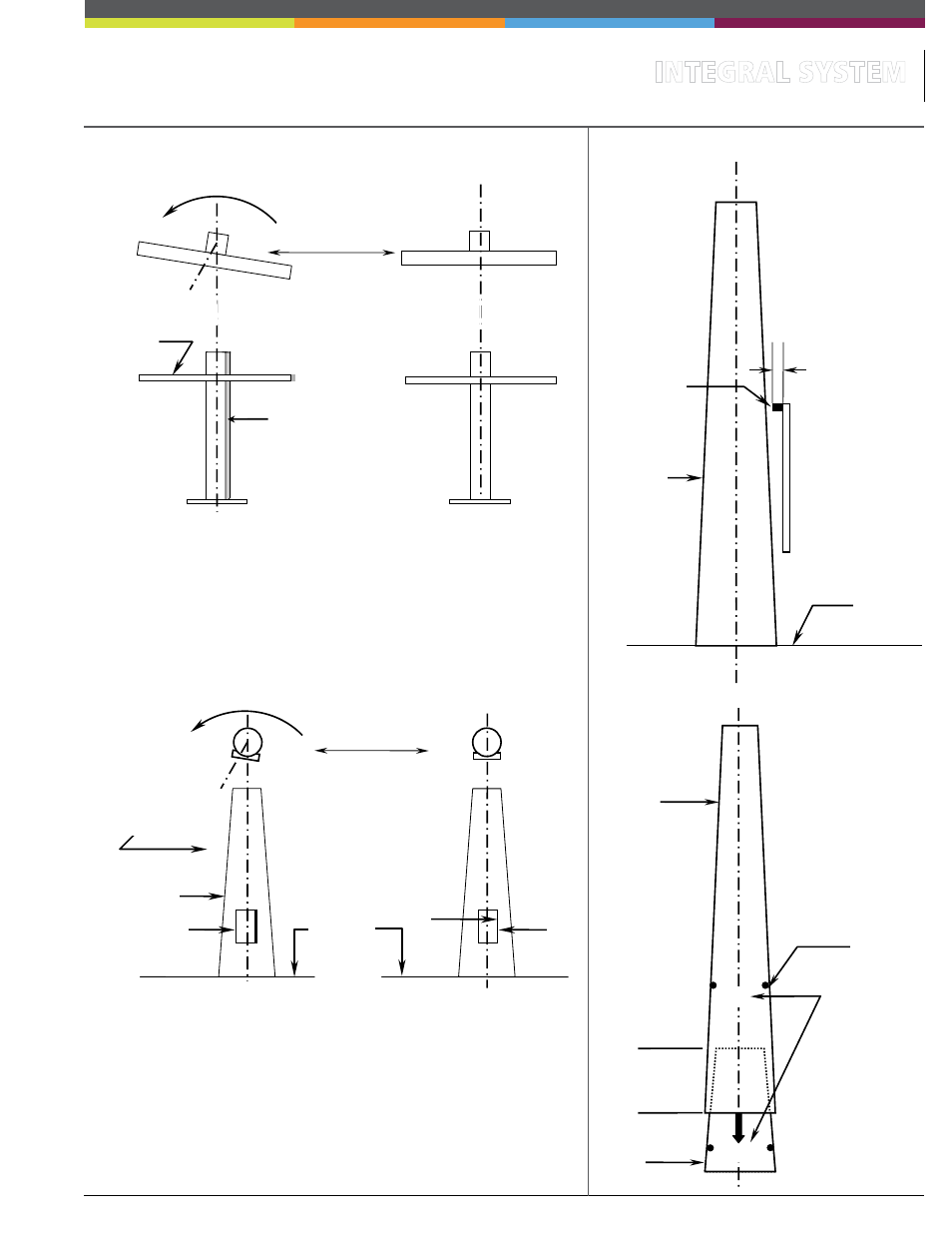

POLE ALIGNMENT DETAIL
THIS DETAIL IS CRITICAL IF COMPLETE POLE/CROSSARM A SSEMBLY CANNOT BE ERECTED AT THE SAME TIME.
INCORRECT ALIGNMENT
THE VIEWS BELOW SHOW WHAT YOU WOULD SEE LOOKING THROUGH BINOCULARS AT
THE CROSSARM OR POLE FROM THE DESIGNATED VIEWING POI NT ON THE FIELD
INCORRECT
ALIGNMENT
CORRECT ALIGNMENT
TOP VIEWS
INCORRECT
ALIGNMENT
Alignment Details (Fig. 4)
Notes: Insure that all
poles are plumb in all
directions. All poles
have taper as noted
above. When using a
plumb BOB or Transit,
a distance away
from the pole equal
to 1½ mounting
heights minimum is
recommended.
.28” FOR STEEL
.38-.42” FOR CONCRETE
(provided by others)
SPACER
POLE
GROUND LINE
Alignment Details (Fig. 5)
Typical steel pole splice detail (Fig. 6)
TYPICAL STEEL POLE
SPLICE DETAIL (FIG. 6)
UPPER POLE
SECTION
15/16” DIA. ASSEMBLY
HOLES OR EARS
A1
A1
MATCH POLE ID MARKS
LOWER POLE
SECTION
Notes: Overlap section
must be at least 1½
times bottom dia. of
the top section.
