Schwank supremeSchwank IO-210 User Manual
Page 8
2300 / IO 210 Manual
IM110107
RD: MAY 2014
R.L. 15A
8

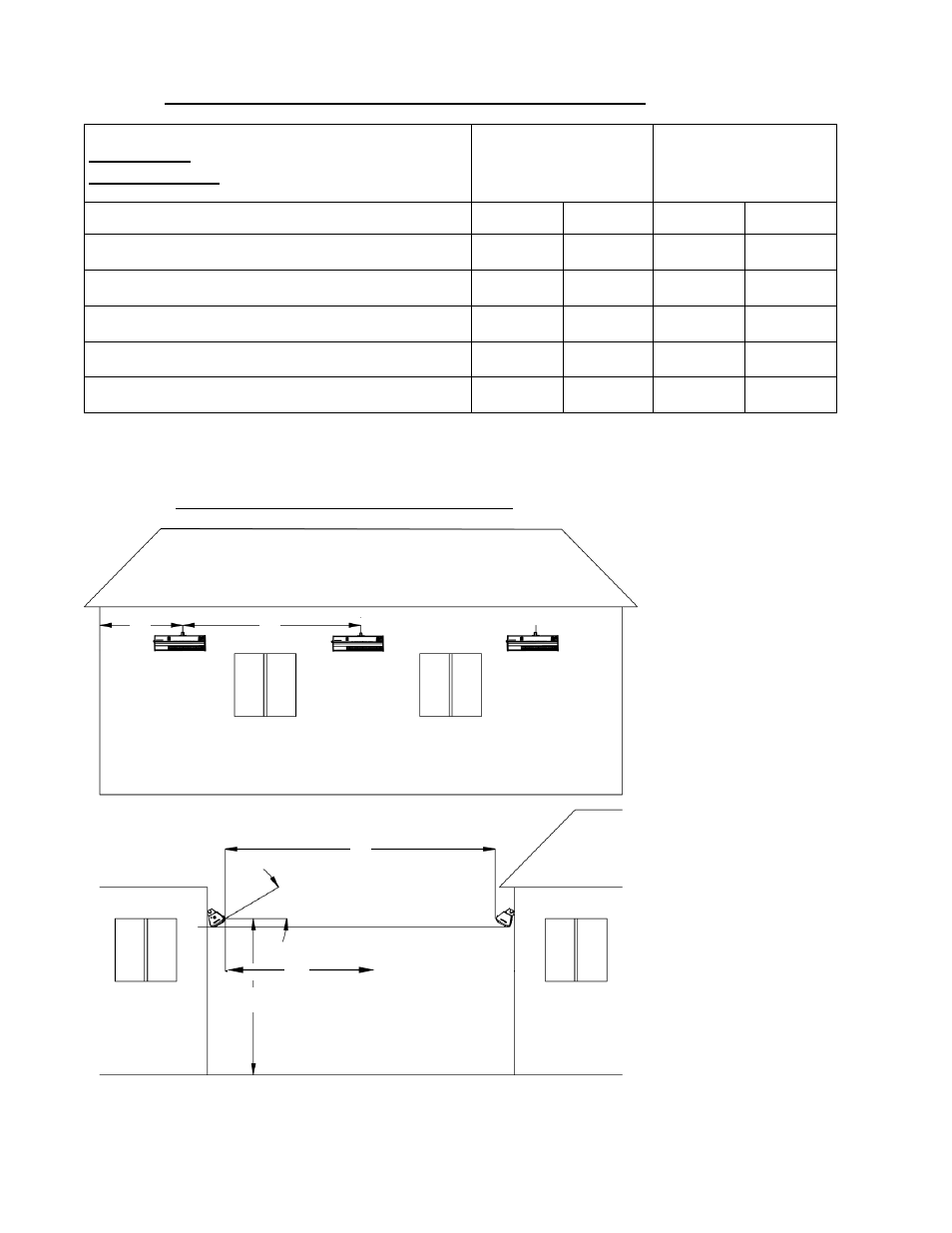

Table 2: SUGGESTED MOUNTING DISTANCES FOR COMFORT
MOUNTING
PARAMETERS ***
MODEL
2312 / IO 212
23,000 Btuh
MODEL
2313 / IO 213
35,000 Btuh
A - Mounting angle
Horizontal Max. 30
0
Horizontal Max. 30
0
H - Suggested height above deck/floor
8’ 6”
8’ 6”
9’ 0”
9’ 0”
S - Side distance to patio edge
3’ 6”
3’ 6”
4’ 0”
4’ 0”
Y - Side distance between heaters
6’ 0”
6’ 0”
8’ 0”
8’ 0”
W - Distance effective coverage
6’ 0”
7’ 0”
7’ 0”
8’ 0”
Z - Front distance between heaters
12’ 0”
14’ 0”
14’ 0”
16’ 0”
*** Note: Mounting
angles and distances
are suggested to en-
sure comfort, and are
subject to site and
design conditions.
If in doubt, please
contact your
Schwank distributor.
Ensure mounting
height in any location
is sufficient to prevent
patio patrons from
coming in contact
with the heater
Figure 2: MOUNTING PARAMETER DISTANCES
S
Y
Z
H
A (Maximum 30°)
W
