1. Install the Wall Mount Bracket on the wall, using four bolts...(field supplied). See warning
note (page 16) - ensure strength and integrity of mechanical fastening to structure
2. Install the heater bracket on the heater using four nuts.
3. Install the heater bracket to the wall mount bracket, and remove the chains from the top of
the heater.
NOTE: The heater should be installed with enough ‘slack’ on the wiring and a flexible gas
connector to allow the rotation of the heater up to the service position.
(See service position information on the next page).

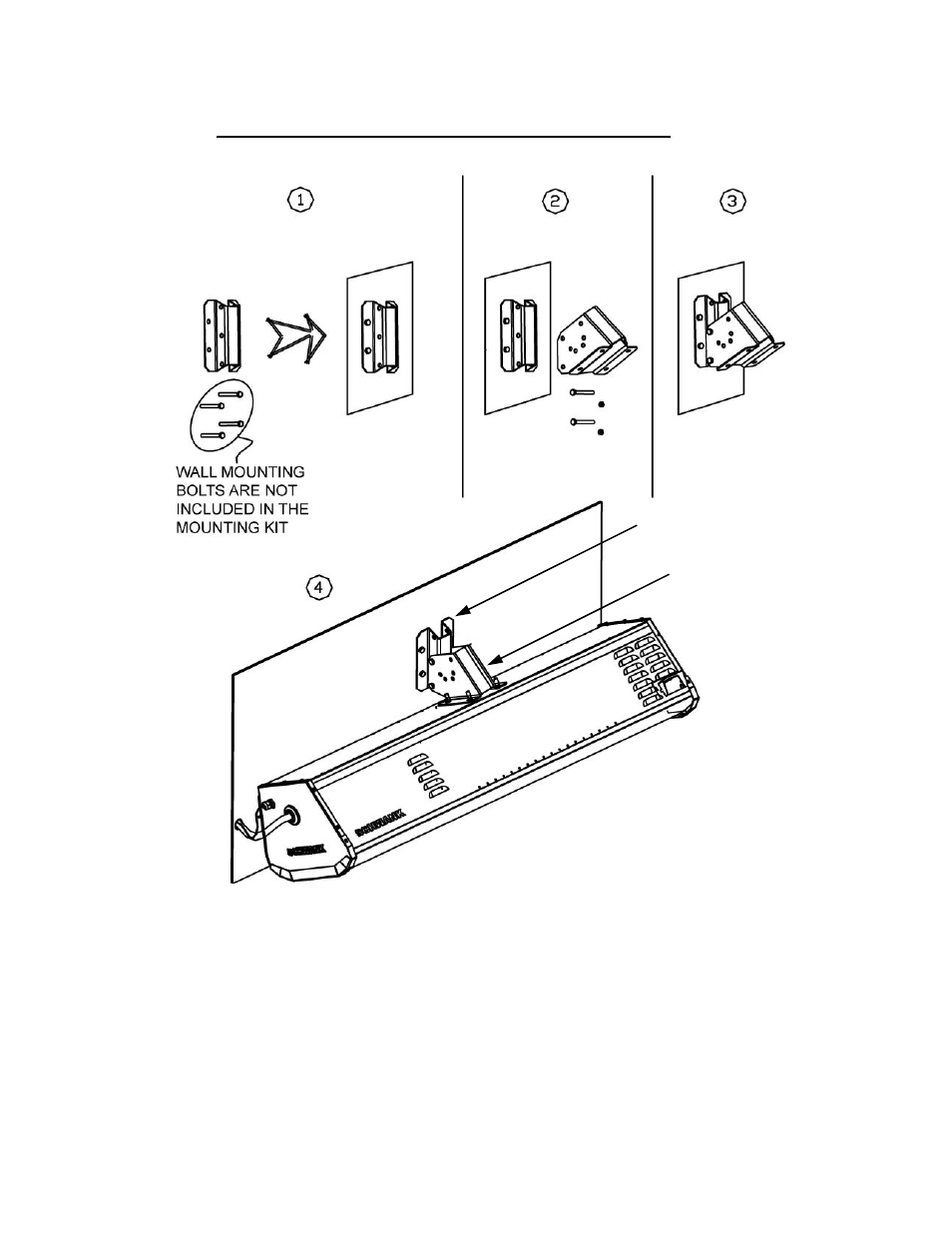

Figure 10: HEATER INSTALLATION: WALL MOUNT BRACKET
Wall Mount Bracket
Heater Bracket
