Table 3: INDOOR - MINIMUM MOUNTING & CLEARANCES TO COMBUSTIBLES
The clearance to combustible material represents the minimum distance that must be main-
tained between the outer heater surface and a nearby surface. The stated clearance to com-
bustibles represents a surface temperature of 90F° (50C°) above indoor room temperature.
It is the installer’s responsibility to ensure that building materials with a low heat tolerance
which may degrade at lower temperatures are protected to prevent degradation. Examples of
low heat tolerance materials include awnings, vinyl siding, fabrics, some plastics, filmy materi-
als, etc.
Note: Do not store or place anything directly under heater
Ensure mounting height in any location is sufficient to prevent patrons from
coming in contact with heater, and clearance to combustibles is maintained.

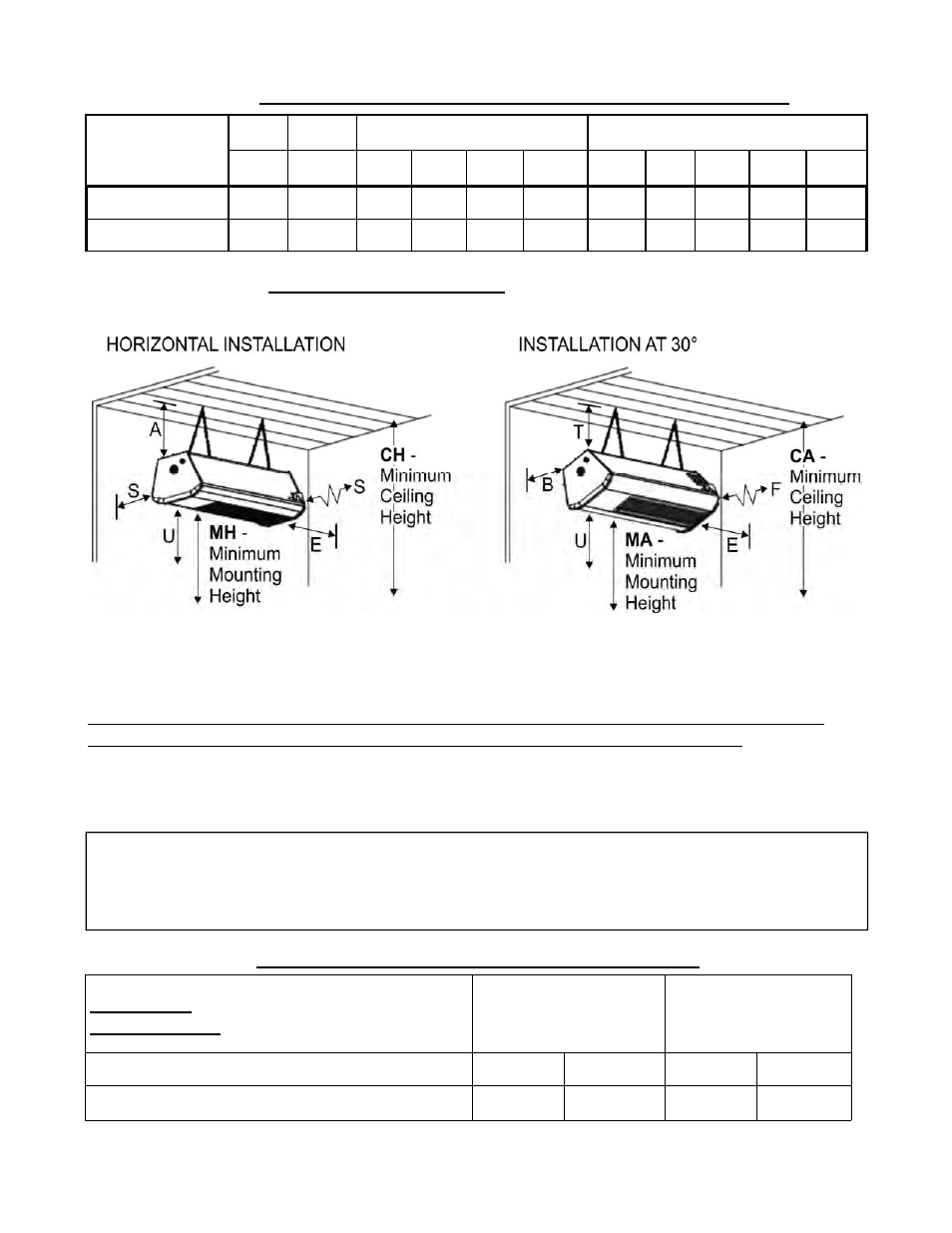

Figure 3: INDOOR - MOUNTING CLEARANCES
MODEL NO
Ends HORIZONTAL 30° ANGLE
E A S T B F
2312 / IO 212 -N\L
4” 8” 10” 12.5” 2.5” 14”
2313 / IO 213 -N\L
6” 10.5” 14.5” 14.5” 2.5” 26”
MH
96”
102”
MA
96”
102”
CH
114”
123”
CA
120”
128”
Under
U
60”
60”
Table 4: INDOOR - SUGGESTED MOUNTING HEIGHT FOR COMFORT
MOUNTING
PARAMETERS ***
MODEL
2312 / IO 212
23,000 Btuh
MODEL
2313 / IO 213
35,000 Btuh
Mounting angle
Horizontal MAX. 30 0 Horizontal MAX. 30 0
Suggested height above deck/floor 9’ 0” 9’ 0” 10’ 0” 10’ 0”
NOTE: MOUNT HEATER AT MAXIMUM 30° ANGLE TO AVOID DAMAGE
