Schwank supremeSchwank IO-210 - Manual (Page 7)

2300 / IO 210 Manual
IM110107
RD: MAY 2014
R.L. 15A
7
MODEL NO
Ends HORIZONTAL UP TO MAXIMUM 30° ANGLE
E A S T B F
2312 / IO 212 -N\L 3” 5.5” 7” 9.5” 1” 9.5”
2313 / IO 213 -N\L 5” 7.5” 9” 9.5” 1.5” 21”
MH
96”
102”
MA
96”
102”
CH
112”
120”
CA
113”
121”
Table 1: OUTDOOR - MINIMUM MOUNTING & CLEARANCES TO COMBUSTIBLES
The clearance to combustible material represents the minimum distance that must be main-
tained between the outer heater surface and a nearby surface. In an OUTDOOR application
the stated clearance to combustibles represents a surface temperature of 117F° (65C°)
above ambient temperature.
It is the installer’s responsibility to ensure that building materials with a low heat tolerance
which may degrade at lower temperatures are protected to prevent degradation. Examples of
low heat tolerance materials include awnings, vinyl siding, fabrics, some plastics, filmy materi-
als, etc.

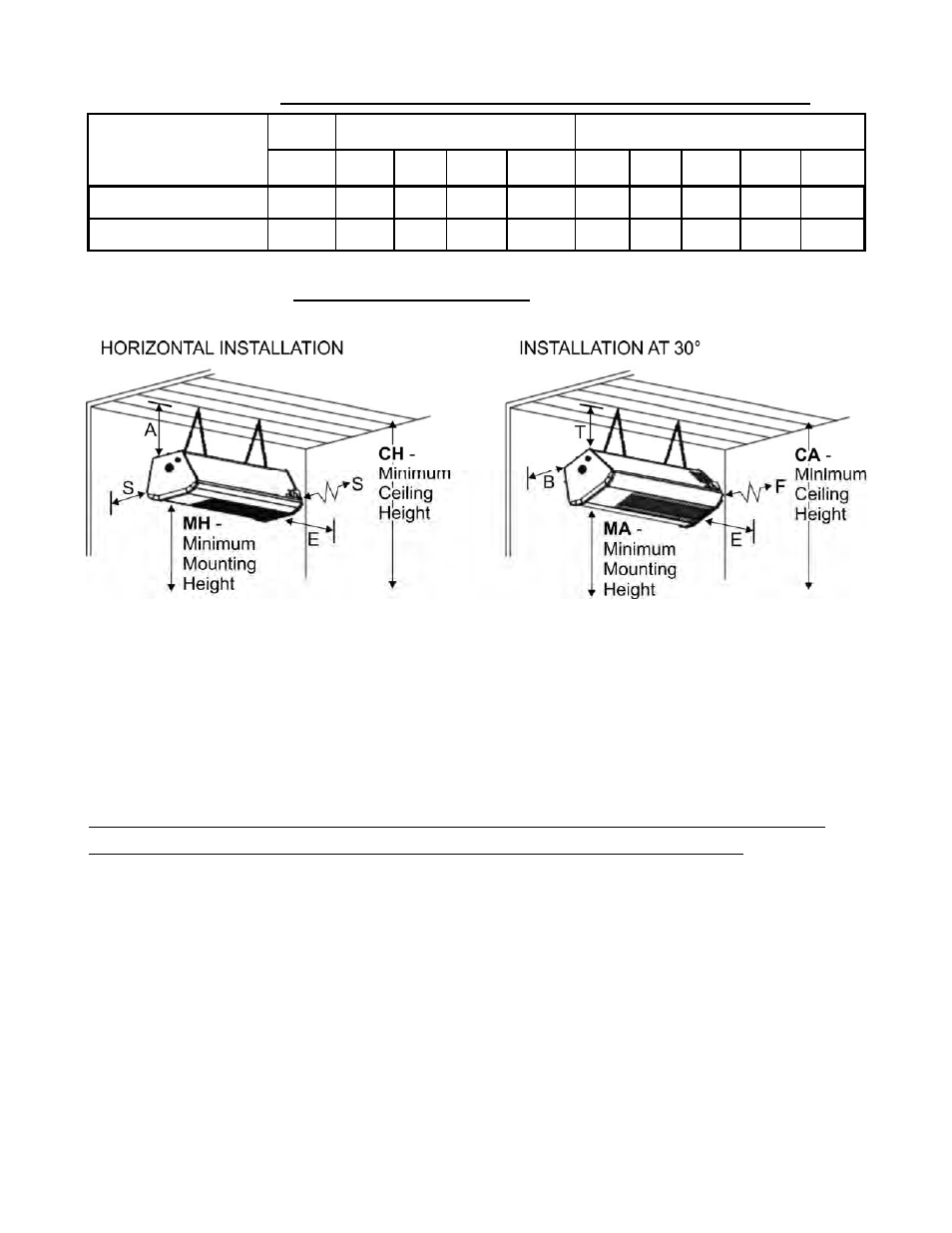

Figure 1: OUTDOOR - MOUNTING CLEARANCES
See Table 2 Next Page for “Suggested Mounting Height for Comfort”
NOTE: MOUNT HEATER AT MAXIMUM 30° ANGLE TO AVOID DAMAGE
