‎Chapter 2 Installation
PTS175 MV Advanced Analyzer 6
Chapter 2 Installation
This chapter discusses the following types of physical installations for the
PTS175:
 Mechanical Installation
 Electrical Installation
2.1 Site Requirements
 Environmental conditions: as specified in Technical
Specifications in Appendix A
 Electrical requirements: as specified in Technical
Specifications in Appendix A
See Technical Specifications in Appendix A for more details
2.2 Package Contents
The PTS175 package contains the following items:
 PTS175 – MV ANALYZER
 Technical Documentation CD
 Kit of Pole Sensors including:
 3 x PTS
 Optional accessories (depending on the options ordered, if any)
 3 x 55ft Cables
55ft
POLE TOP SENSOR KIT
1
2
3

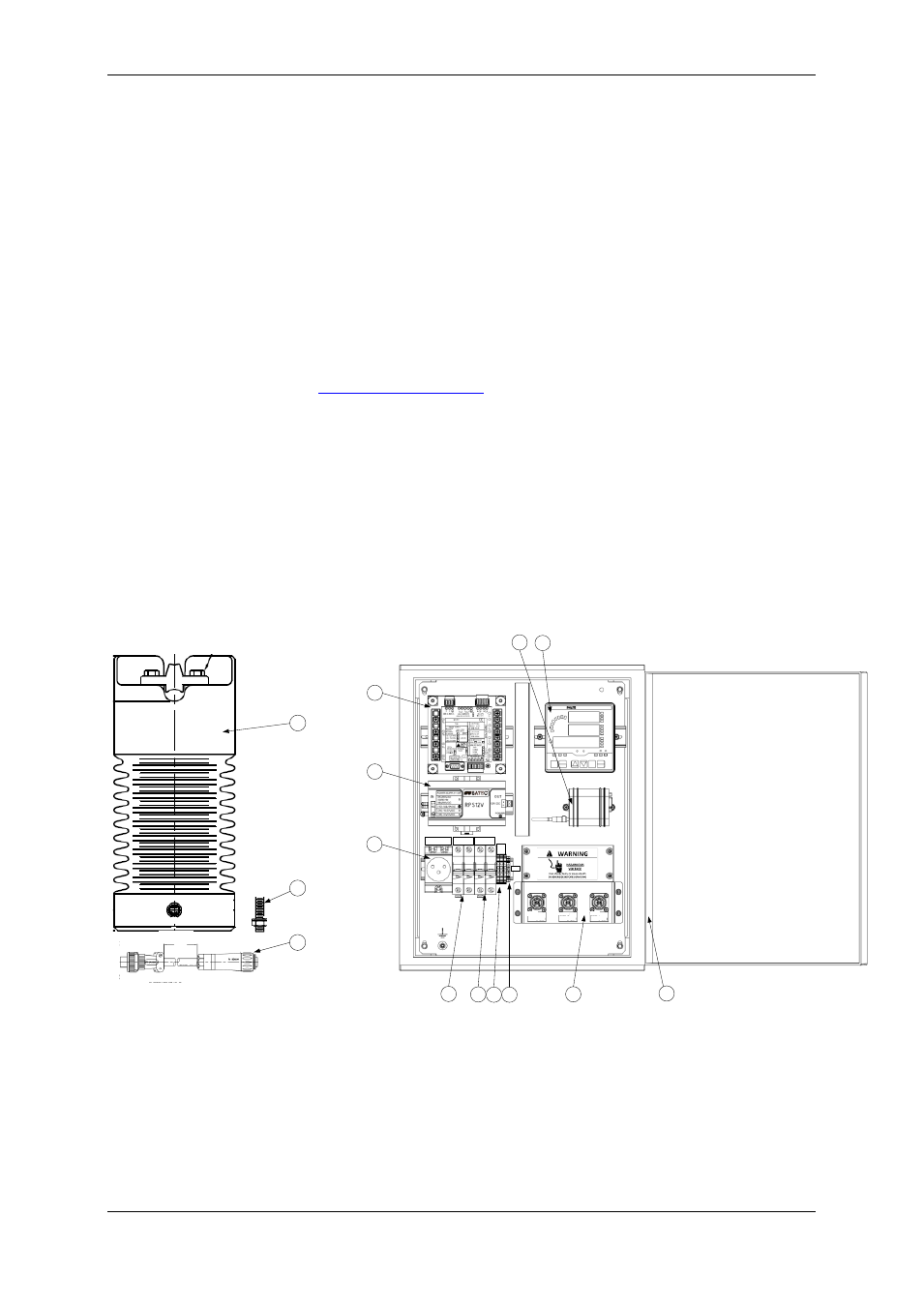

1. PTS (15, 25 or 35kV)
2. Stud
3. 55ft cable
GPRS MODEM POWER SUPPLY
AUX. INLET AC CB1 DC CB2
LINE 3 LIN E 3 LINE 2 LIN E 2 LINE 1 LIN E 1
+12V
DC
GND
1
2
3 4
5
6
7 8 9 10 11
1. RPM075 – PQ Analyzer
5. SURGE Prot. ASSY. – PTS input 9. 12VDC Input term.
2. AC/DC PS – RPS-ACDC 6. Aux. AC INLET for Laptop 10. GROUND term.
3. RDM175 - DISPLAY 7. AC input Circuit Breaker 11. PTS175 enclosure
4. GPRS MODEM + Ant. 8. DC input Circuit Breaker
