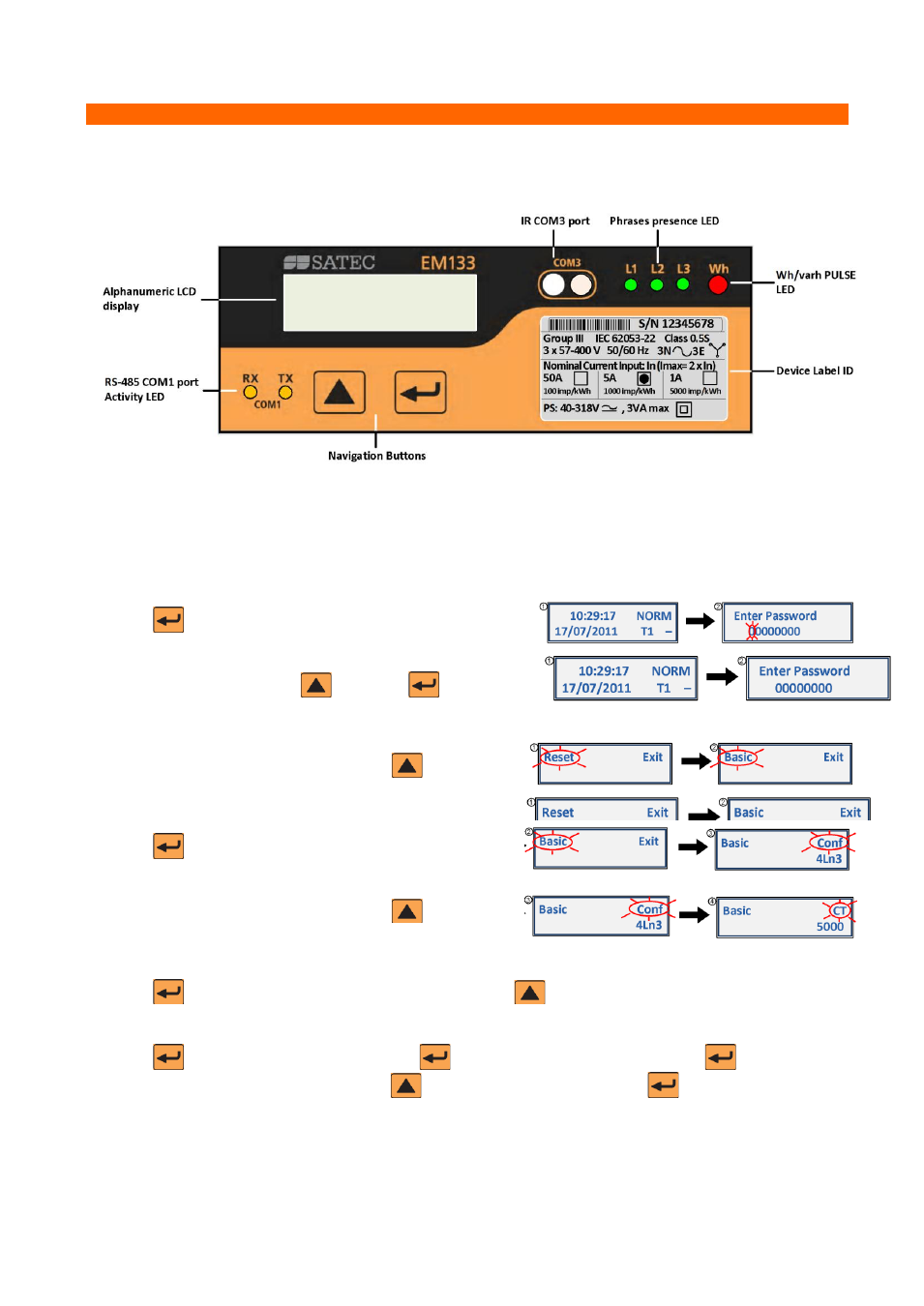

Basic Setup

All setups can be performed directly from the display panel or via communication ports using PAS communication
software, except for Communications and Display setups, which must be performed directly at the instrument panel.

To set the CT Primary current, perform the following steps:



Press

for 5sec, until password no. blinks:



Enter Password number using

, then press

for 2sec

then new display with blinking "Reset"



Navigate by pressing shortly (less than 1sec)

to move to Basic setup



Press

for 2sec, until "Conf" blinks:



Navigate by pressing shortly (less than 1sec)

to move to CT setup



Press

for 2sec, until "5000" blinks, then press shortly using

to the desired value



Press

for 2sec, until "CT" blinks, then press

for 2sec, until "Basic" blinks, then press

for

2sec, until "Reset" blinks, press shortly using

to move to blinking "Exit" and press

for 2sec to return

to initial screen
