S&S Cycle Air Cleaner Covers User Manual
Page 2
2
Kit Contents:
• Air Cleaner Cover
•
The safety of the motorcycle rider is dependent of proper installation of this product. If you are not certain of your capabilities or
do not have the correct tools for this installation, please consult a shop to have it done. Improper installation of this product could
result in injury or death to the rider.
Installation
Installing the S&S® Air Stream, Dished and Domed Air Cleaner Covers
1- Attach an S&S air cleaner cover to the stealth air cleaner kit by installing the 5/16" button head screw with 243 blue Loctite® applied to the
threads and torque to 10 ft.-lbs. as illustrated in Picture 1.
Installing the S&S Muscle Air Cleaner Cover for E&G Carburetors using S&S Stealth Air Cleaner Kit
1- This step should only be done if you are installing the S&S Muscle cover on an S&S E or G carburetor. Remove the lanyards from the supplied
gasket by squeezing the rivets on the small end with a pair of pliers as illustrated in Picture 2. This gasket will not be needed for the installation
on the E&G carburetors.
2- Remove the two flanged head screws from the filter top plate and the 5/16" button head screw as illustrated in Picture 3.

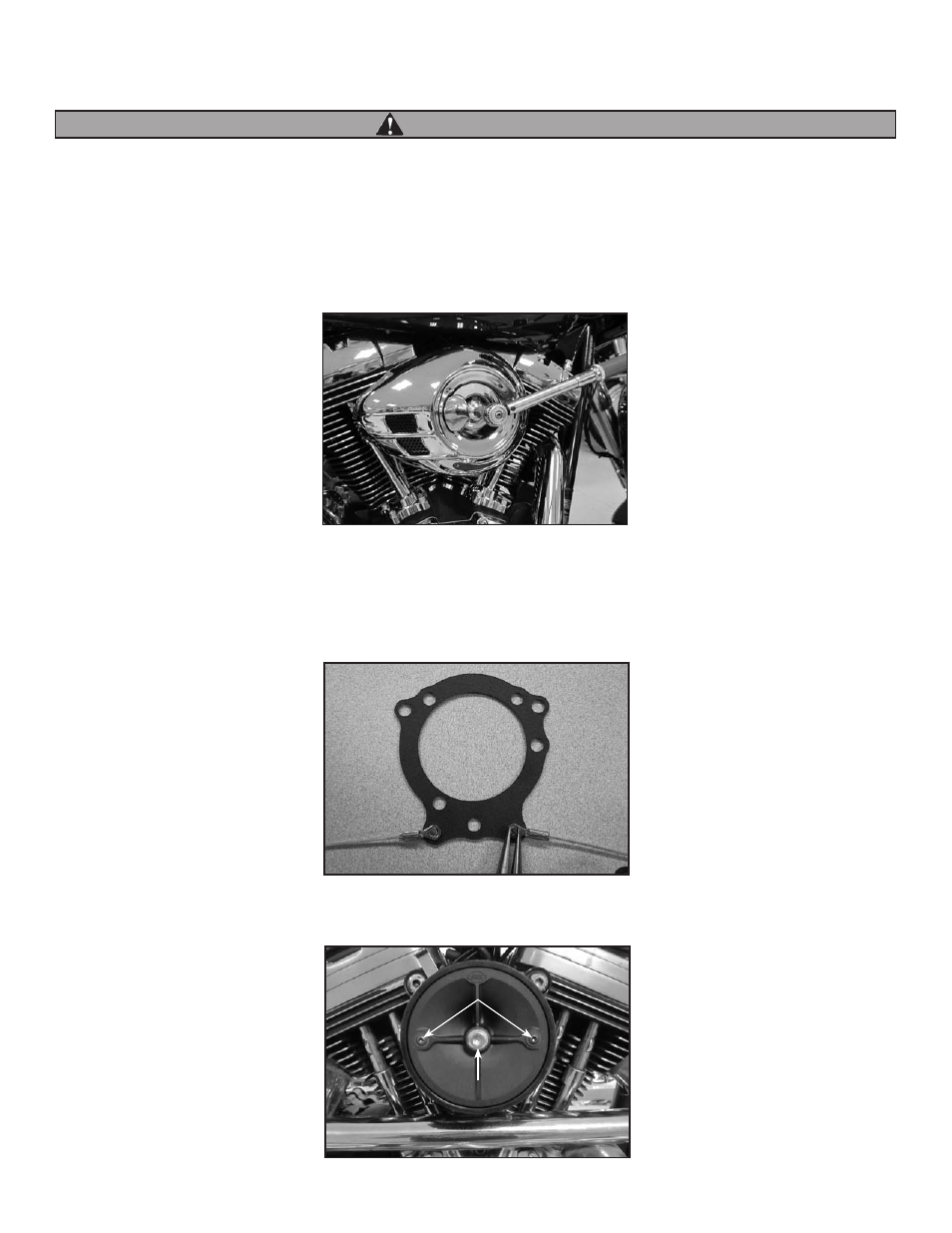

Picture 1
Picture 2
Picture 3
5/16" Button Head Screw
Flanged Head Screws
WARNING
