S&S Cycle Intake Kit, PN106-5012 For 2008 – Up Polaris Ranger RZR and RZRs User Manual
Page 6
6

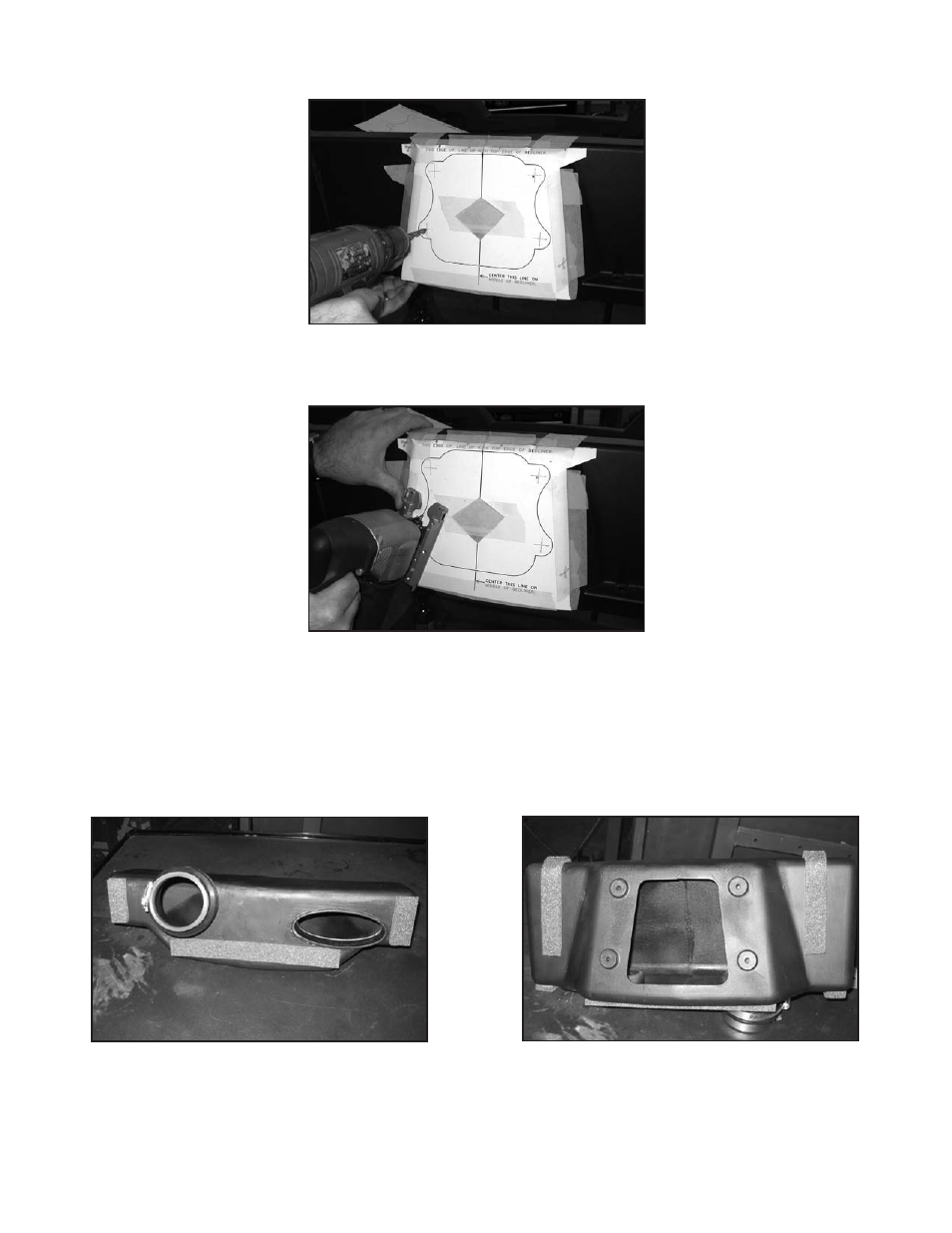

5- Drill hole in waste area of cutout to allow for a starting place for saber saw blade.
6- With a good fine tooth scrolling blade in the saw carefully cut out the access hole for the air box.
7- Remove pattern and tape. Deburr sawn edges of plastic.
INTAKE INSTALLATION:
1- Cut supplied tape strip into three 10” pieces and two 21/2” pieces.
2- Install foam tape on primary air box as shown in Pictures 16 and 17. Make sure tape fully covers the two mounting holes on the bottom of the
air box.
Picture 14
Picture 15
Picture 16
Picture 17
