S&S Cycle 49-State EPA Certified Engines User Manual
Page 4

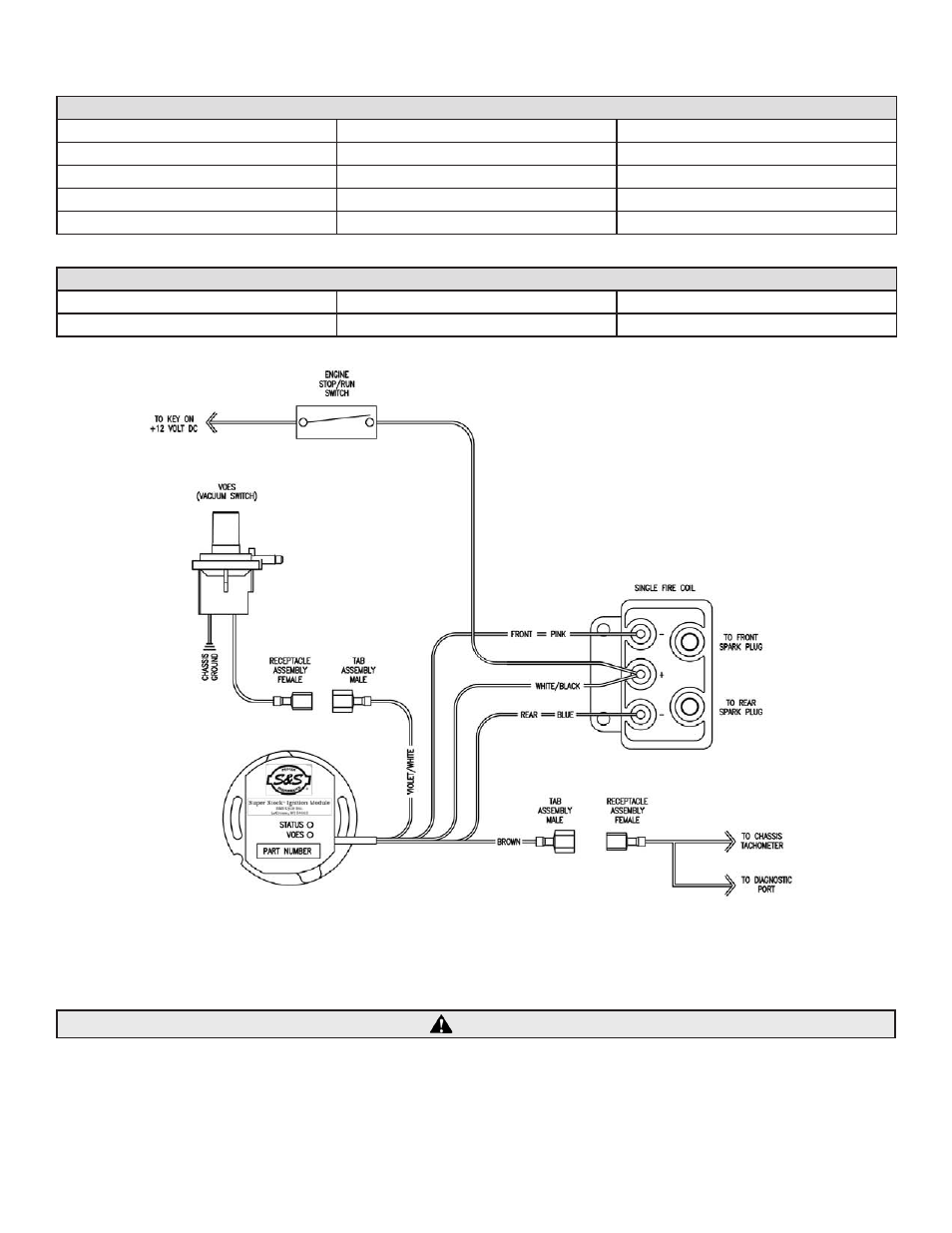

III. Make electrical connections according to following chart and wiring diagram.
Ignition Module
White/Black
Switched 12-volt power
Small ring terminal
Pink
Front cylinder on coil
Small ring terminal
Blue
Rear cylinder on coil
Small ring terminal
Violet/White
VOES
Tab assembly (male)
Brown
Tachometer/Diagnostic Port
Tab assembly (male)
VOES Switch
Black
Ground
Large ring terminal
Black
Ignition module
Receptacle assembly (female)
B- For engines equipped with IST ignition system follow installation instruction included with module.
3- Install Oil Lines
A- First, flush the oil tank and lines and install a new oil filter that has been filled with oil.
CAUTION
New oil tanks and lines must be flushed to remove any debris that could damage the engines oiling system.
B- Connect oil lines following the diagram on the following page. Do not connect the oil feed line to the engine at this time.
