S&S Cycle Billet Aluminum Rocker Arm Kit for X-Wedge Engines User Manual
Page 5

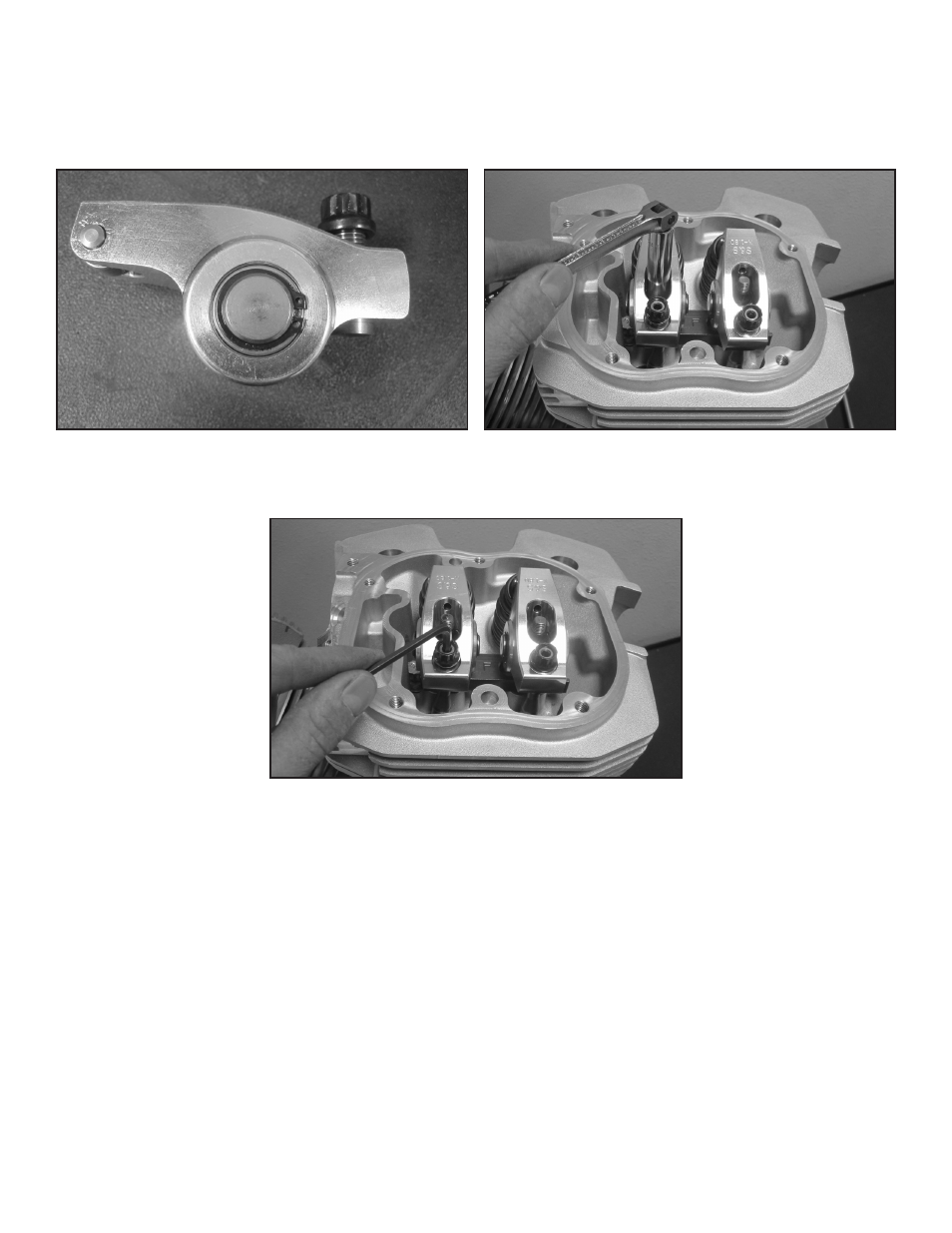

11. Install the adjuster screws into the rocker arms. Thread the adjuster screws all the way into the body until the adjuster cup end contacts the
rocker arm body. See Picture 8, below left.
12. Install the intake and exhaust rocker arms onto the studs, the flat portion of the rocker arm fulcrum should be pointing up and the curved
lower surface will sit against the pedestal. Make sure the pushrod end is under the adjusting screw.
13. Install the 5/16", 12 point nut to temporarily fasten down the rocker arms. See Picture 9, below right.
14. Tighten the adjusting screw to remove lash in the rocker arm. See Picture 10 below.
Picture 8
Picture 10
Picture 9
