S&S Cycle Billet Aluminum Rocker Arm Kit for X-Wedge Engines User Manual
Page 3

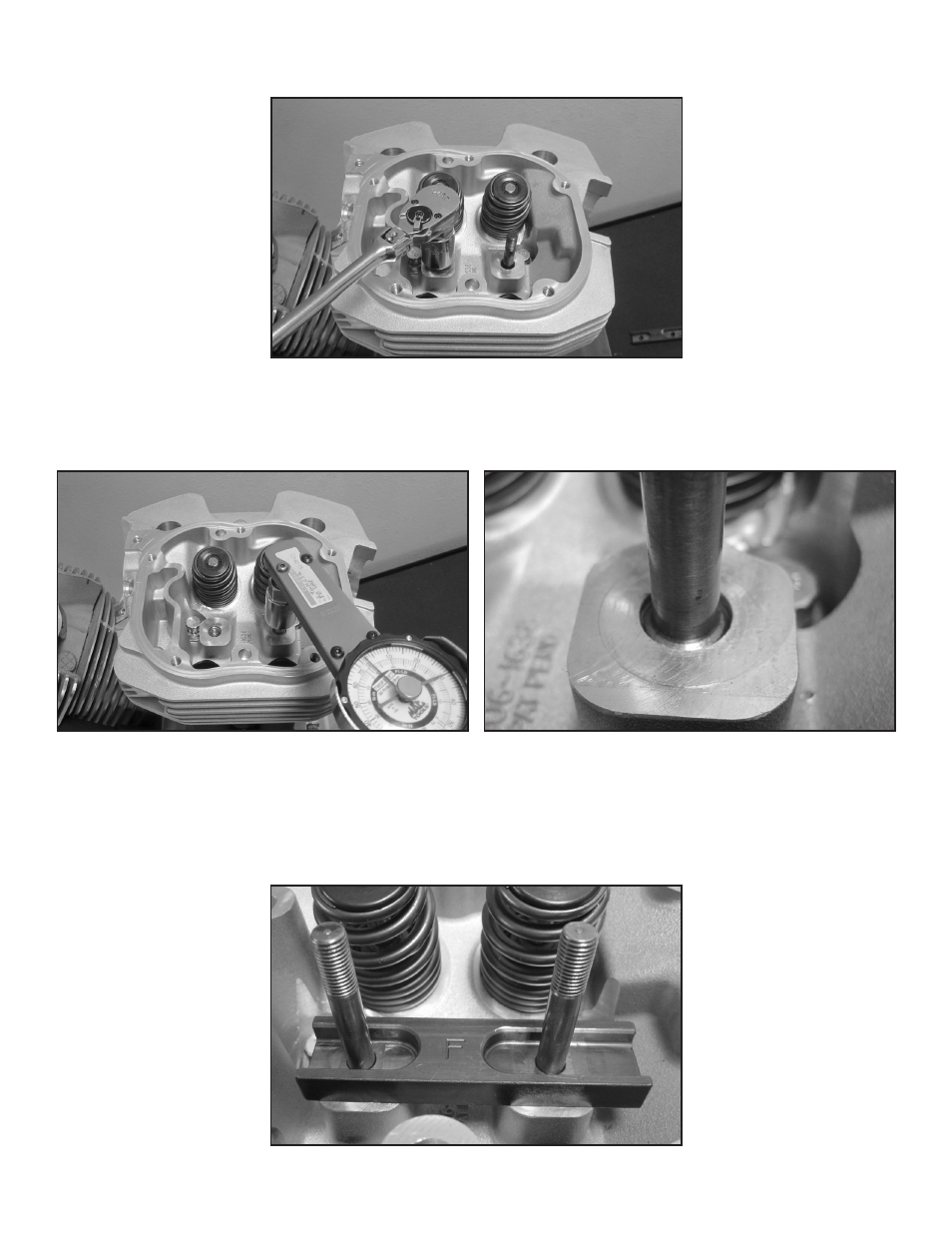

6. Using a suitable stud remover, remove both studs from the cylinder head. See Picture 3.
7. Apply Loctite® 262 to the 7/16" threads of the new studs and install using a suitable stud installer. Torque to 30 ft-lbs.See Picture 4, below
left. Make sure that there aren’t any of the 7/16" diameter threads showing above the surface of the rocker arm pad. See Picture 4a, below
right. This situation will cause the rocker arm alignment channel to not sit flat on the head.
8. Place the rocker arm alignment channel over the studs. Make sure it is sitting flat against the head. See Picture 5 below.
3
Picture 3
Picture 4
Picture 5
Picture 4a
