7- Using the included S&S tool P/N 53-0223, loosen the bearing retainer nuts from the trap door, approximately one turn. See Picture 3 and 4.
8- There are six socket head cap screws to be removed from the transmission trap door—two are 5/16” and four are ¼”. Remove them at this time.
9- Remove the transmission cassette as a complete assembly. This can be done by trap door puller or tapping on the end of the main shaft with
a soft-face hammer.
10- Remove the black bearing retainer nuts from the trap door using the tool in Picture 3.

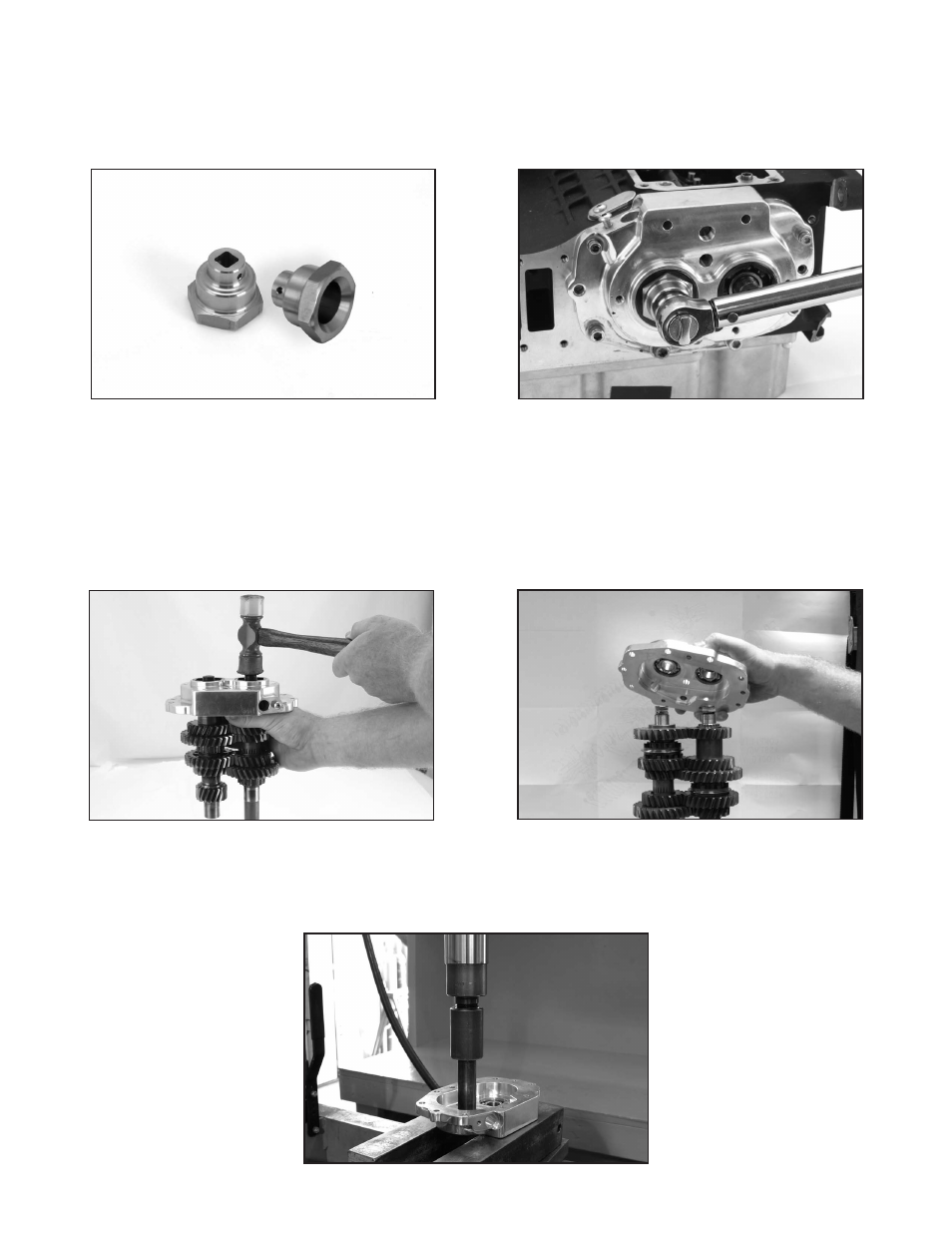

Picture 3 Picture 4
DISASSEMBLY
1- Remove the shift shaft and shift forks from the cassette assembly.
2- Now the 5-6 shift collar is removed by sliding it off.
3- There are two methods for removal of the shafts from the trap door. One is to support the trap door in a press and push the shafts out
together—this is the preferred method. Alternately, support the door and slowly and evenly tap the shafts out with a soft-faced hammer. See
Pictures 5 and 6.
Picture 5 Picture 6
Note: S&S mainshafts are fit size-on-size to the ID of the trap door bearings.
4- Remove the trapdoor bearings with a press. They may slide out without using a press. See Picture 7.
