RKI Instruments RI-215A User Manual
Page 11
RI-215A
Operator’s Manual
Mounting the RI-215A • 11
3. Use two screws to secure the base plate to the wall. Figure 2 below shows the location
of the screw holes in the base plate.
4. Reassemble the base plate and the front housing of the RI-215A in the reverse order as
described in step 2 above. Line up the bottom of the base plate with the front housing,
then carefully snap the base plate and front housing together.
3.08
3.08
1.23
2.37
.25
.17 Diameter
Front View
Mounting Hole Location
Back Side
Right Side View

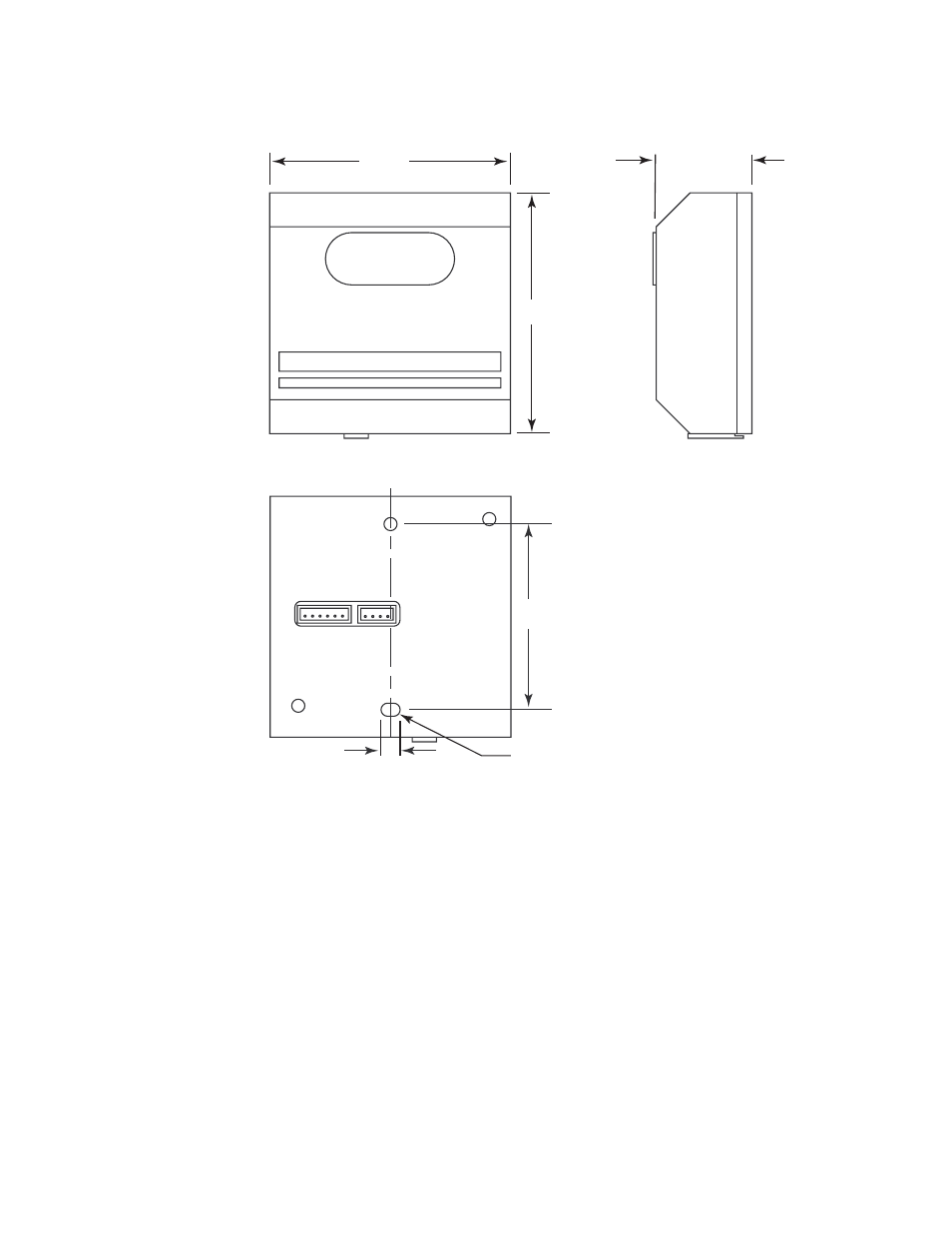

Figure 2: RI-215A Outline and Mounting Dimensions
