Amplitudes as funktion of loaded weight
Please refer to the following charts
Tolerances are

5% of the mass of the sieve stack
These charts are to be understood as aids in orientation
and are referenced to the rated voltage as indicated on
the data plate. Fluctuations in line voltage and devia-
tions from the rating will result in higher tolerances.

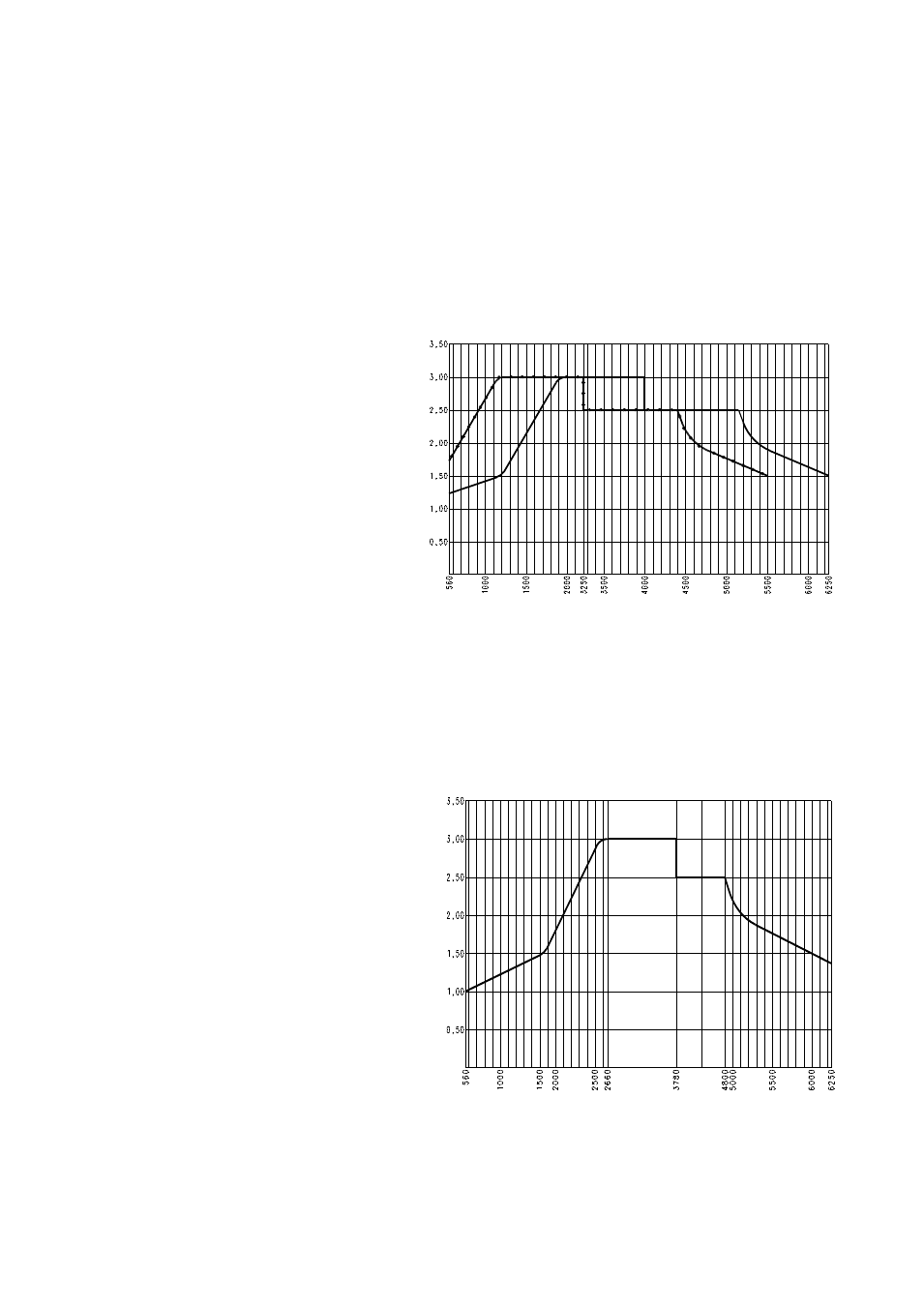

Chart for the AS200 digit
at 230 V, 50 Hz
Vibration amplitudes from 0 to 3.0 mm
Sieve stack masses = Sieve + collector bottom, without
product being handled from 560 to 6250 grams
grams
Solid line = AS200 with standard / economy sieve
clamping unit
Line with circles = AS200 with “comfort” sieve clamping unit
Chart for the AS200 basic
at 230 V, 5 0 Hz with clamping unit “economy“
Vibration amplitudes from 0 to 3.0 mm
Sieve stack masses = Sieve + collector bottom, without
product being handled from 560 to 6250 grams
grams
