Bigstuff3 GEN3 PRO SEFI DAE Option - User Manual

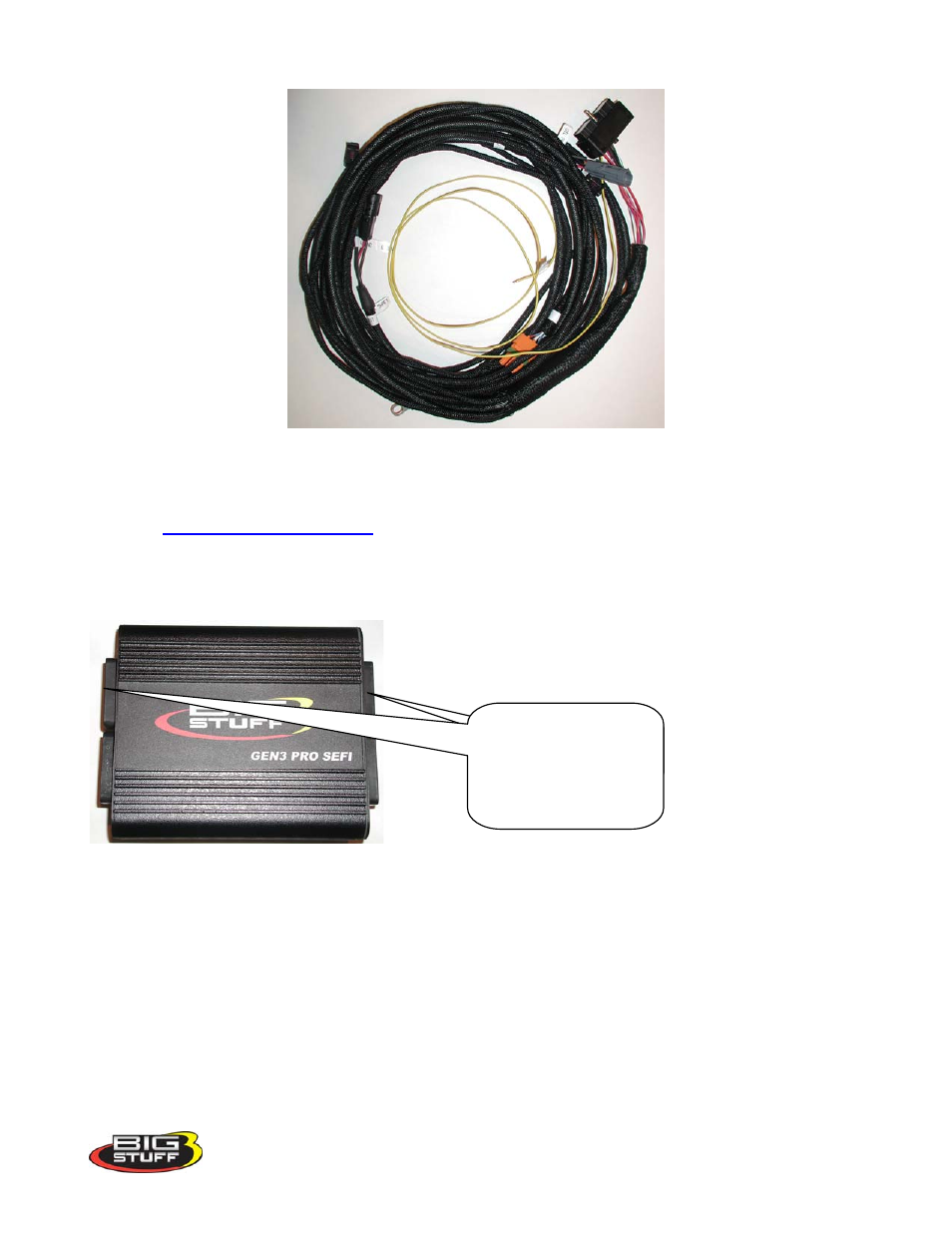

GEN3 ECU’s sold with the DAE control option will have two (2) header connectors one at each end of
the ECU (vs. one header connector for the fuel and spark only ECU’s).
It is essential that the DAE
main wire harness connector be installed in the correct header location on the ECU! Installing
the DAE
Harness_Main_Connector to the incorrect header location on the GEN3 ECU will
damage the ECU and void the warranty!! The header connector at one end of the GEN3 ECU will
be marked “DAE” to indicate the header location where the transmission wire harness must be
connected to!
The header connector
will be marked ““DAE”
to indicate where to
connect the DAE harness
to.
DAE System Installation Overview
Hyperlinks (underlined, blue wording) in the column titled “Further Details” below were included to
further assist with the DAE wire harness installation. Left clicking the PC’s mouse on the hyperlink
will immediately link to a photo of the connector along with additional installation information.
