Bunn TITAN SINGLE 2 - Manual (Page 9)

16
TITAN
SINGLE
ITEM PART NO. QTY. DESCRIPTION
17
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
1 29075.0002 1 Faucet Assy (Includes items 2 thru 8)
2 02861.0003 1 Handle, Faucet
3 02854.0000 1 Bonnet, Faucet
4 02595.0000 1 Spring, Faucet
5 02766.0000 1 Seat Cup, Faucet
6 02856.0009* 1 Body, Faucet (Not available order item 1)
7 13054.0000 1 Stem, Faucet
8 02858.0000 1 Pin, Spring .125" Dia. x .50"
9 02594.0000 1 Faucet Stem W/Pin (Includes items 7 & 8)
10 12422.0001 2 Clamp, Hose .59"/.66" I.D.
11 28526.0032* 1 Tube, Silicone .313" I.D. x .562" O.D. x 40.0" (Order item17)
12 29264.0000 1 Nut, Faucet Retaining
13 01544.0000 1 Washer, .50" I.D. x .75" O.D.
14 39827.0001 1 Plate, Faucet Mounting
01315.0000 4 Screw, Truss Head #8-32 x .375"
15 00619.0013 1 Plug, Hole 1.25" Dia.
16 28706.0002 - Faucet Kit (Includes items 2,4 ,5 ,8 & 9)
17 28526.1002 - Tube, Silicone .313" I.D. x .562" O.D. x 60.0" (Not Illustrated)

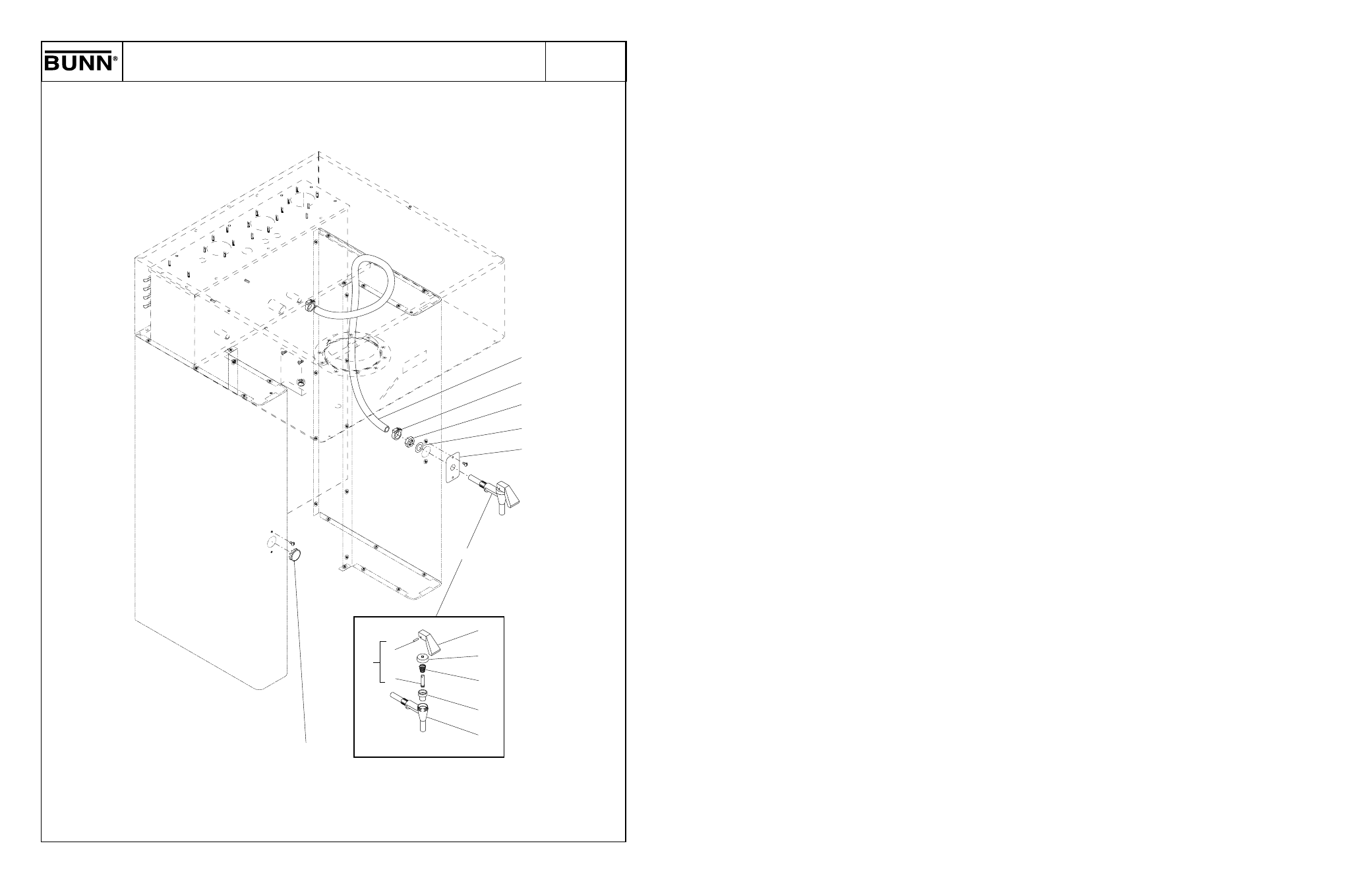

FAUCET
P3881
2
3
4
5
6
8
7
9
1
FAUCET
11
10
12
13
14
15
40887.1 072710 40887.1 072710
