12
TITAN
SINGLE
ITEM PART NO. QTY. DESCRIPTION
13
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

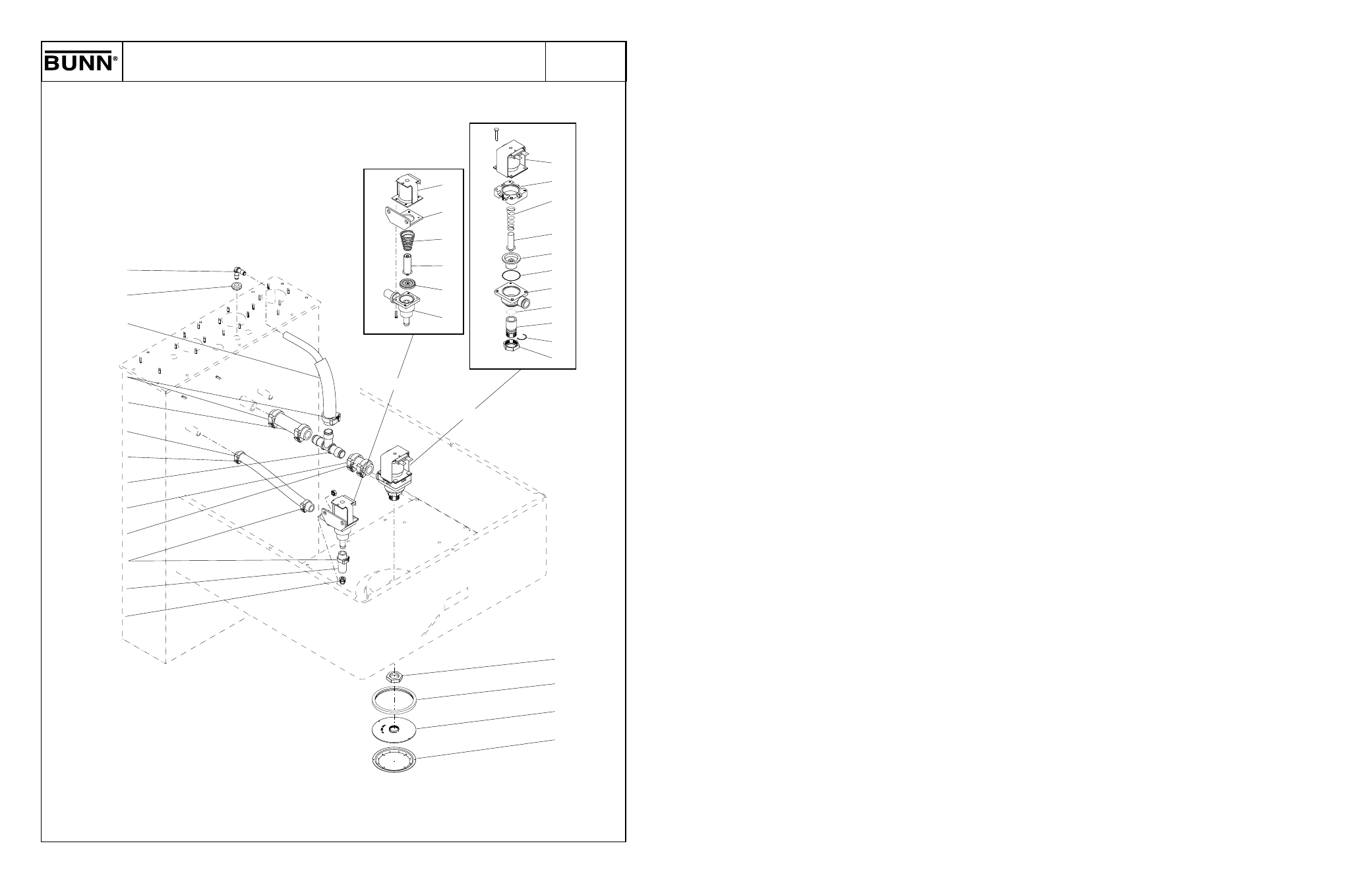

SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD
SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD
1 34801.0001 1 Fitting, Bypass Restrictor
2 32591.0003* 1 Tube, Silicone .50" I.D. x .75" O.D. x 1.10" (Order item 36)
3 12422.0009 2 Clamp, Hose .71" x .80" I.D.
4 35052.0004* 1 Tube, Silicone .75" I.D. x 1.0" O.D. x2.0" (Order item 37)
5 12422.0008 5 Clamp, Hose .93"/1.10" I.D.
6 40349.0000 1 Tee, .75" Barb
7 32591.0018* 1 Tube, Silicone .50" I.D. x .75" O.D. x 7.50" (Order item 36)
8 12422.0009 1 Clamp, Hose .71"/.80" I.D.
9 35052.0005* 1 Tube, Silicone .75" I.D. x 1.0" O.D. x4.5" (Order item 37)
10 40350.0000 1 Tube Assy, Vent
11 02536.0000 1 Grommet .375" I.D.
12 40348.0000 1 Elbow, .375" Barb.
13 27370.0003 1 Valve Assy, Bypass 120V (Includes items 14 thru 19)
27370.0005 2 Valve Assy, Bypass 240V (Includes items 14 thru 19)
00970.0000 2 Nut, Keps #8 - 32
14 - - - - - - - - 1 Coil Assy, Bypass Valve (Not available order item 13)
15 - - - - - - - - 1 Bracket, Mounting (Not available order item 13)
16 - - - - - - - - 1 Spring (Not available order item 38)
17 - - - - - - - - 1 Plunger (Not available order item 38)
18 23255.0000 1 Diaphragm
19 - - - - - - - - 1 Body (Not available order item 13)
20 39978.0000 1 Valve Assy, Sprayhead 120V (Includes items 21 thru 31)
39978.0001 2 Valve Assy, Sprayhead 240V (Includes items 21 thru 31)
21 40206.0004 1 Coil Assy, Valve 120V
40181.0001 1 Coil Assy, Valve 240V
40186.0000 4 Screw, #8 - 32 x 1.0"
22 39925.0000 1 Spacer, Dispense Valve
23 40206.0002 1 Spring
24 40206.0003 1 Plunger
25 40206.0001 1 Diaphragm
26 40184.0000 1 O-Ring, 1.50" OD x 1.375" ID x .062"
27 - - - - - - - - 1 Body (Not available order item 20)
28 40182.0000 1 O-Ring
P3961
32
33
34
35
14
15
16
17
18
19
21
22
23
24
25
26
27
28
29
30
31
13
20
(continued)
12
11
10
5
9
8
7
6
5
4
3
2
1
40887.1 072710 40887.1 020812
