Bunn TITAN SINGLE 2 - Manual (Page 6)

10
TITAN
SINGLE
ITEM PART NO. QTY. DESCRIPTION
11
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
1 39536.0000 1 Bracket, Solenoid Mounting
02308.0000 2 Screw, Pan Head #8 - 32 x .375"
2 34768.0001 2 Elbow, Male .375" Flare x .125" MPT
3 32359.0000 4 Gasket, .375" Flare Copper
4 41468.0000 1 Tube Assembly, Solenoid to Tank .38" O.D.
5 40040.0000 1 Fitting, .38" MFLR x .50"MNPT
6 40171.0000 1 Tube Assy, Bulkhead to Solenoid
7 40507.0001 1 Solenoid Valve Assy, 120V (Includes item 2)
40507.0003 1 Solenoid Valve Assy, 240V (Includes item 2)
01315.0000 2 Screw, Truss Head #8 - 32 x .375"
8 12757.0000 1 Nut, Hex .625" - 20
9 01514.0000 1 Lockwasher, Internal Tooth .625" I.D.
10 12756.0000 1 Bulkhead Fitting .375" Flare
11 00310.0008 1 Tube Assembly, Bulkhead to Supply
12 36081.0000 1 Union .375" Male Flare
13 12919.0001 1 Cap (For shipping purposes only)
14 00929.0001 1 Nut/Sleeve, Compression .38" Tube
15 41260.0000 1 Tube Assy
16 40832.0000 1 Mini Rester
17 40892.0000 1 Fitting, 90° FLR x .50" NPT
18 41339.0000 1 Tube Assy, Check Valve to Arrester
19 40831.0000 1 Check Valve
20 40809.0000 1 Fitting, Compression .38" x .50M
21 41498.0001 1 Tube Assembly, Bulkhead to Check Valve

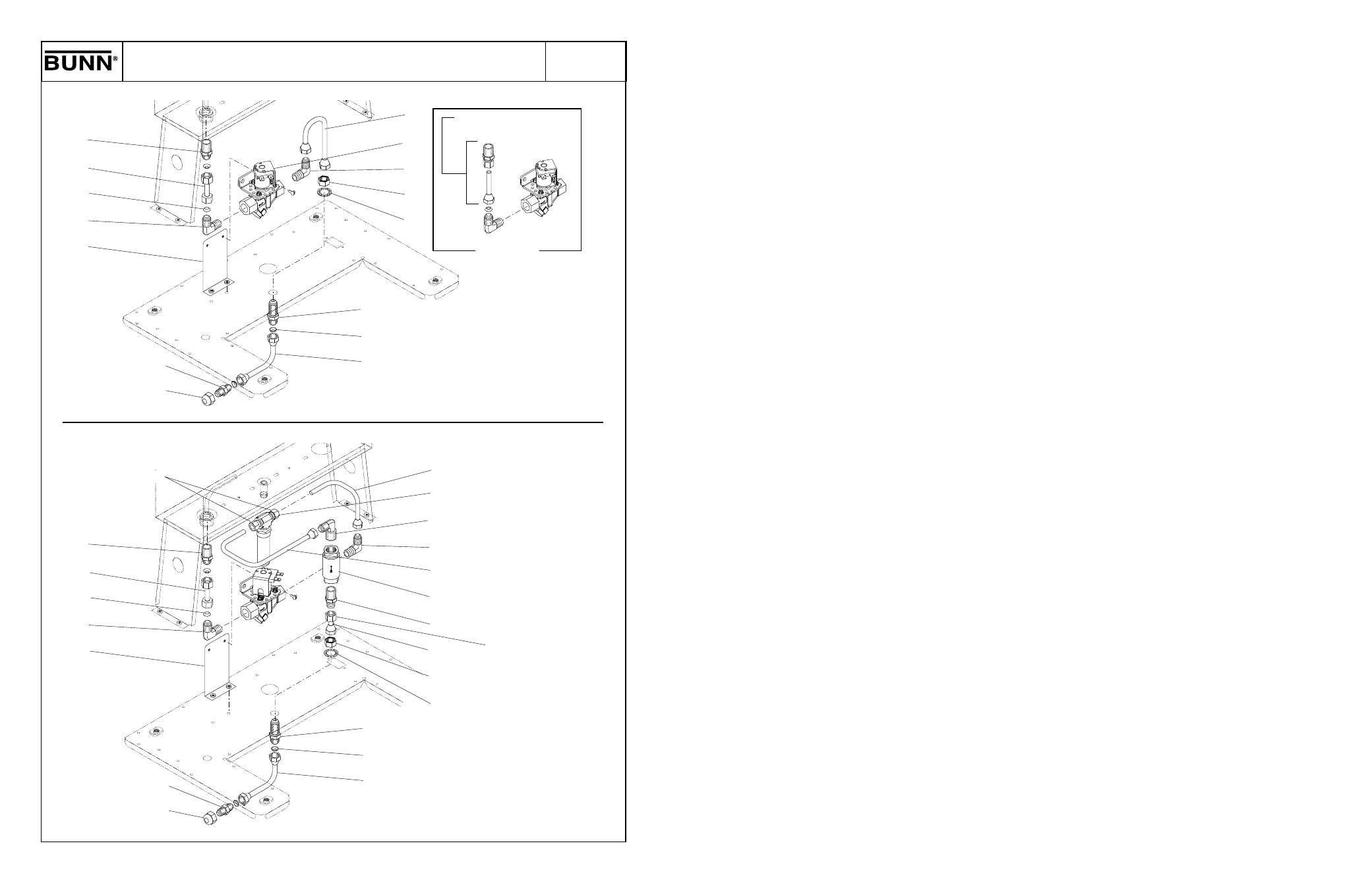

WATER INLET VALVE & LINES
WATER INLET VALVE & LINES
P3960
5
4
3
2
1
6
7
2
8
9
120/208 & 120/240 Volt Models
230/400 Volt Models
10
3
11
5
4
3
2
1
12
13
12
13
18
16
17
2
15
19
20-14
21
8
9
Not available order
items 3, 4 & 5
Early Models
Torque to 150 in. lbs.
Torque to 20 in. lbs.
40887.1 013112 40887.1 013112
10
3
11
