TITAN

SINGLE

ITEM

PART NO.

QTY.

DESCRIPTION

15

* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.

29

39546.0000

1

Fitting, Sprayhead Valve

30

40183.0000

1

C-Ring, Dispense Valve

31

- - - - - - - -

1

Nut, Fitting Retaining (Not available order item 20)

32

00957.0001

1

Nut, Hex .75" - 16

33

34868.0000

1

Seal, Sprayhead

34

35070.0002

1

Sprayhead Back

35

34867.0004

1

Sprayhead

NOTE: The following parts are not illustrated

36

32591.1001

1

Tube, Silicone .50" I.D. x .75" O.D. x 12.0"

32591.1002

1

Tube, Silicone .50" I.D. x .75" O.D. x 36.0"

37

35052.1000

1

Tube, Silicone .75" I.D. x 1.0" O.D. x 12.0"

38

11517.0008

-

Solenoid Valve Repair Kit, Bypass (Includes one each of spring, plunger

and

diaphragm)

39

40206.0000

-

Solenoid Valve Repair Kit, Sprayhead (Includes items 23, 24, 25, 26, 28, 29 and 30)

40

35308.1008

-

Sprayhead Assy (Includes one each of items 33, 34 and 35)

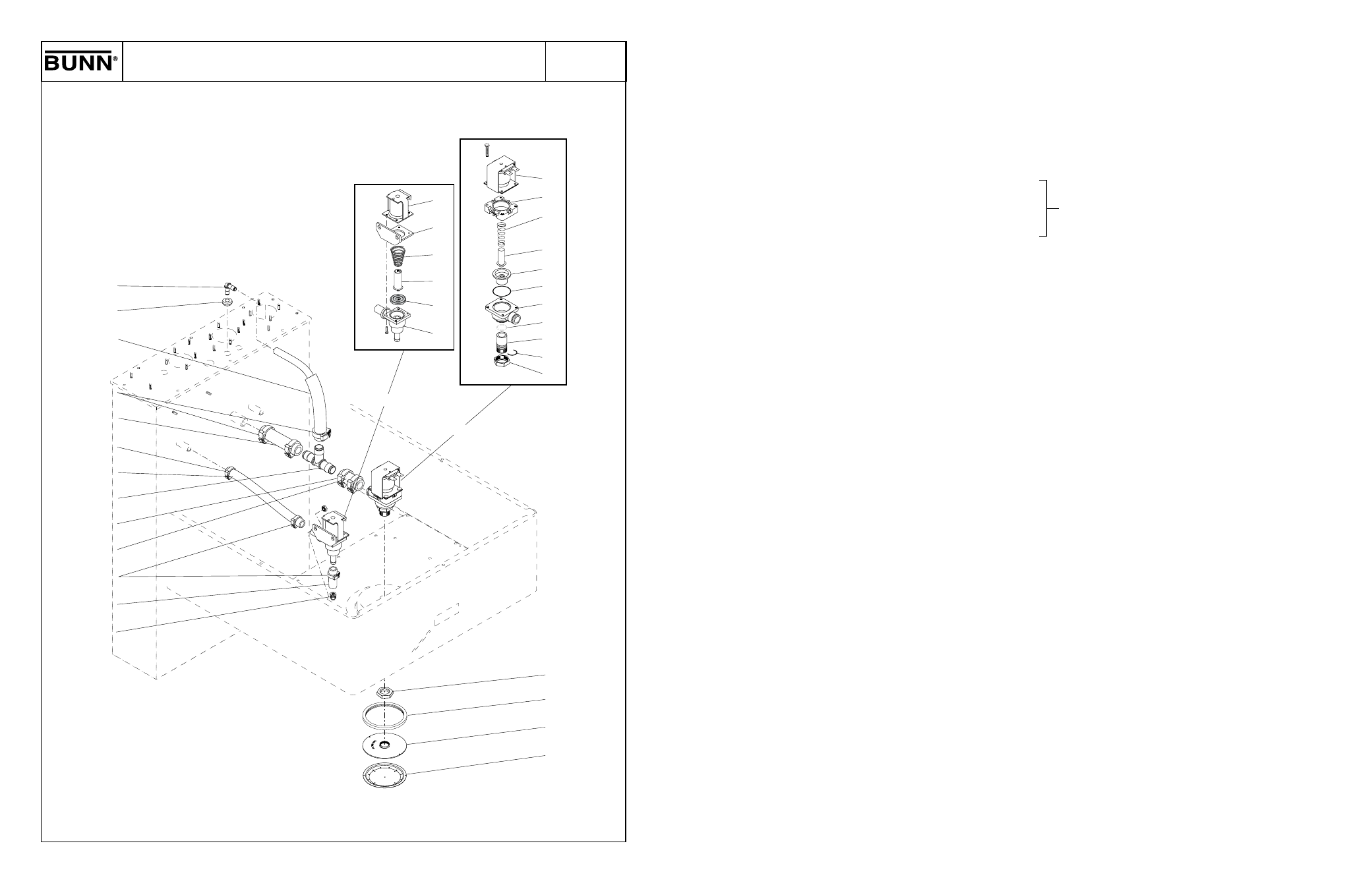

SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD

SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD

Refer to item 40

P3961

32

33

34

35

14

15

16

17

18

19

21
22
23

24
25
26
27
28
29
30
31

13

20

12

11

10

5

9

8

7

6

5

4

3

2

1

40887.1 072710

40887.1 061113
