18
TITAN
SINGLE

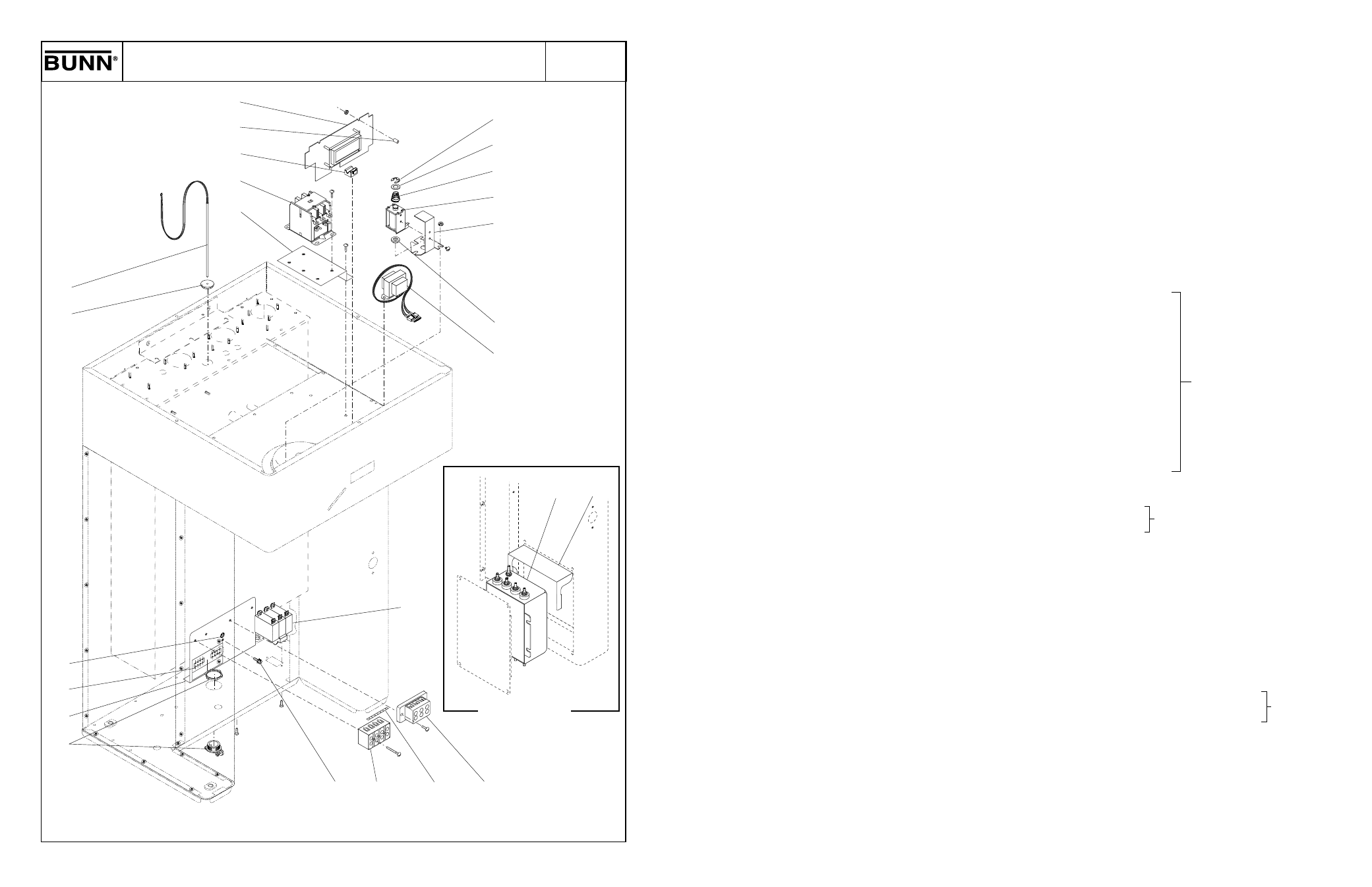

ITEM PART NO. QTY. DESCRIPTION
19
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
L1 L2 L3 N
FOR 3-P HAS E O PERA TIO N
CON NEC T IN PUT WI RIN G T O
L1, L2, L3 & N AS SHOW N.
BL K BL U RE D WH I
TER MIN AL
BLO CK TO MA CHI NE
FRO M P OW ER SOU RCE
TO MA CHI NE
FRO M P OW ER SOU RCE
L1 L2 L3 N BL K RE D BL U WH I
FOR SING LE PHA SE OPE RAT ION
MOV E B LU WIR E IN TO
TER MIN AL BLOC K W ITH BLA CK
WIR E, C ONNE CT INP UT WIRI NG
TO L1 & N AS SH OW N.
1 37789.1013 1 Circuit Board, Main control
00973.0000 2 Nut, Keps #6-32
2 01533.0002 2 Spacer
3 36366.0000 1 Mount, Circuit Board
4 38045.0001 1 Contactor, 3-pole 120V
38045.0000 1 Contactor, 3-pole 208/240V
01327.0000 4 Screw, Pan Head #10-32 x .375"
5 39535.0000 1 Bracket, Contactor Mounting
02308.0000 2 Screw, Pan Head #8-32 x .38"
6 34307.1001 1 Transformer, 10VA 120 to 12V
34307.1002 1 Transformer, 10VA 230 to 12V
00970.0000 2 Nut, Keps #8-32
7 39981.0000 1 Ring, Solenoid
8 - - - - - - - - 1 Washer, Nylon .44" ID x .68" OD
9 39982.0000 1 Spring, Solenoid
10 35955.0000 2 Coil, Solenoid, 120V (Includes items 7 thru 9)
35955.0001 2 Coil, Solenoid, 220V (Includes items 7 thru 9)
33613.0000 4 Screw, Truss Head #8-32 x .25"
01519.0000 4 Lockwasher, Split #8
11 38280.0000 1 Bracket, Solenoid
00970.0000 2 Nut, Keps #8-32
12 35953.0000 1 Guide, Pin
13 38894.0002 1 Switch, Main Power
01308.0002 2 Screw, Truss Head #6-32 x .25" (Switch Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .375"
01512.0000 4 Lockwasher, External Tooth #10
14 07038.0002 1 Terminal Block, 3 Pole BLACK/RED/BLUE (120/208 & 120/240V models)
01317.0000 2 Screw, Truss Head #8-32 x .50"
15 34588.0001 1 Decal, Terminal Block (L1-L2-L3-N) (1 additional used on 230/400V models)
16 21869.0000 1 Terminal Block, 4 Pole (One additional used on 230/400V models)
38030.0000 2 Screw, FilisterHead #8 - 32 x 1.25" (2 additional used on 230/400V models)
17 01309.0000 1 Ground Screw W/Terminal Washer #10-32 x .50"
18 01590.0001 1 Connector, Cable
05746.0001 1 Bushing, Strain Relief (230/400V models)
19 39538.1000 1 Bracket W/Decals, Terminal Block Mtg (120/208 & 120/240V models)
39538.1001 1 Bracket W/Decals, Terminal Block Mtg (230/400V models)
01317.0000 2 Screw, Truss Head #8-32 x .50"
01541.0000 2 Washer, Flat .219" ID x 1.0" OD
20 37947.0002 1 Decal, Field Wiring (120/208 & 120/240V models
37947.0003 1 Decal, Field Wiring (230/400V models)
21 00824.0002 1 Decal, Ground
ELECTRICAL CONTROLS
ELECTRICAL CONTROLS
P3963
(Continued)
Also see item 33
7
8
9
10
11
12
6
1
2
3
4
5
17 16 15 14
23
22
21
20
19
18
Terminals
230/400V Models Includes items
20 & 21
13
24 25
40887.1 072710 40887.1 012412
