Users Guide: iMFD User Guide
Version 1.0 Jan 1, 2008
www.plxdevices.com
(408)745-7591
22
When a warning triggers, a flashing red and white background will appear with “WARNING” on the top of
the screen. The parameter which is TRUE will also be displayed in the same format as 4 parameters
gauges. This allows you to see the actual value measured instantaneously.
*Please note if you are in the OBDII Sensors Pages, Intelligent Warning is NOT monitored. It is ONLY
monitored in Standard Gauges.

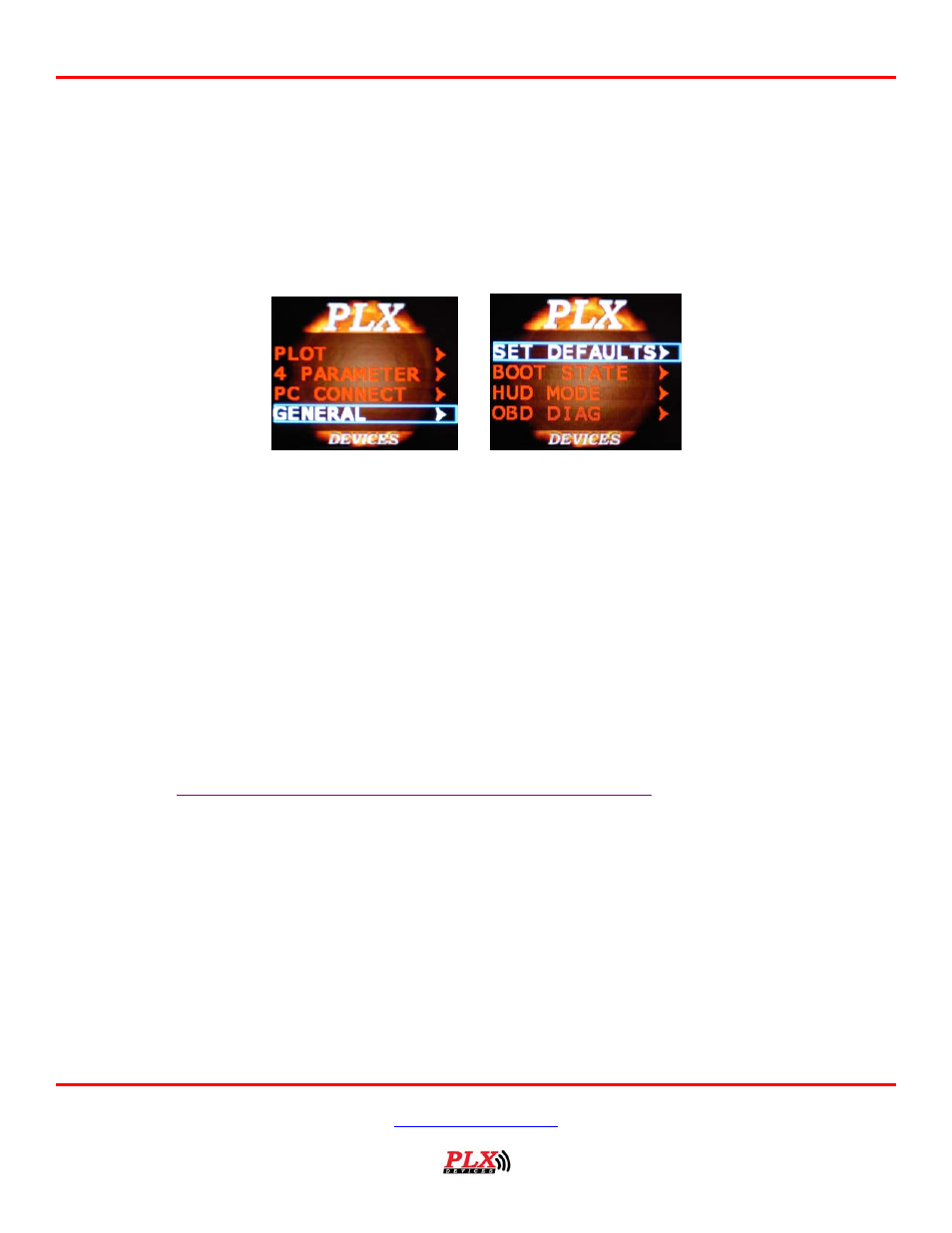

7.4 General Setup
7.4.1 Set Defaults
This option resets the DM-200 back to factory defaults. Custom wallpapers, gauges and sensor tables are
NOT affected.
7.4.2 Boot State
This option allows you to set which gauge show up when the device is powered on.
7.4.3 HUD Mode
This option allows you to “flip” the image for Heads Up Display Applications. Images viewed off of a mirror
or reflective surface can be seen in the correct orientation if this mode is turned “on.”
7.4.4 OBD Diag
In this mode, your DM-200 OBDII can be connected and controlled from the PC with powerful software
available here.
http://plxdevices.com/PLXSoftware/scantool_net113win.exe
7.4.5 Boot Screen
This option allows you to select from the 8 available wallpapers stored on your unit to display for 5
seconds during boot up.
7.5 Setup Sensors
See section 3.4
