side by side. Pressing “RIGHT” or “LEFT” toggles to peak and hold. Pressing the “DOWN” button toggles to
custom gauges. Pressing “UP” toggles to plot gauges (parameter 1).

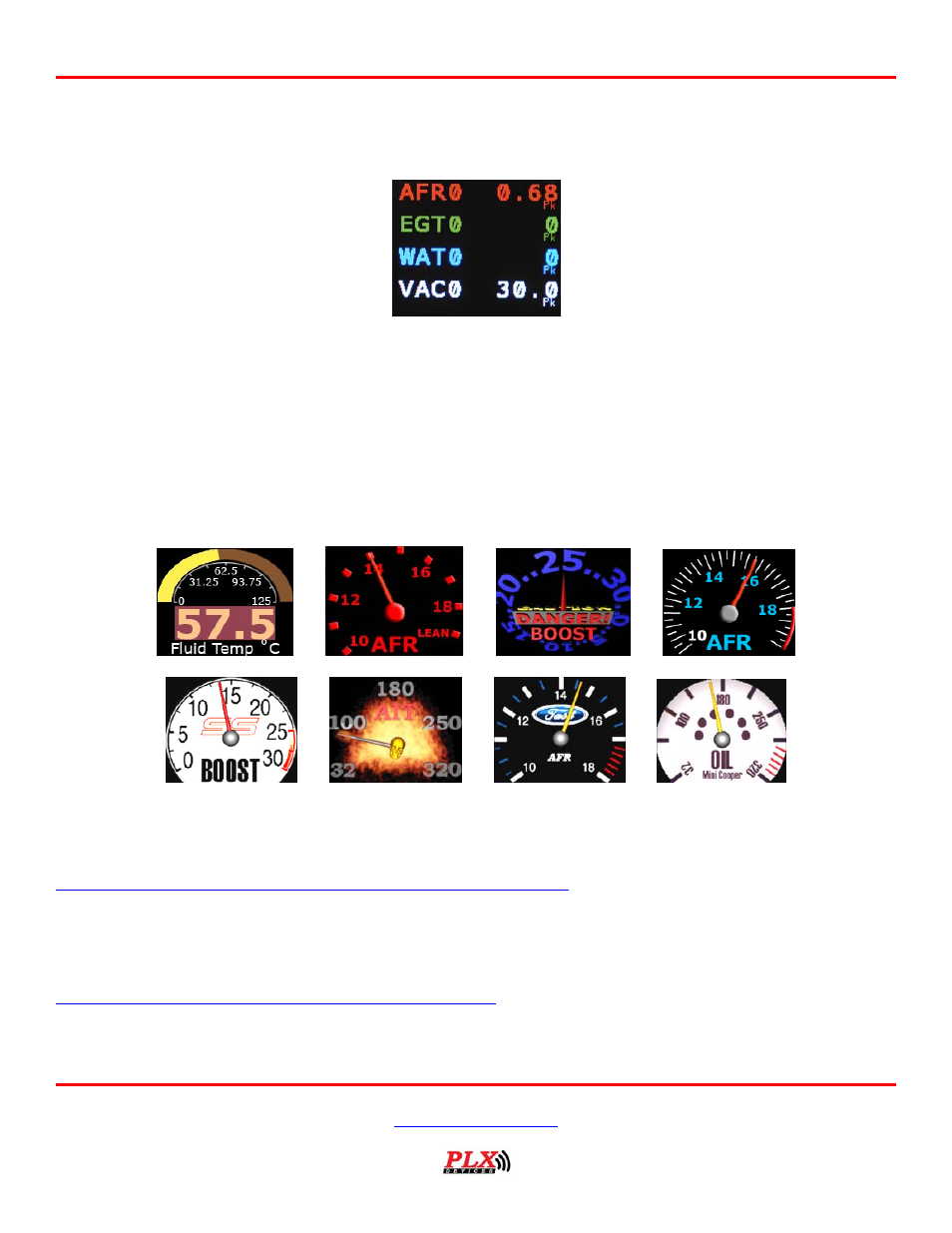

4.5 Peak and Hold
4 parameter peak and hold gauges represent sensor data by showing all 4 parameters peak values. The
DM-200 can be set to detect both minimum and maximum values. The peak and hold function works in
any gauge mode, and you are not limited to having to remain on this screen for the DM-200 to
“memorize” peak values. This is ideal in applications where you want to detect crucial parameters such as
RPM, maximum boost and temperatures. By pressing “RIGHT” or “LEFT” toggles to 4 parameter gauges.
Pressing the “DOWN” button toggles to custom gauges. Pressing “UP” resets the peak and hold values.
4.6 Custom Gauge
For standard users:
Please visit our online custom gauge database located here
You will need to install the USB device drivers and the DM-100/200 Utility before you can upload your
custom gauge. The files are located here
