Pavement Ends 43902 Rear Bumpers - Manual (Page 2)

43902 pg 2 0311 Rev. B
Parts List
Step One
R EMOVE THE O RIGINAL B UMPER
Use a socket wrench and an 18mm socket to remove
the two (2) bolts on each end of the bumper that attach
it to the frame.
Remove the 18mm bolts that attach the bumper to
the frame, one under each end of the bumper. Set the
bolts aside to be used to install the Rear Bumper.
Step Two
I NSTALL R EAR B UMPER

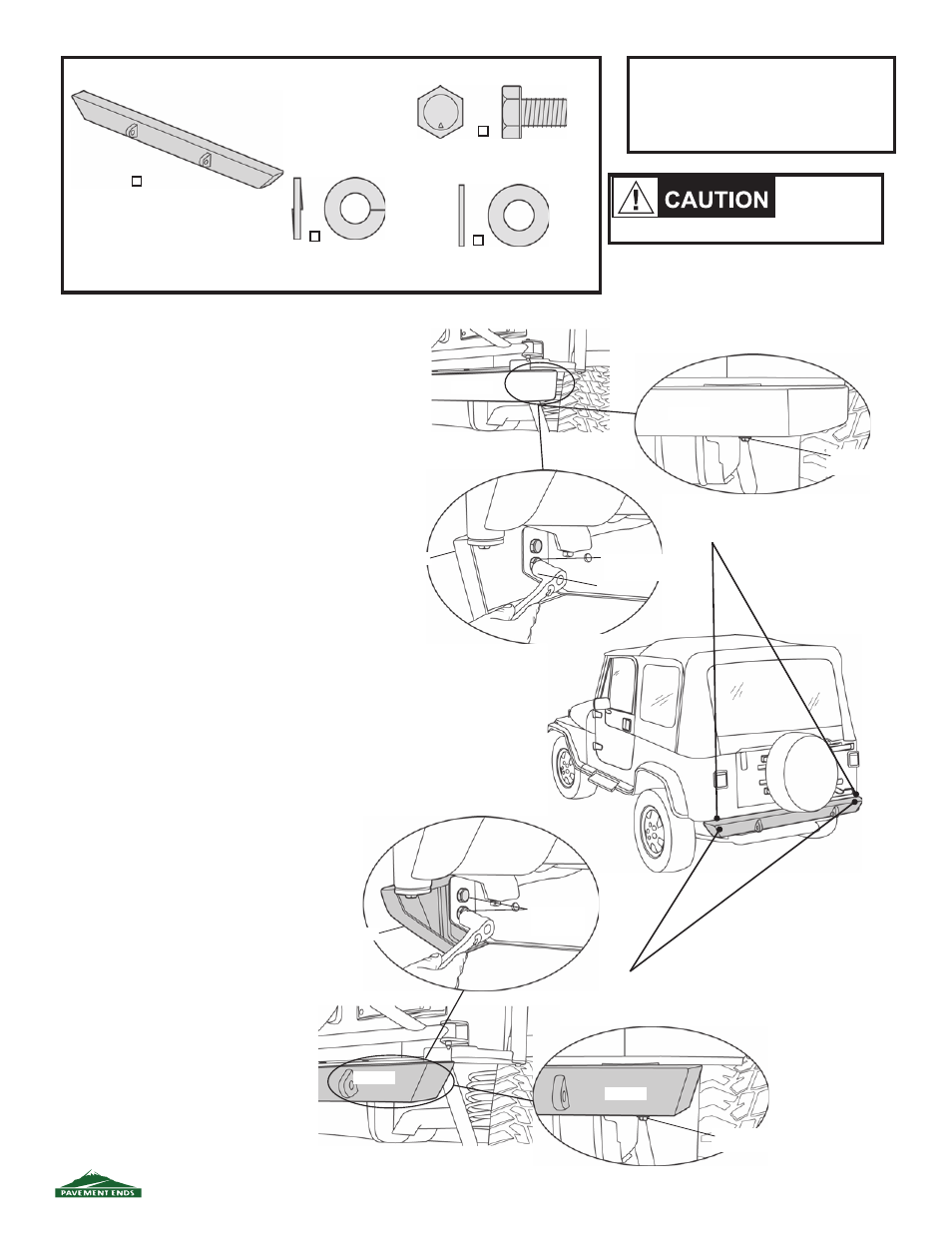

Place the Rear Bumper on the vehicle
and install two (2) Hex Bolts from the
parts kit on each side of the vehicle
for ’97 - ’06 Wranglers. For ’86 - ’96
Wranglers install four (4) Hex Bolts.
Then reinstall the 18mm Bolt under the
bumper on each side of the vehicle.
Tools Needed
Ratchet
18mm, 19mm and
5/16" Sockets
Hammer 18mm and 19mm
Wrenches
Safety Glasses
Hex Bolts, Part Number
414.45, Qty - 4
Washers, Part Number
414.47, Qty - 4
Lock Washers, Part
Number 414.46, Qty - 4
Rear Bumper, Part
Number 478.93, Qty - 1
Bumper
Fender
Flare
Remove 18mm
Bolts Bumper
Fender
Flare
View from
Wheel Well
Bumper
Remove
18mm Bolt
Two or more
people may be
required to lift the bumper safely.
M12 Hex
Bolts
Bumper
Fender
Flare
View from
Wheel Well
Bumper
Bumper
Reinstall the
18mm Bolt
