Pavement Ends 41829 Cargo Cover - Manual (Page 2)

41829 pg 2 1210 Rev. A

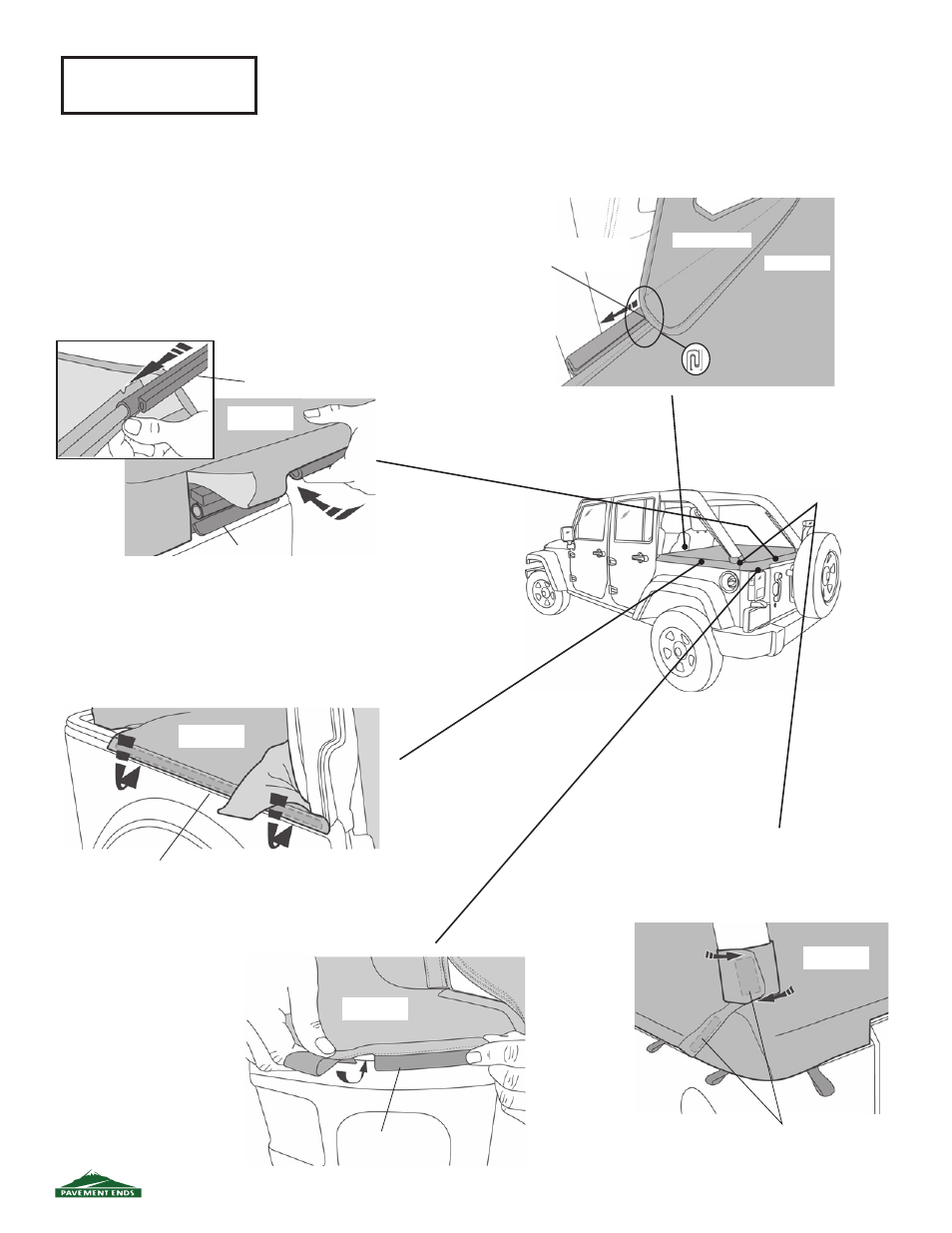

Parts List Step One
R EMOVE S OFT T OP
Remove the soft top and hardware. Set
the Tailgate Bar aside to be used to
install the Cargo Cover.
Step Three
I NSTALL T AILGATE B AR
Slide the "C" channel on the Tailgate Bar onto the
tubed strip sewn to the rear of the Cargo Cover.
Insert the Tailgate Bar into the mounts on each
side of the tailgate opening.
Step Two
S ECURE C ARGO C OVER WITH E XTENSION TO C AB C URTAIN -
O PTIONAL
If you have a Cab Curtain on your vehicle, slide the
plastic hook inside the bottom of the Cab Curtain
onto the plastic hook along the front of the Cargo
Cover.
Step Five
S ECURE R EAR C ORNERS
Roll the plastic strip on the
rear corners of the Cargo
Cover into the retainer
channel on the vehicle.
Cargo Cover Qty - 1
Step Four
S ECURE P LASTIC S TRIPS
Roll the plastic strip on each side of the
Cargo Cover into the retainer channel on
the vehicle.
Tailgate Bar
Tailgate Mount
Cargo Cover
Roll Plastic Strip
into Retainer
Cargo Cover
Roll Plastic into Rear
Corner Retainer
Cargo Cover
Step Six
S ECURE C OLLARS
Wrap the two (2) collars around the rear
sport bars, catching the rear seat belts,
and fasten the hook and loop strips to
each other.
Fasten Hook and Loop
Strips to each other
Sport
Bar
Cargo Cover
Cab Cover
Cargo Cover
Slide Cab Cover on to
Cargo Cover
