Step six, Step five, Step four – Pavement Ends 41805 Cargo Cover User Manual
Page 3

41805 pg 3
Rev. A 0303
Threading Strap
through Buckle
Step Six
Close the rear sport bar collars by pulling firmly on the fabric
and fastening the Hook and Loop Strips to each other.
Web Straps
Hook and Loop
Strips
Step Five
Slide the plastic strips, sewn into the rear corners
of the cover into the Corner Retainers. Smooth the
hemmed corner area of the Cargo Cover over the
retainer by sliding the strips towards the front and
rear. Make sure that the plastic strip fits up into the
retainer so that the collar fits properly.

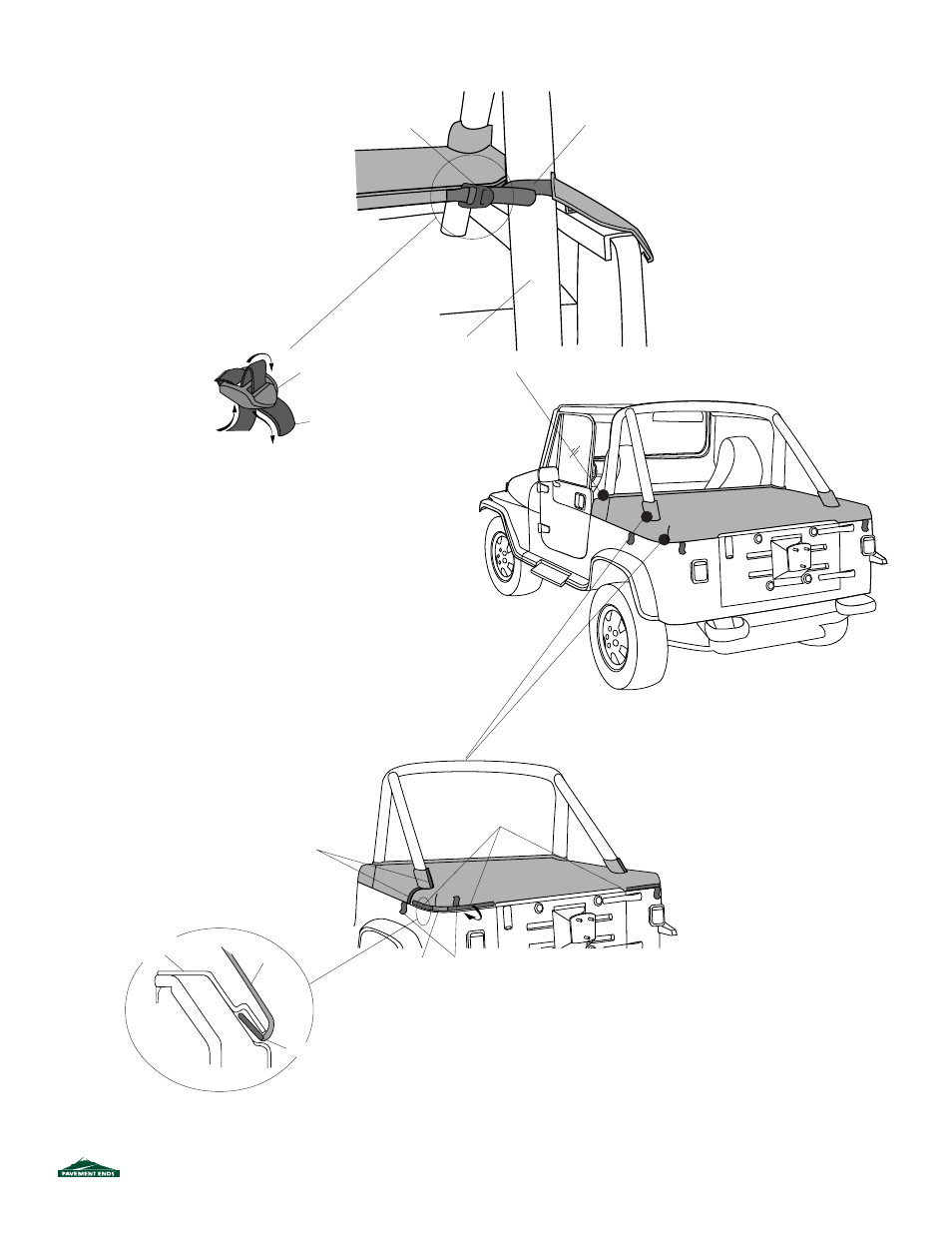

Step Four
Locate the web straps with buckles attached
on the front of the Cargo Cover. Wrap the
straps around the front sport bars and thread
the ends through the buckles.
Strap
Buckle
Buckle
Fabric
Plastic Strip
Rear Corner
Retainer
Front Sport Bar
Web Strap
Roll Plastic Strips into
Rear Corner Retainer
Hemmed
Corner
