Pavement Ends 41425 Cab Curtain - Manual (Page 2)

41425 pg 2 1110 Rev. A

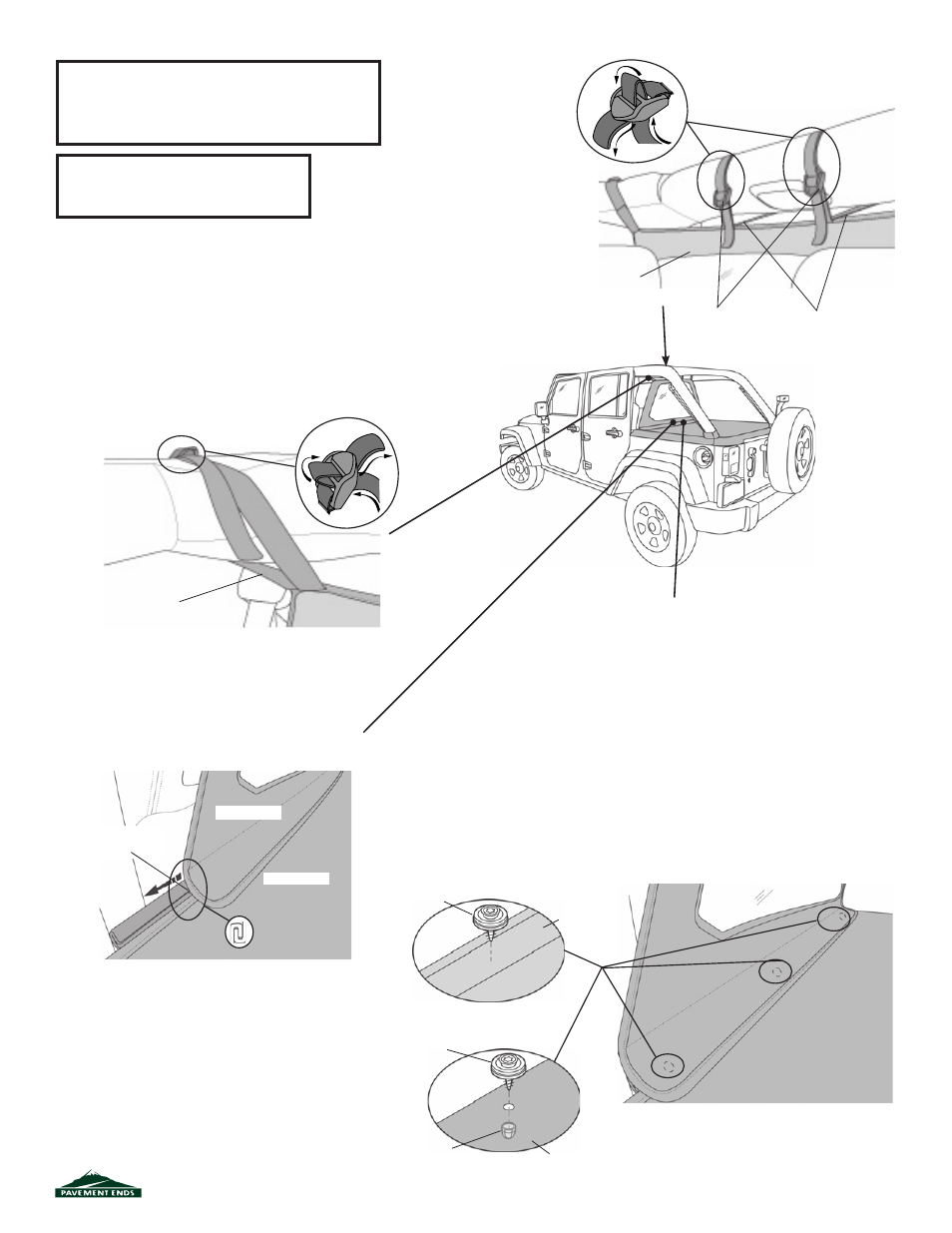

Step One
S ECURE C ENTER S TRAPS
Orient the Cab Curtain with
the window toward the top
and with the vinyl side out.
Start with the center straps
and thread the end of each
strap around the sport bar
and through each buckle.
Loosely tighten each strap
to hold the Cab Curtain in
position.
Step Two
S ECURE O UTSIDE S TRAPS
Wrap the outside straps around the sport bar
to the outside and thread the ends through the
buckles.
Tighten all the straps.
To secure the loose end of the straps, roll the
ends, if necessary, and fasten the hook and loop.
Step Four – Optional
I NSTALL S NAPS TO S ECURE C ARGO C OVER TO C AB C URTAIN
Pull the fl ap on the rear of the Cab Curtain out over the top of
the front edge of the Cargo Cover.
Rub chalk on the snaps on the Cab Curtain fl ap. Pull up on the
front reinforced edge of the Cargo Cover and press the snaps
against the Cargo Cover to mark the locations.
At the marked locations, push the sharp end of a Snap Head
Screw through the Cargo Cover from the backing side and
through both layers of fabric, to make a hole. Once the hole
is formed, pull the screw back out of the hole. Then push the
screw through the hole from the vinyl side so that the snap is
on top of the vinyl. Install an Acorn Locknut over the pointed
end of the Snap Head Screw.
Step Three – Optional
S ECURE C ARGO C OVER TO C AB C URTAIN
If you have a Cargo Cover on your vehicle, slide
the plastic hook inside the bottom of the Cab
Curtain onto the plastic hook along the front of the
Cargo Cover.
Parts List
Cab Curtain Qty - 1
Acorn Locknut, Part Number 427.11 Qty - 3
Snap Head Screw, Part Number 200.49 Qty - 3
Tools Needed
Phillips Screwdriver
Chalk Safety Glasses
Wrap Straps around
Sport Bar Thread Through
Buckles
Cab
Curtain
Outside of Vehicle
Sport Bar
Wrap Straps
around Sport Bar
Cab Curtain
Cargo Cover
Slide Cab Curtain on
to Cargo Cover
Fabric –
Backing Up
Fabric –
Vinyl Up
Push Snap Head
Screw through to
form a hole
Acorn Locknut –
Under Fabric
Snap Head
Screw
