41517 pg 3

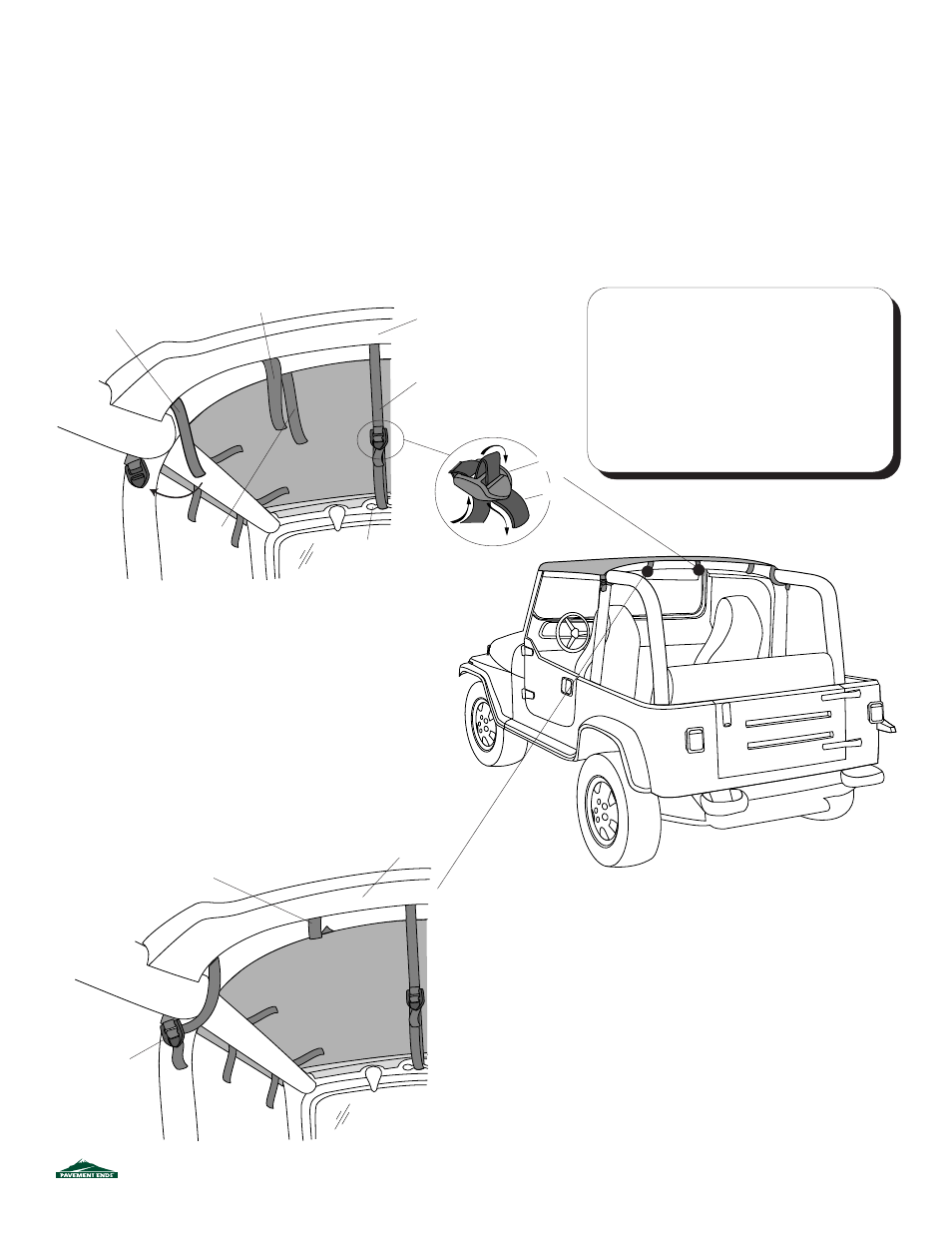

Center Strap - Thread

through Footman Loop

Soundbar

Hook -Between Sport

Bar and Sound Bar

Loop -In Front

of Sport Bar

Footman Loop

Step Two- With Soundbar

Drape the fabric over the center sport bar. Make sure that the loop straps are in front of the
sport bar and that the long center strap, the hook straps, and the side web straps are resting
on top of the soundbar.
Start with the center strap and push the end of the strap between the center sport bar and the
soundbar. Push the end of the strap through until you can get ahold of the strap to pull the
buckle through. Do this with the hook and other web straps.

- See Note -
Wrap the long center strap at the rear of the Sun Cap around the sport bar, pull it forward into
the vehicle to the windshield. Thread the strap through the footman loop on the windshield
frame. Then pull the end of the strap back and thread it through the buckle. Tighten it securely.

Note: Some soundbars fit extremely tight against the

sport bar preventing the buckles easy access to the

straps. If this is the case, the soundbar must be moved

slightly rearward. The distance will vary on each
vehicle.

Remove the four bolts securing the soundbar in place.

Reposition the soundbar rearward (check the clearance

for buckle accessibility), notch out the soundbar

attachment brackets accordingly - in most cases it will

be less than 1/4". Reinstall the four bolts.

Threading Strap

through Buckle

Buckle

Strap

Soundbar

Step Three

Wrap the straps sewn to the rear corners around the rear
sport bar and thread them through the buckles on the rear
corners of the Sun Cap.

Locate the sets of hook and loop straps on the rear of the
Sun Cap and wrap them around the center sport bar.

Thread Strap

through Buckle

Strap -Between Sport

Bar and Sound Bar

Wrap the hook
and loop

Rev. B 0105
