41518 pg 2 1206 Rev. 3

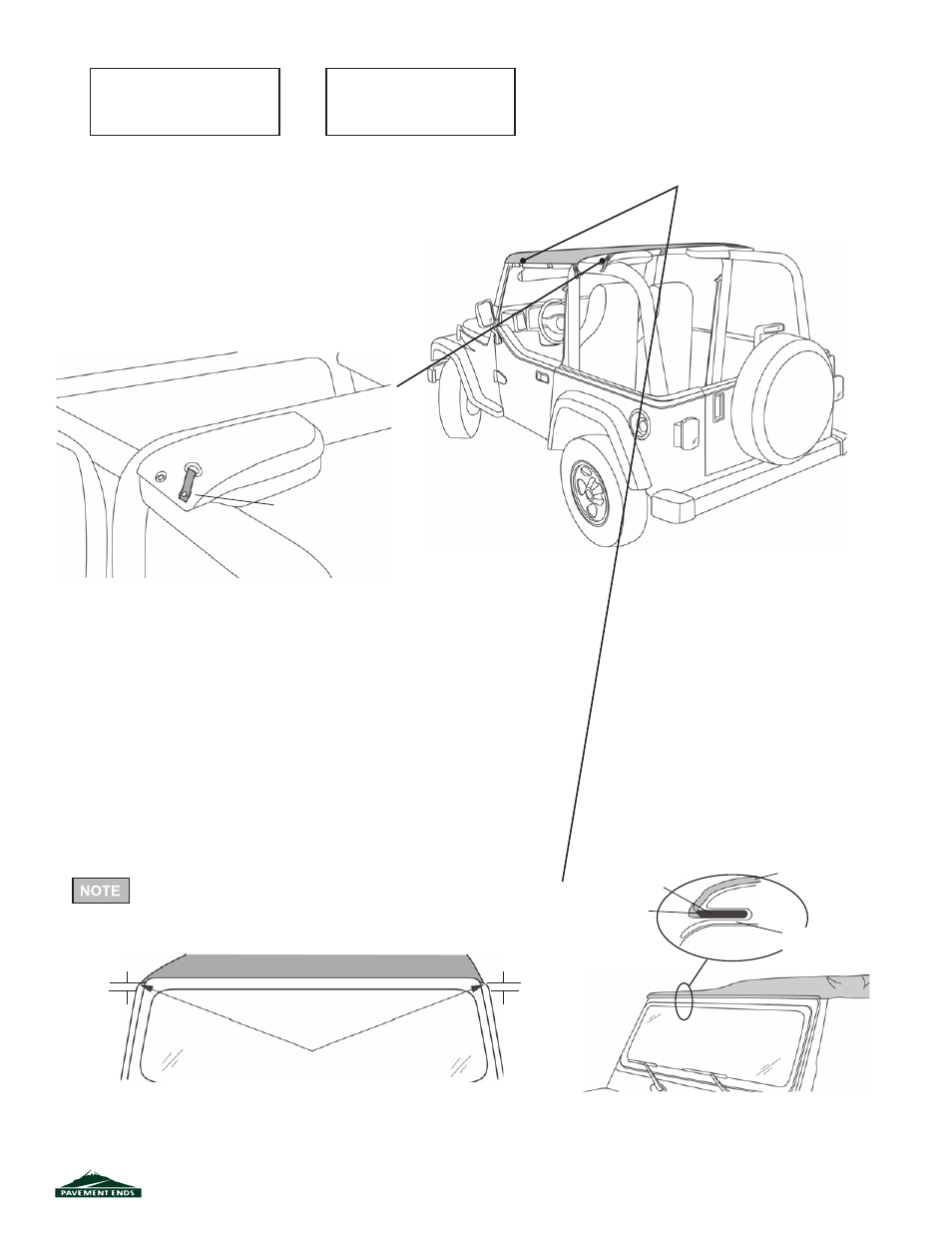

Remove #30 Torx Bolt and re-
install with D-Ring Web Strap
Tools Needed
#30 Torx Driver
Safety Glasses
Parts List
Sun Cap Qty - 1
D-Ring Web Strap Qty - 2
Step One
I NSTALL D-R ING W EB S TRAPS
Locate the D-Ring Web Straps in the parts kit. Use
the #30 Torx to remove the bolt at the rear of the
speaker pod on each side of the vehicle. Thread
a bolt through the hole in each D-Ring Web Strap
and reinstall the bolts in the holes in the speaker
pods. Do not tighten them at this time.
Step Two
I NSTALL S UN C AP IN W INDSHIELD R ETAINER
Orient the Sun Cap on the vehicle and drape it over the
bows. Insert the plastic strip sewn along the front of the
Sun Cap into the windshield retainer. Do not catch the
fabric in the retainer. Center the Sun Cap on the vehicle so
that it is an equal distance from the top of the windshield
fl ange on both sides.
For best possible installation, check to make sure that
the Sun Cap top is perfectly centered on the vehicle.
Plastic
Strip
Windshield
Driver's Side
Fabric
Make sure that only Plas-
tic Strip is in retainer
View from front
Make sure space between top fabric and
windshield fl ange is equal on both sides
Windshield
Retainer
