Parts List
Sun Cap Plus Qty - 1
Step One
I
NSTALL
S
UN
C
AP
P
LUS IN
W
INDSHIELD
R
ETAINER

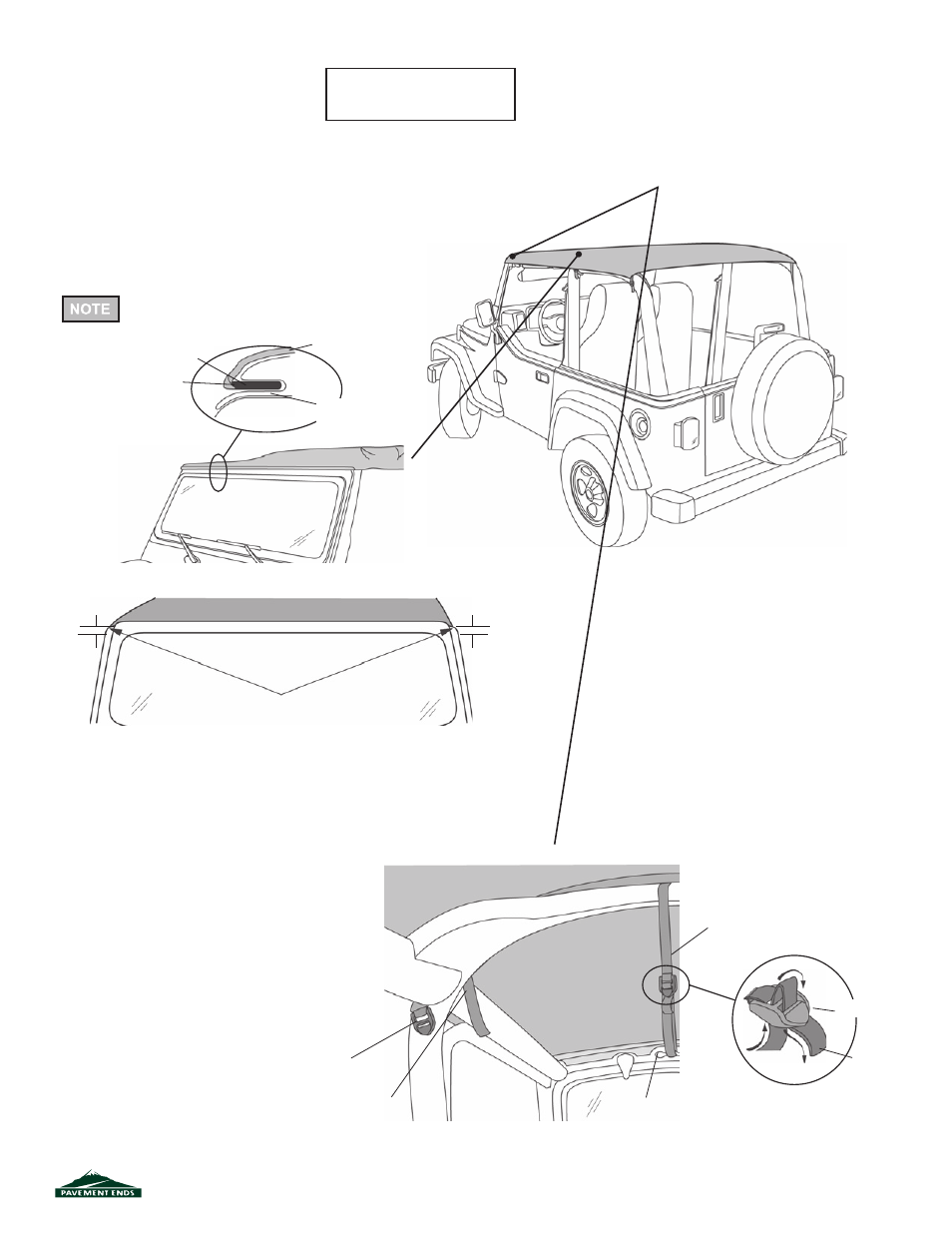

Orient the Sun Cap Plus on the vehicle and drape it over
the bows. Insert the plastic strip sewn along the front of
the Sun Cap Plus into the windshield retainer. Do not
catch the fabric in the retainer. Center the Sun Cap Plus
on the vehicle so that it is an equal distance from the top
of the windshield fl ange on both sides.
For best possible installation, check to make sure
that the Sun Cap Plus top is perfectly centered on the
vehicle.
Plastic
Strip
Windshield
Driver's Side
Fabric
Make sure that only Plas-
tic Strip is in retainer
View from front
Make sure space between top fabric and
windshield fl ange is equal on both sides
Windshield
Retainer
Step Two
F ASTEN C ENTER S TRAP
Wrap the long center strap at the rear of the Sun
Cap Plus around the sport bar, pull it forward
into the vehicle to the windshield. Thread the
strap through the footman loop on the wind-
shield frame. Then pull the end of the strap
back and thread it through the buckle. Tighten it
securely.
Threading Strap
through Buckle
Strap - In Front
of Sport Bar
Center Strap - Thread
through Footman Loop
Buckle - Behind
Sport Bar
Buckle
Footman Loop
Strap
