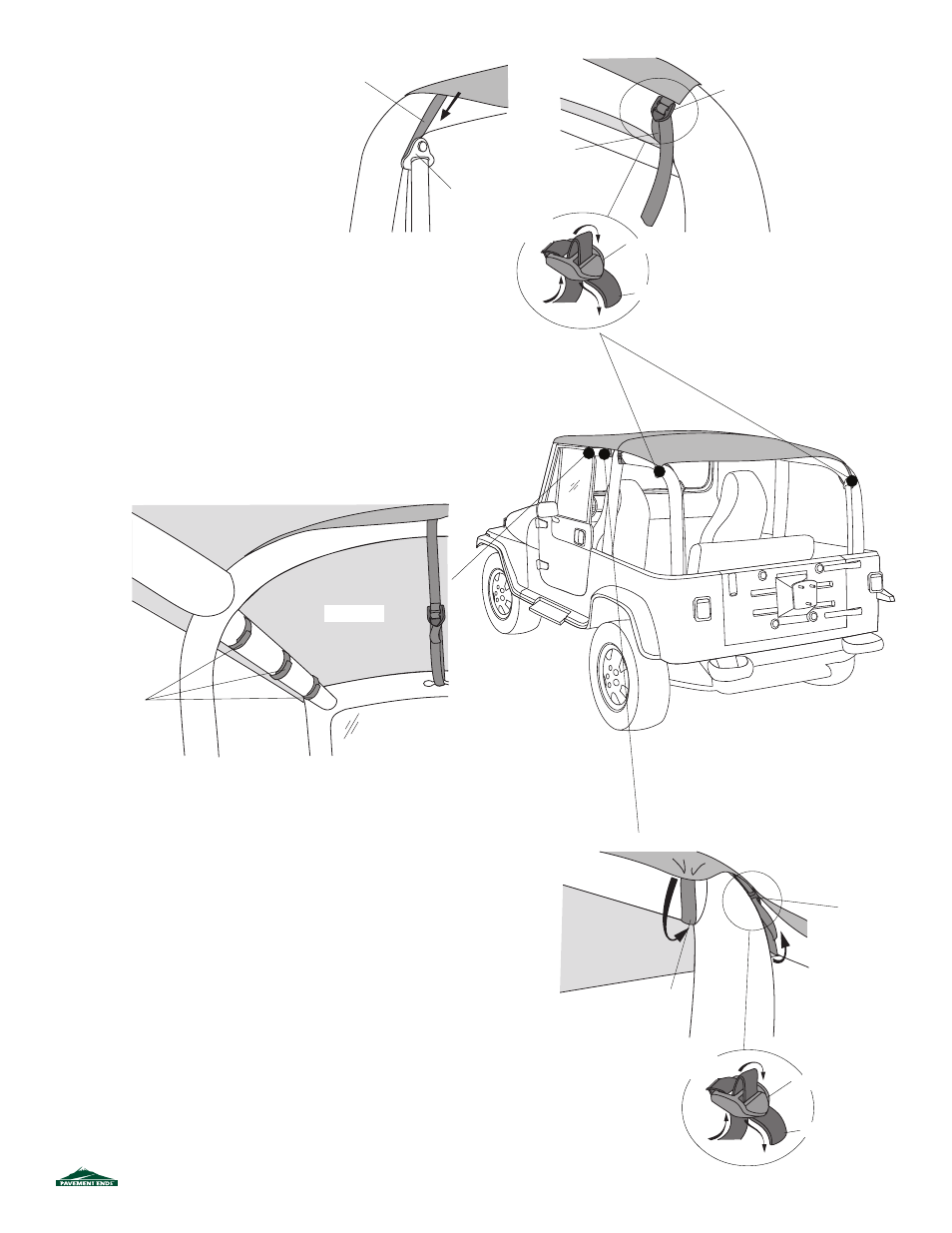

Step Three
Locate the straps sewn to the rear corners of the
Sun Cap Plus. Pull the straps toward the rear and
wrap them under the seat belt assembly mounts
and around the rear sport bar. Pull them tight up
towards buckle and thread the ends of the straps
through the buckles. Pull the straps tight.
View from Rear
(Driver's Side)
Strap
Seat Belt
Assembly
View from Side
(Driver's Side)
Buckle
Hook and Loop Strips -
Wrap around bar and fasten
Step Four
Locate the three pairs of hook and loop strips sewn to each side of the top,
above the door opening. Wrap the strips around the sport bar and fasten them
to each other. Make sure that all the hook and loop is as tight as possible.
Inside of top
Strap
Windshield
Threading Strap
through Buckle
Buckle
Strap
Step Five
Locate the web straps sewn to the top at the rear of the
door opening (near the center seam of the top). Wrap
the strap around the Horizontal Bar and under the
Vertical Sports Bar at the rear of the door and thread it
through the buckle. Pull the strap tight.
Make sure that all the straps are as tight as possible.
View from Side
(Driver's Side)
Rear
Buckle
Strap
Threading Strap
through Buckle
Buckle
Strap
