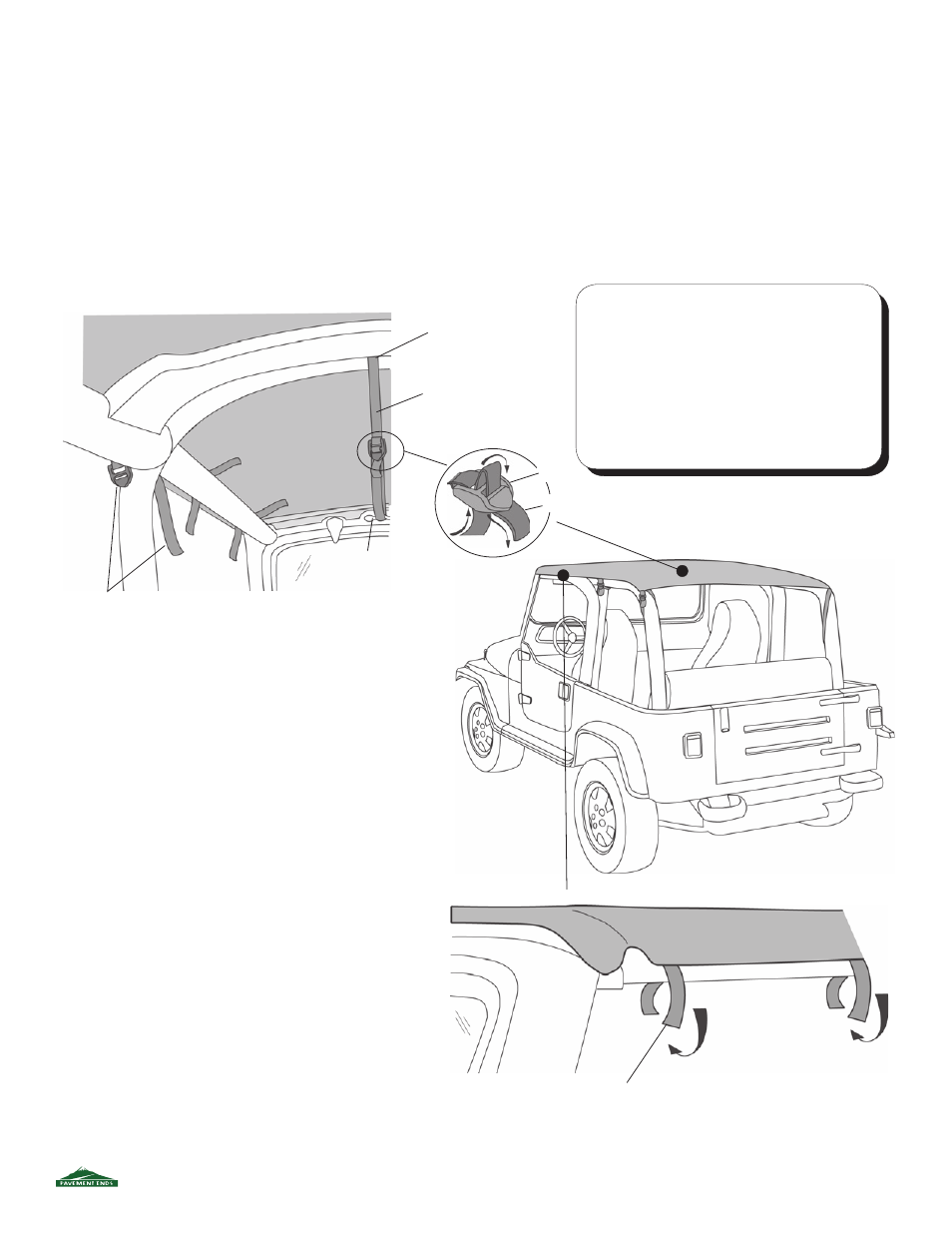

Center Strap - Thread
through Footman Loop
Soundbar
Strap Between Sport
Bar and Sound Bar
Footman Loop
Note: Some soundbars fi t extremely tight against the
sport bar preventing the buckles easy access to the
straps. If this is the case, the soundbar must be moved
slightly rearward. The distance will vary on each
vehicle.
Remove the four bolts securing the soundbar in place.
Reposition the soundbar rearward (check the clearance
for buckle accessibility), notch out the soundbar attach-
ment brackets accordingly - in most cases it will be less
than 1/4". Reinstall the four bolts.
Threading Strap
through Buckle
Buckle
Strap
Step Two - With Soundbar
Drape the fabric over the sport bar. Make sure that the web strap and buckle on the sides of the Sun
Cap Plus are on the outside, and that the long center strap is resting on top of the soundbar.
Push the end of the center strap between the sport bar and the soundbar. Push the end of the strap
through until you can get ahold of the strap to pull the buckle through. Wrap the center strap inside
the Sun Cap Plus around the sport bar, pull the strap forward to the windshield. Thread the strap
through the footman loop on the windshield frame. Then pull the end of the strap back and thread
it through the buckle. Tighten it securely.
Wrap straps around bar and fasten
Hook and Loop to each other.
Step Three
Locate the hook and loop strips sewn to each side of the Sun Cap
Plus. Fasten the strips to each other as you wrap them around the
front sport bars.
Strap and Buckle
hang off side
