51148 pg 6 0710 Rev. C
Step Sixteen
S
ECURE
F
RONT OF
Q
UARTER
P
ANELS

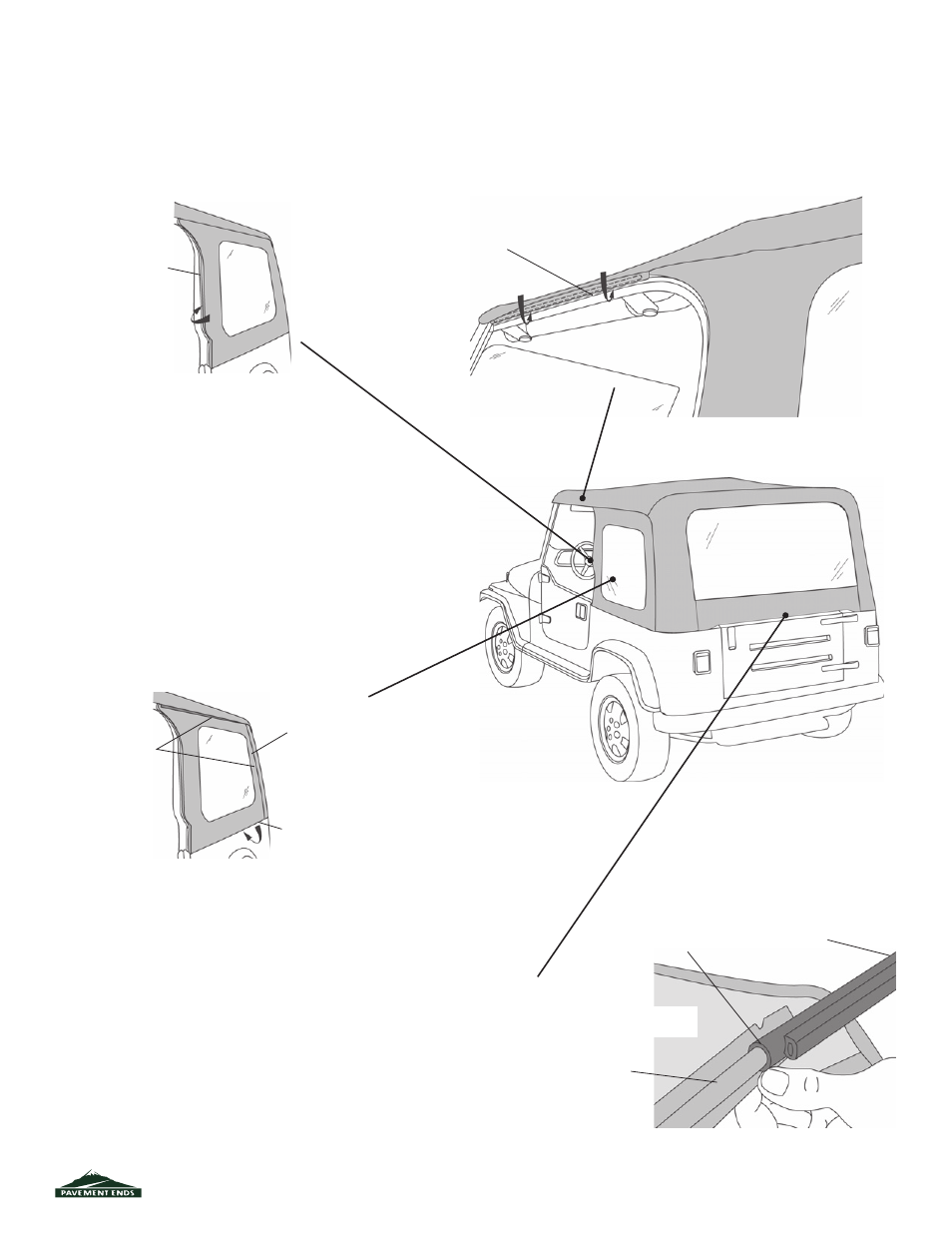

Roll the plastic along the front of the Quarter
Panel into the channel of the Door Surround
on the vehicle.
Roll Plastic Strip into
channel in retainer
Step Seventeen
S
ECURE
T
OP ABOVE
D
OOR
O
PENINGS
Locate the plastic strip sewn to each side of the
top, above each door. Slip the strips into the chan-
nel in the Door Surround above the door opening.
Step Eighteen
S
ECURE
Q
UARTER
P
ANELS
Close the zippers on the Quarter Panels the rest of
the way to the lower rear corner of the panel.
Start at the rear and roll the plastic along the bottom
of the panel into the retainer on the vehicle. Then
fasten the hook and loop strips along the top and
rear of the panel to the top.
Roll Plastic Strip into
channel in retainer
Fasten Hook and
Loop Strips
Close Zipper
Step Nineteen
I
NSTALL
T
AILGATE
B
AR ON
R
EAR
W
INDOW
Remove the Rear Window from the box and
lay it fl at with the backing side up. Locate the
Tailgate Bar set aside in Step One. The bar
has a “C” shaped channel, when viewed from
the end. Orient the bar with the round seal
down and slide the “C” channel on the retainer
onto the tubed strip sewn to the backing side
of the Rear Window.
Rear Window -
Backing Side
Tailgate Bar Tailgate Retainer
Channel
Tubed
Strip
Roll Plastic Strip into channel
above door opening
