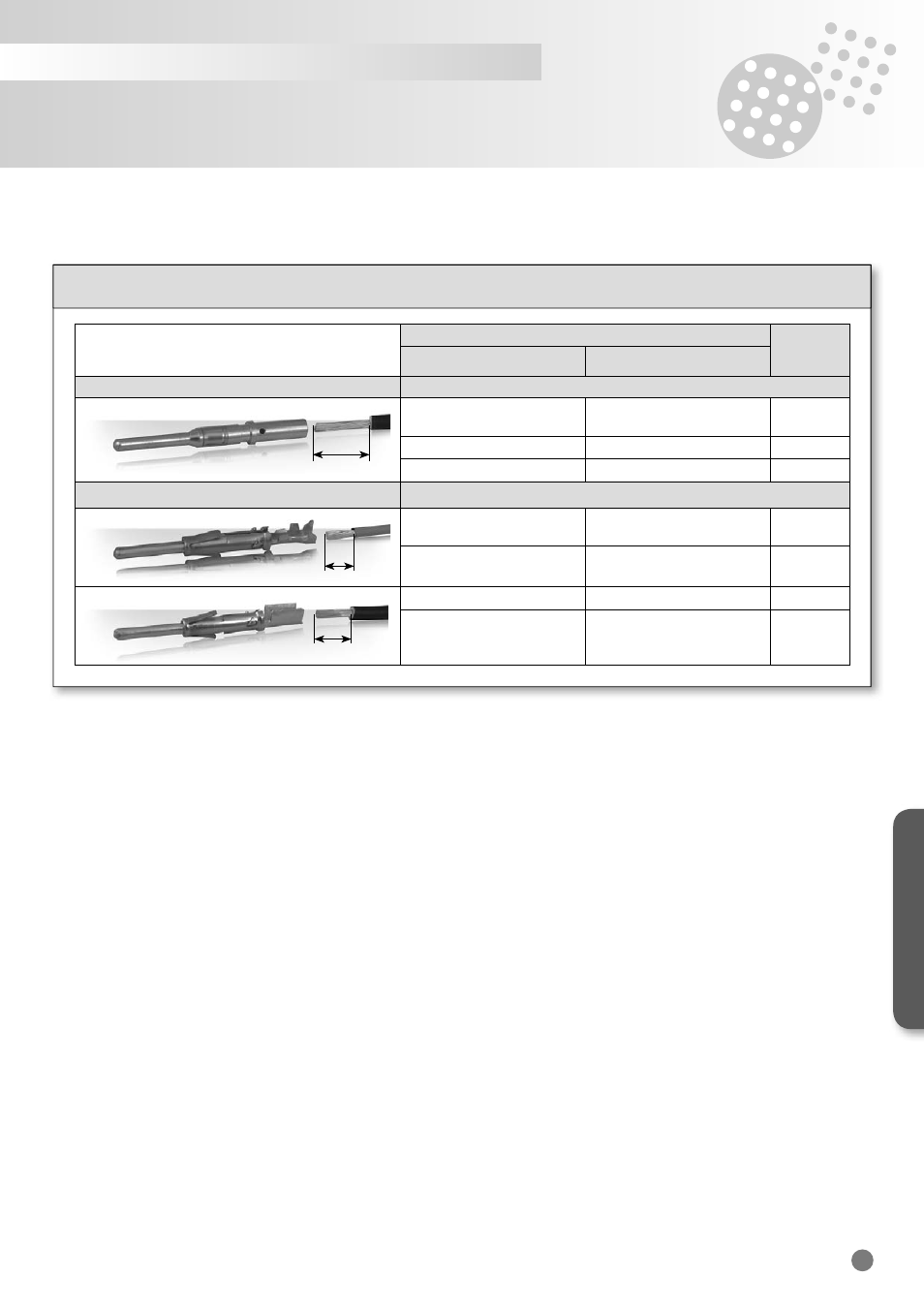

UTL Series

Technical information

Assembly instruction

T

echnical information

Part number

Stripping

length L

(mm)

Male

Female

Machined contact

#16

RM28M1- / RM24M9-

RM20M13- / RM20M12-

RC28M1- / RC24M9-

RC20M13- / RC20M12-

4.8

RM16M23- / RM14M30-

RC16M23- / RC14M30-

7.1

RM16M25K / RM14M25K

RC16M25K / RC14M25K

5.4 / 5.2

Stamped & formed

#16

SM24M1- / SM24ML1-

SM20M1- / SM20ML1

SC24M1- / SC24ML1-
SC20M1- / SC20ML1-

4

SM16M11- / SM16ML11-

SC16M11- / SC16ML11-

4.6

SM16M1- / SM16ML1-

SC16M1- / SC16ML1-

6.3

SM14M1- / SM14ML1-

SC14M1- / SC14ML1-

6.3

L

L

Without insulation support

L

With insulation support

Wire stripping crimp version
