Northern Connectors Hummel M16 Circular Connectors - Manual (Page 9)

23
4,53
7,6 4,53
7,6
4,53
7,6 4,53
7,6

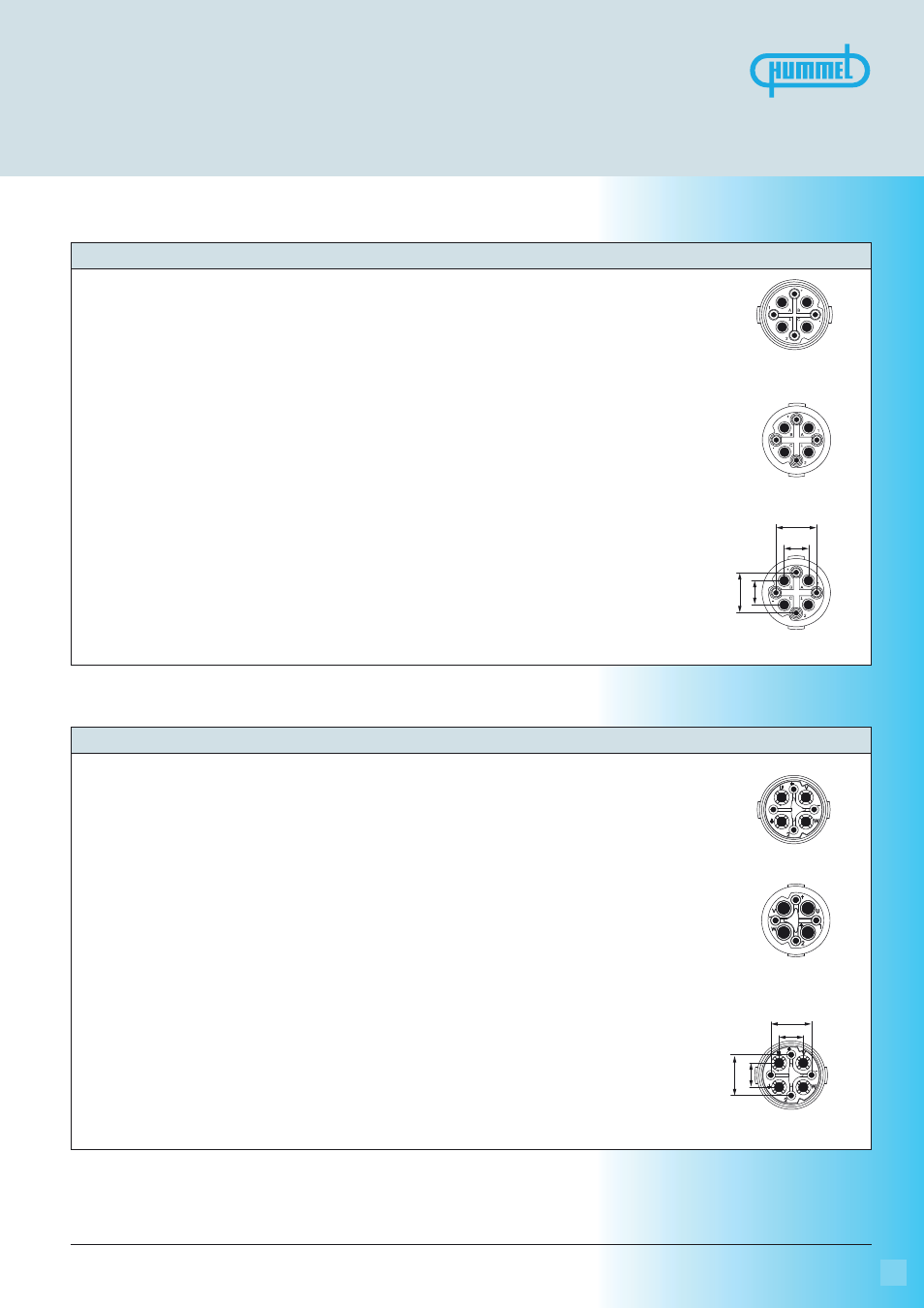

Insert socket mating view
Insert pin mating view
Connectors M 16 / Inserts / Pinouts
Dimensions and specifications may be changed without prior notice
Inserts 4+3+PE Type Part Number Part Number
Contacts page 27 - 28
Required Contacts
4 x 0,8 mm .............................7.010.980.801.................7.010.980.802
4 x 1,6 mm .............................7.010.981.601.................7.010.981.602
Inserts 4+3+PE 630 V Type Part Number Part Number
Pins Sockets
Insert
without contacts .......................7.003.943.101.................7.003.943.102
Insert RAL 2003 (DESINA orange)
without contacts .......................7.053.943.101.................7.053.943.102
Insert with dip solder contacts
Length 10 mm ..........................7.001.943.127.................7.001.943.108
Insert with dip solder contacts
Length 17 mm ..........................7.001.943.137.................7.001.943.118
Insert socket mating view
Insert pin mating view
Contacts page 27 - 28
Required Contacts
4 x 0,8 mm .............................7.010.980.811.................7.010.980.812
4 x 1,25 mm ...........................7.010.981.211.................7.010.981.212
Pins Sockets
Insert
without contacts .......................7.003.908.101.................7.003.908.102
Insert RAL 2003 (DESINA orange)
without contacts .......................7.053.908.101.................7.053.908.102
Insert with dip solder contacts
Length 10 mm
1) ........................7.001.908.127.................7.001.908.108
Insert with dip solder contacts
Length 17 mm
1) ........................7.001.908.137.................7.001.908.118
1) Under development
