Northern Connectors Hummel M16 Circular Connectors - Manual (Page 10)

7
2,9
7 2,9
1
2
3
4
5
6
1
6
2
3
4
5
Ø 7,5
6 x 60°
1
2
3
4
5
6
24
1) Under development

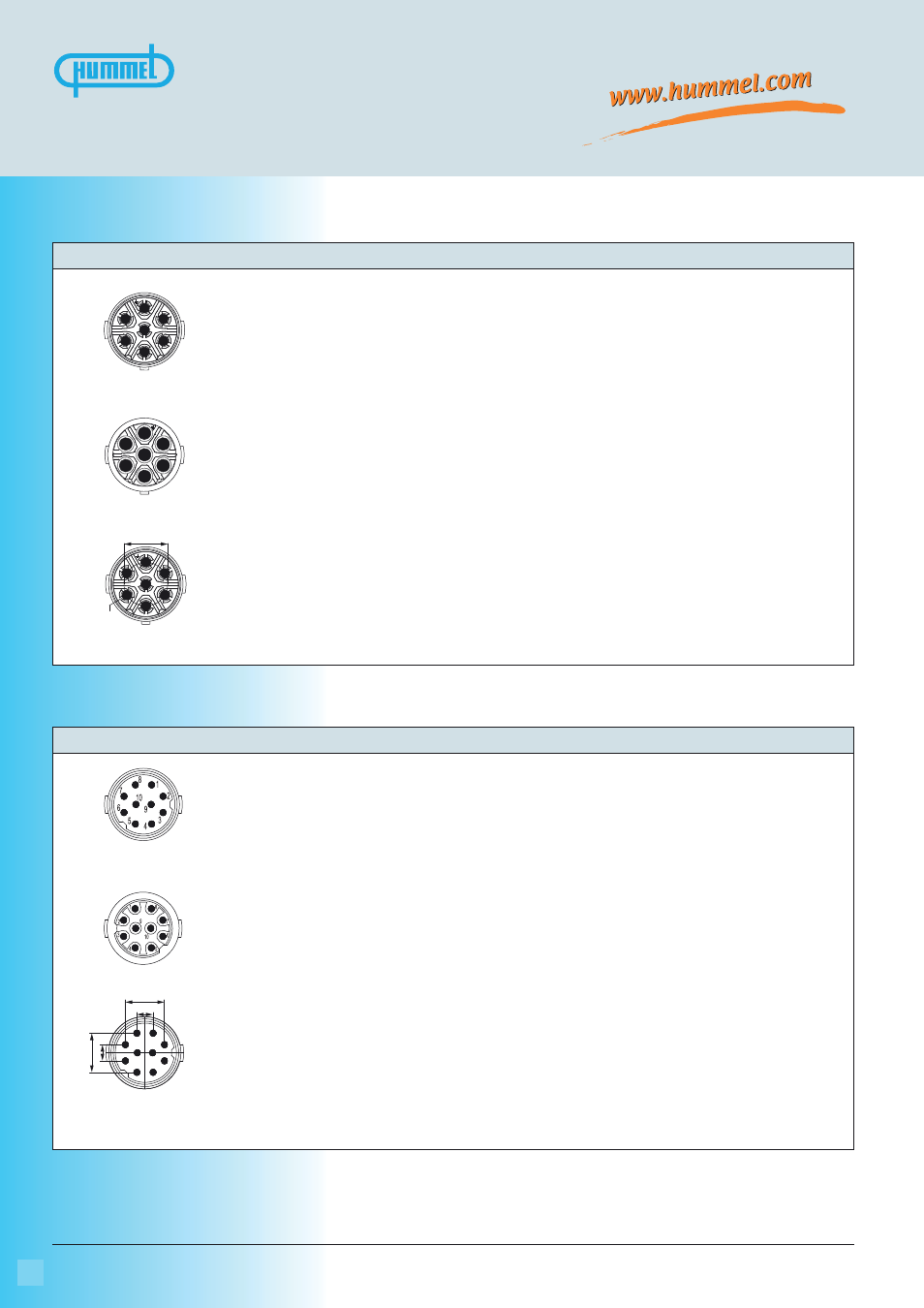

Insert socket mating view
Insert pin mating view
Type Part Number Part Number Inserts 6+PE
Pins Sockets
Insert
without contacts .......................7.003.961.101.................7.003.961.102
Insert RAL 2003 (DESINA orange)
without contacts .......................7.053.961.101.................7.053.961.102
Insert with dip solder contacts
Length 10 mm
1) ........................7.001.961.127.................7.001.961.108
Insert with dip solder contacts
Length 17 mm
1) ........................7.001.961.137.................7.001.961.118
Required Contacts
7 x 1,25 mm ...........................7.010.981.211.................7.010.981.212
Pins Sockets
Insert
without contacts .......................7.003.910.101.................7.003.910.102
Insert RAL 6018 (DESINA green)
without contacts .......................7.053.910.101.................7.053.910.102
Insert with dip solder contacts
Length 10 mm ..........................7.001.910.127.................7.001.910.108
Insert with dip solder contacts
Length 17 mm ..........................7.001.910.137.................7.001.910.118
Required Contacts
10 x 1 mm ..............................7.010.981.001.................7.010.981.002
Contacts page 27 - 28
Connectors M 16 / Inserts / Pinouts
Contacts page 27 - 28
Insert socket mating view
Insert pin mating view
Type Part Number Part Number Inserts 10-pole
