1
2 3
1
2 3
2,8
1,4
4,8
22
4,8
1,4
2,8
Dimensions and specifications may be changed without prior notice
Type Part Number Part Number
Pins Sockets
Insert
without contacts .......................7.003.983.101.................7.003.983.102
Insert with dip solder contacts
Length 10 mm ..........................7.001.983.127.................7.001.983.108
Insert with dip solder contacts
Length 17 mm ..........................7.001.983.137.................7.001.983.118
Contacts page 27 - 28

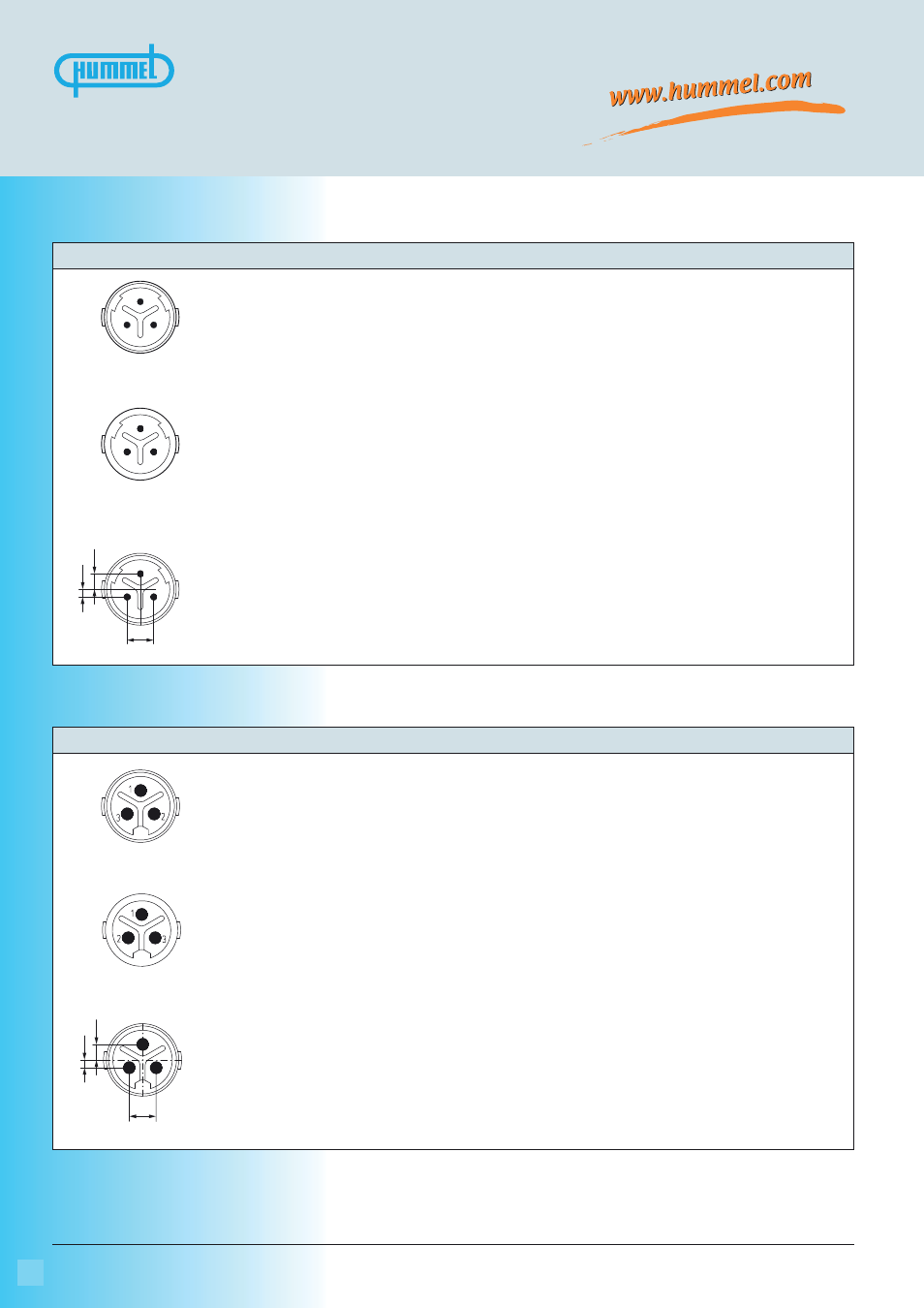

Insert socket mating view
Insert pin mating view
Inserts 3-pole (3 x 2 mm)
Contacts page 27 - 28
Insert socket mating view
Insert pin mating view
Type Part Number Part Number Inserts 3-pole (3 x 1 mm)
Pins Sockets
Insert
without contacts .......................7.003.903.101.................7.003.903.102
Insert with dip solder contacts
Length 10 mm ..........................7.001.903.127.................7.001.903.108
Insert with dip solder contacts
Length 17 mm ..........................7.001.903.137.................7.001.903.118
Connectors M 16 / Inserts / Pinouts
Required Contacts
3 x 1 mm ................................7.010.901.001.................7.010.901.002 /
7.010.901.012
Required Contacts
3 x 2 mm ................................7.010.982.001.................7.010.982.002
