of production dispenses to be programmed into the pump. The user then would only be able to select from one
of these production dispenses and not make any changes.
Foot Switch Trigger Feature: If the Pumping Program was Paused, and the Paused Phase was a continuous
pumping Rate function, then starting the pump with a foot switch will cancel the Pause and restart the
Pumping Program Phase 1 causing the current program selection to be re-executed.

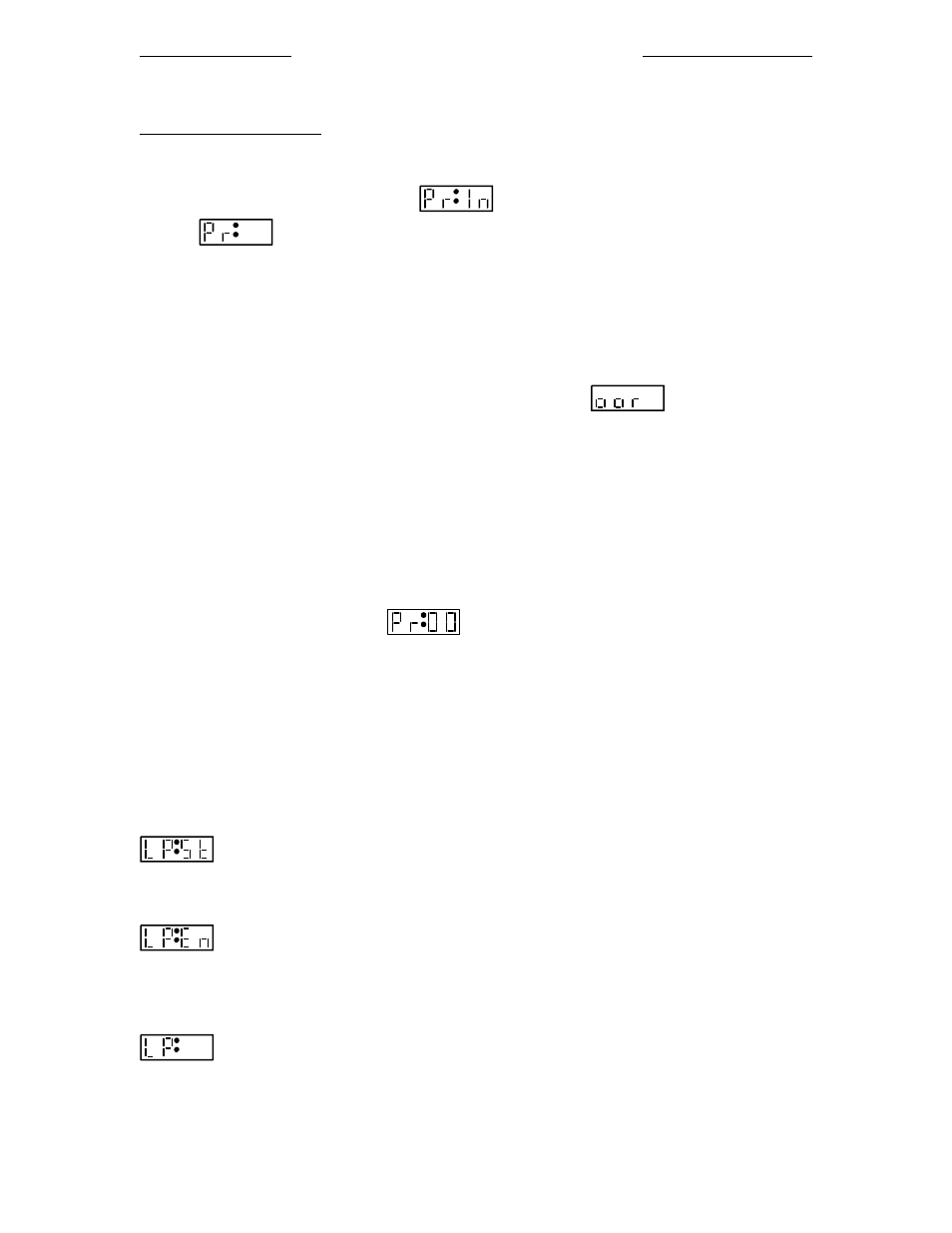

When the Program Selection Input function
is executed, the Pumping Program pauses and
displays:
nn
, where 'nn' is the Program Selection.
Using the right 2 arrow keys, under 'nn', the user enters the Label of the required Pumping Program. The
Pumping Program Label is defined by any number from 0 to 99. When the 'Start' key is pressed, the Pumping
Program continues execution at the Program Phase with the selected Pumping Program Selection Label. Also,
the accumulated infusion and withdrawal dispensed volumes are set to zero.
The pump searches for the selected Pumping Program Selection Label starting with the current Phase and
continuing to the end of the Pumping Program memory, then from Phase 1 until the current Phase is reached
again. If the selected label is not found, the 'out of range' error message
is displayed. Pressing
any key returns the display to the Program Selection Input display.
If more than one Phase is defined with the same label, then execution continues with the first matching label
encountered. The last selected program label is stored in non-volatile memory and becomes the default label
the next time the current Program Phase is executed. More than one Program Selection Input function can be
defined and placed at any Program Phase needed. To cancel the Program Select Input and stop the Pumping
Program, turn the power to the pump off and on.
If alarms are enabled, the buzzer will beep continuously while waiting for the start trigger.
9.3.8
'Pr:nn': Sub-Program Start Label
The Sub-Program Start Label function
defines the start of a Pumping Program sub-program that
can be selected by the user during Pump Program execution.
After selecting the function, change '00', if needed, to a unique Program Label, from 0 to 99. See sec: 9.3.7,
'Pr:In': Sub-Program Selection Input for a full description. Place a Sub-Program Start Label, with a unique
number for each Sub-Program, from 0 to 99, at the starting Phase of each sub-program section.
When the Pumping Program encounters a Sub-Program Start Label in normal execution, it will be interpreted
as “Jump to Phase 1” [JP:01], ending the sub-program, and, assuming Phase 1 is a Sub-Program Select
function, [Pr:In], the user will be immediately prompted to select a sub-program.
9.3.9
‘LP:ST’: Define Starting Phase of Loop
Defines the start of a Program loop. For a full description of Program looping, see sec. 9.3.11,
‘LP:nn’: .
9.3.10
‘LP:EN’: Define Continuous Loop End
Loops to the most recently executed, unpaired, ‘loop start’ Phase, or Phase 1 if none. This
function allows a section of the Program to be repeated continuously. For a full description of Program
looping, see sec. 9.3.11, ‘LP:nn’: .
9.3.11
‘LP:nn’: Define Loop End and Loop Repetitions
nn
Repeats execution of the defined loop ‘nn’ times.
Loop starts and loop ends are uniquely paired during looping. When an unpaired ‘loop end’ function is
executed, it is paired with the most recent unpaired ‘loop start’ function executed (‘LP:ST’). If no unpaired
‘loop start’ function exists, Phase 1 is used as an implied unpaired ‘loop start’. This pairing defines the loop
and the range of Phase numbers between the paired loop functions defines the scope of the loop.
