PAGE 52 — LT12 SERIES LIGHT TOWER • OPERATION MANUAL — REV. #12 (01/20/09)

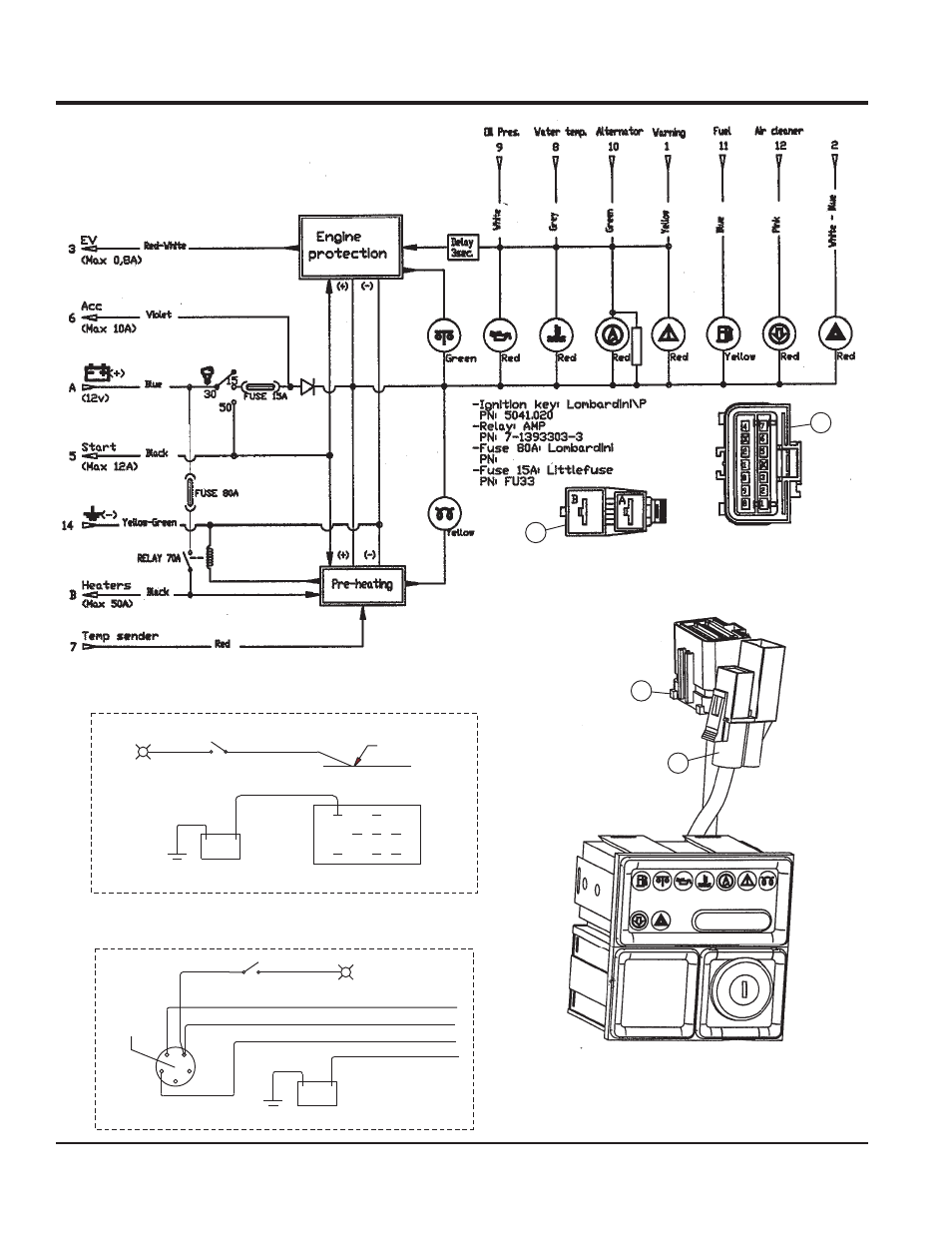

LT12 CONTROL PANEL/IGNITION WIRING DIAGRAM
Operating voltage: 10 to 16 VDC (30VDC max 10 sec.)
A
B
PERKINS SPECIFIC
FROM ENGINE
KEY SWITCH
PERKINS ENGINE
DOOR SWITCH
PANEL LIGHT
GROUND
TO PANEL
HR METER
30
50
17
19
IGN
16G YELLOW
16G PURPLE
16G RED
16G ORANGE
16G BLACK (12") 16G BLACK (6")
16G GREEN (4.5")
DEUTZ/LOMBARDINI SPECIFIC
PANEL LIGHT DOOR SWITCH
USE BULLET
QUICK CONNECT
16G L BLUE
TO KEY SWITCH
BACK SIDE OF DEUTZ/LOMBARDINI
CONTROL PANEL
GROUND
TO PANEL
HR METER
16G BLUE (10")
16G GREEN (4.5")
16G BLACK (12")
16G BLACK (6")
A
B
