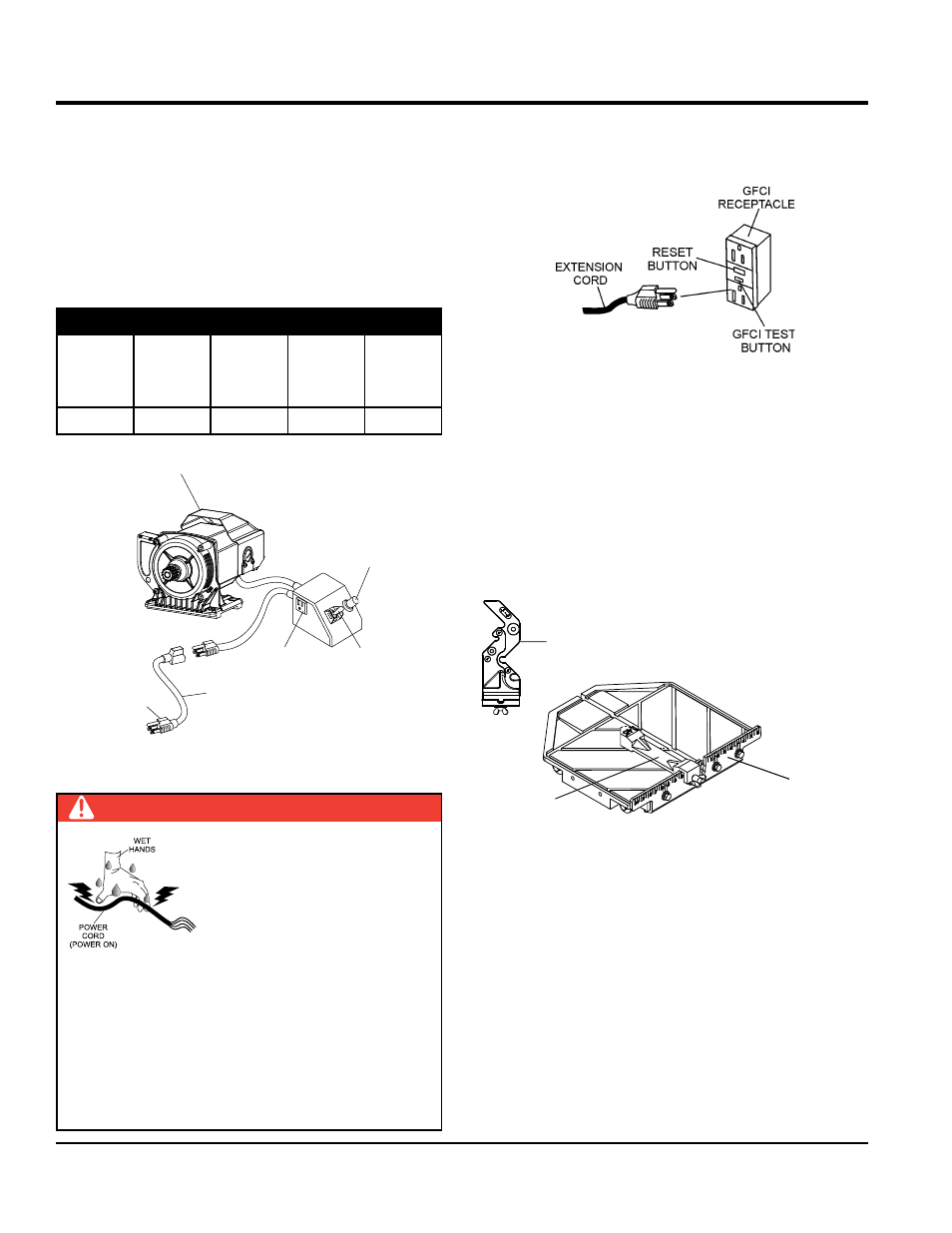

page 20 — Tp7X TILe SaW • operaTIon manuaL — rev. #0 (03/04/11)
Set-up/Sawing guiDeS
4. Plug the free end of the extension cord into an AC power
receptacle. Whenever possible use a GFCI receptacle
(Figure 11) to reduce the risk of electrical shock.
Figure 11. GFCI Receptacle
SaWIng guIDeS
using the Cutting Table
„ The ruler guide has inches and centimeters marked
along the top to allow convenient measurements and to
promote precision cuts. See Figure 12.
„ A rip guide should be used with the cutting table to ensure
precision while making cuts.
Figure 12. Cutting Table
using the masterguide Template Base
1. Set the template base (Figure 12) by positioning it
on the desired dimension on the cutting table and
tightening the universal clamp to the table. Make sure
that the template base is firmly tightened. The template
base can be used for 90° rip cuts from both the left and
right side. The 45° diagonal cuts are quickly achieved
with the specially designed fitted notches on the
template base of 4", 6", 8" and 10"~14" tiles (Note the
specifically shown dimensions on each notch).
ADJUSTABLE
RULER GUIDE
OPTIONAL
RIP GUIDE
MASTERGUIDE
TEMPLATE BASE
ConneCTIng THe poWer
1. Place the power ON/OFF switch (Figure 10) in the OFF
position (down).
2. Connect an extension cord of adequate current carrying
capacity to the power plug on the electric motor.
3. maKe CerTaIn that the correct size extension cord
is used. Undersized wires will burn out motors. Use
Table 6 to determine the correct extension cord size.
Figure 10. Extension Cord Connection
Table 6. extension Cord Sizes
motor
voltage
vaC
25 ft
(7.6 m)
Long
50 ft
(15. 2 m)
Long
75 ft
(22.9 m)
Long
1 HP 115 No. 12 No. 10 No. 8
ELECTRIC WATER
PUMP AC
RECEPTACLE
OVERCURRENT
BREAKER BUTTON
ELECTRIC
MOTOR
ON/OFF SWITCH
115 VAC, 60 Hz
SINGLE -PHASE
ELECTRIC MOTOR
EXTENSION
CORD
CONNECT TO
115/230 VAC
POWER SOURCE
Danger
never grab or touch a live
power cord with wet hands, the
possibility exists of electrical shock,
electrocution, and even death!
never use a damaged or worn
extension cable when connecting
to a power source. Defective cables may cause damage
to the saw’s electric motor or electrical shock.
aLWayS use a grounded (3-wire) extension cord
and maKe CerTaIn that the motor is connected to
a properly grounded electric circuit. If possible use a
ground fault circuit interrupter to protect the operator
from possible electric shock.
