page 16 — Tp7X TILe SaW • operaTIon manuaL — rev. #0 (03/04/11)
electric MOtOr cOMpOnentS/Set-up
eLeCTrIC moTor ComponenTS

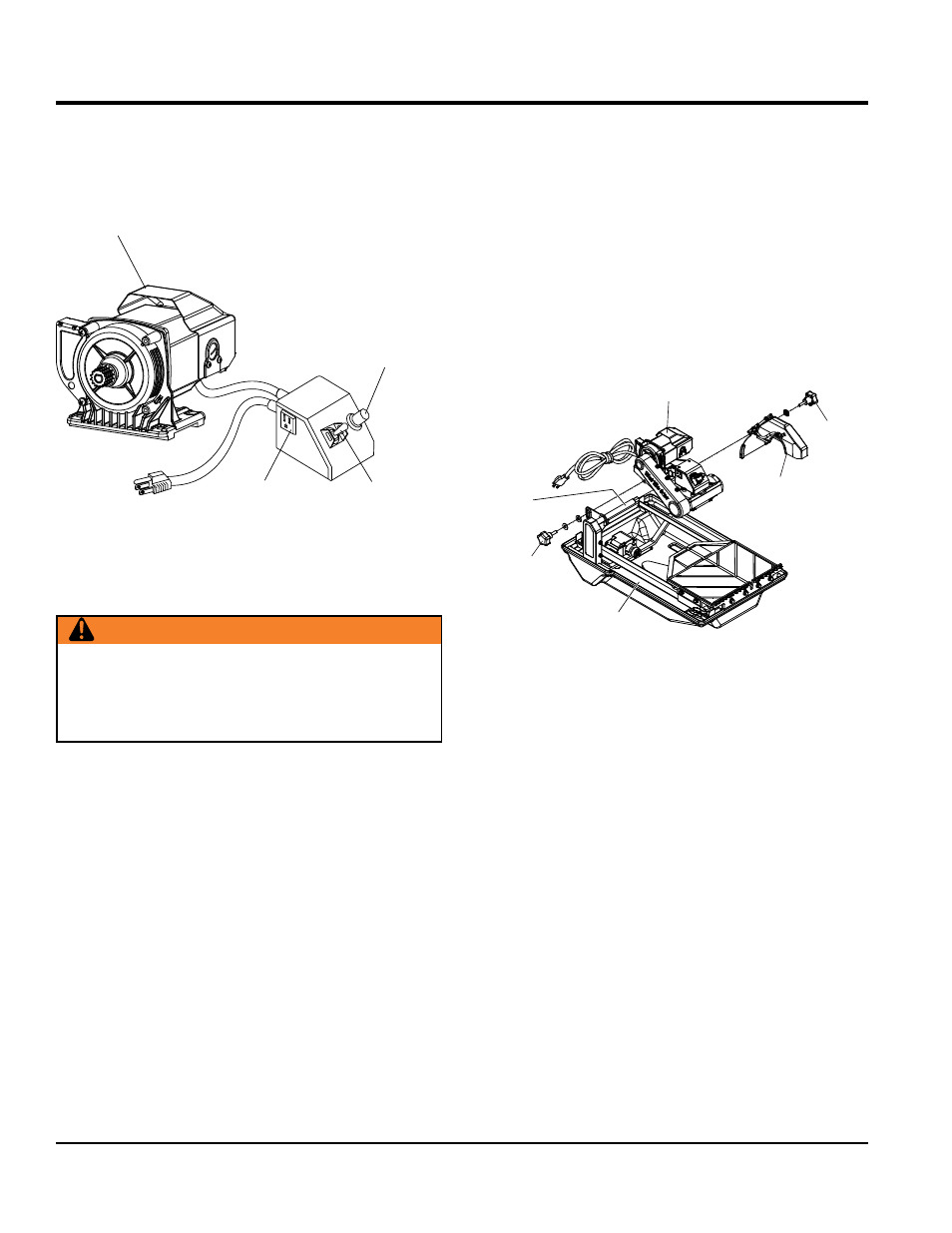

Figure 3 shows the location of the components of the
electric motor.
Figure 3. Electric Motor Components
SaW SeT-up
1. Open the shipping container carefully, lift the saw by
its carrying handles and place it on a suitable table or
platform. Make sure the table or platform can support
the weight of the saw.
2. Make sure that the following items are found in the
container:
ELECTRIC WATER
PUMP AC
RECEPTACLE
OVERCURRENT
BREAKER BUTTON
ELECTRIC
MOTOR
ON/OFF SWITCH
115 VAC, 60 Hz
SINGLE -PHASE
ELECTRIC MOTOR
WarnIng
Whenever cleaning, adjusting or lubricating any part
of the saw, make certain to place the power ON/OFF
switch in the oFF position and disconnect the plug from
the power source.
3. Slide water pump onto U-shaped bracket located at
the bottom of the frame. See Figure 6.
4. Slide cutting head onto the post. Secure cutting head
to the shaft using provided flat washer, lock washer and
nut. Attach cutting depth control knob and washers to
the cutting head through the slot located underneath
the belt guard. See Figure 4.
5. Mount blade guard onto shaft protruding from the side
of the cutting head. Secure the blade guard in place
using the provided serrated washer and blade guard
knob.
Figure 4. Saw Assembly
6. If using the optional support stand, assemble as
described in the Support Stand Assembly section.
Make sure that the saw is secured on the support
stand as instructed.
SupporT STanD aSSemBLy (opTIonaL)
Refer to Figure 5 for location of components.
1. Remove the folding stand from its box.
2. Swing the working bench upright. Open the two legs
and place the work bench on top of the folding stand.
3. After teh saw stand is assembled, seat the saw
securely on top of the stand.
CUTTING
HEAD
BLADE
GUARD
KNOB
BLADE
GUARD
WATER
TRAY
CUTTING
DEPTH
CONTROL
KNOB
SHAFT
„ Saw
„ Water Tray
„ Drain Plug
„ Universal Wrench
„ Saw Blade
„ Water Pump
„ Owner’s Manual
„ MasterGuide Template
Base
