Replacing the Battery
1. Remove rear access panel.
2. Disconnect both negative battery cables first, then
disconnect both positive battery cables to prevent
arcing.
3. Remove top battery retainer clip (Figure 43, Item A).
4. Remove lower battery retainer (Figure 43, Item B).
5. Carefully slide battery out of tray. Dispose of properly
in accordance with ordinances and regulations in your
area.
6. Install new battery in tray.
7. Install lower battery retainer. Push retainer tightly
against battery and tighten bolt.
8. Install top battery retainer clip.
9. Reconnect both positive cables first, then both negative
cables to prevent arcing.
MAINTENANCE

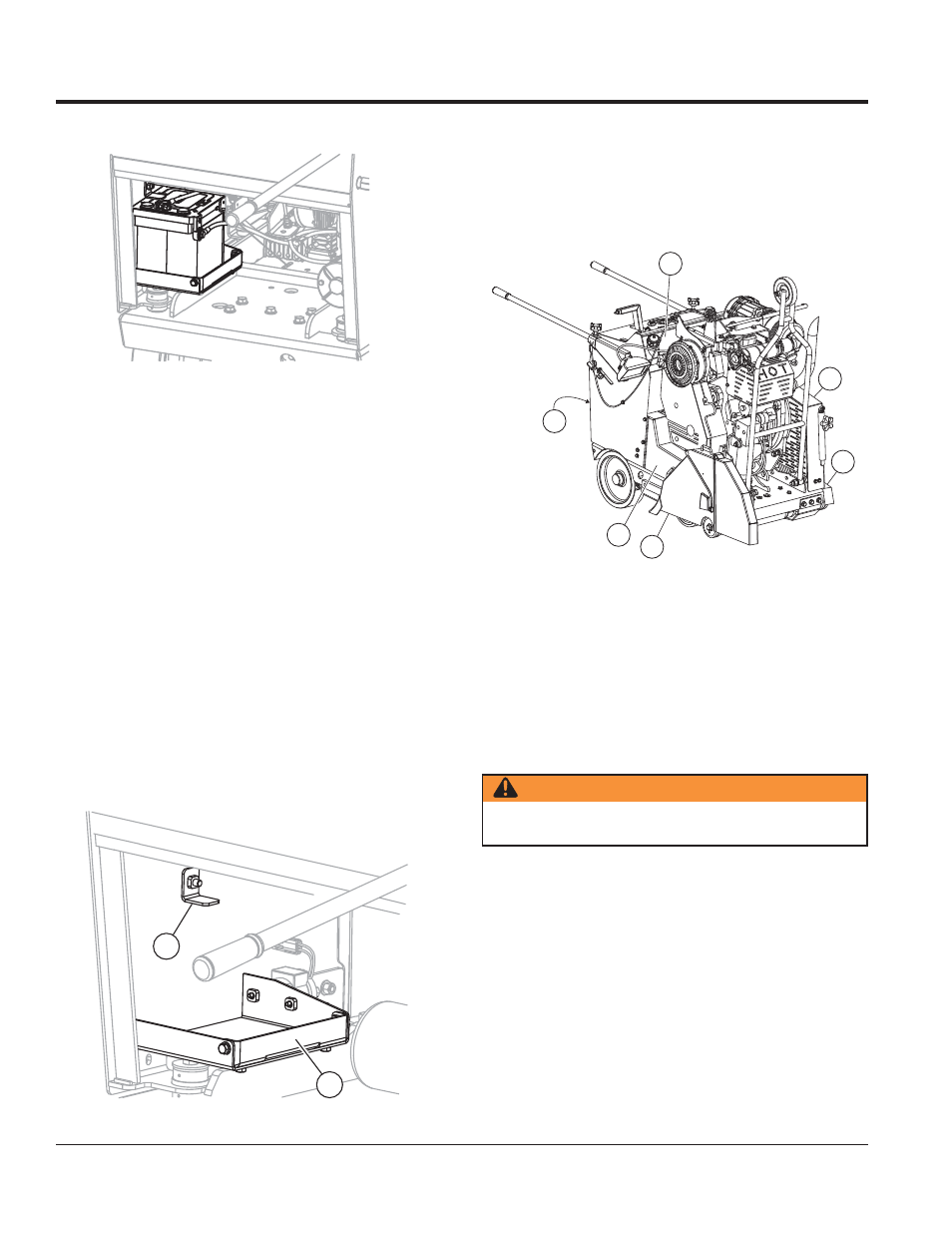

Figure 42. Battery Location
A
B
Figure 43. Battery Tray and Retainer Clips
Removable Guards and Access Panels
For ease of service access, the guards and access panels
shown in Figure 44 are removable.
1
2
4
5
6
3
1. Blade Guard
2. Rear Access Panel
3. Console Access Panel
4. Belt Guard
5. Flange Guard
6. Engine Guard
Figure 44. Guards & Panels
WARNING — Replace guards and panels
Replace guards and panels prior to starting the engine.
