PAGE 16 — MQ SP4030 SAW • OPERATION MANUAL — REV. #0 (01/22/09)

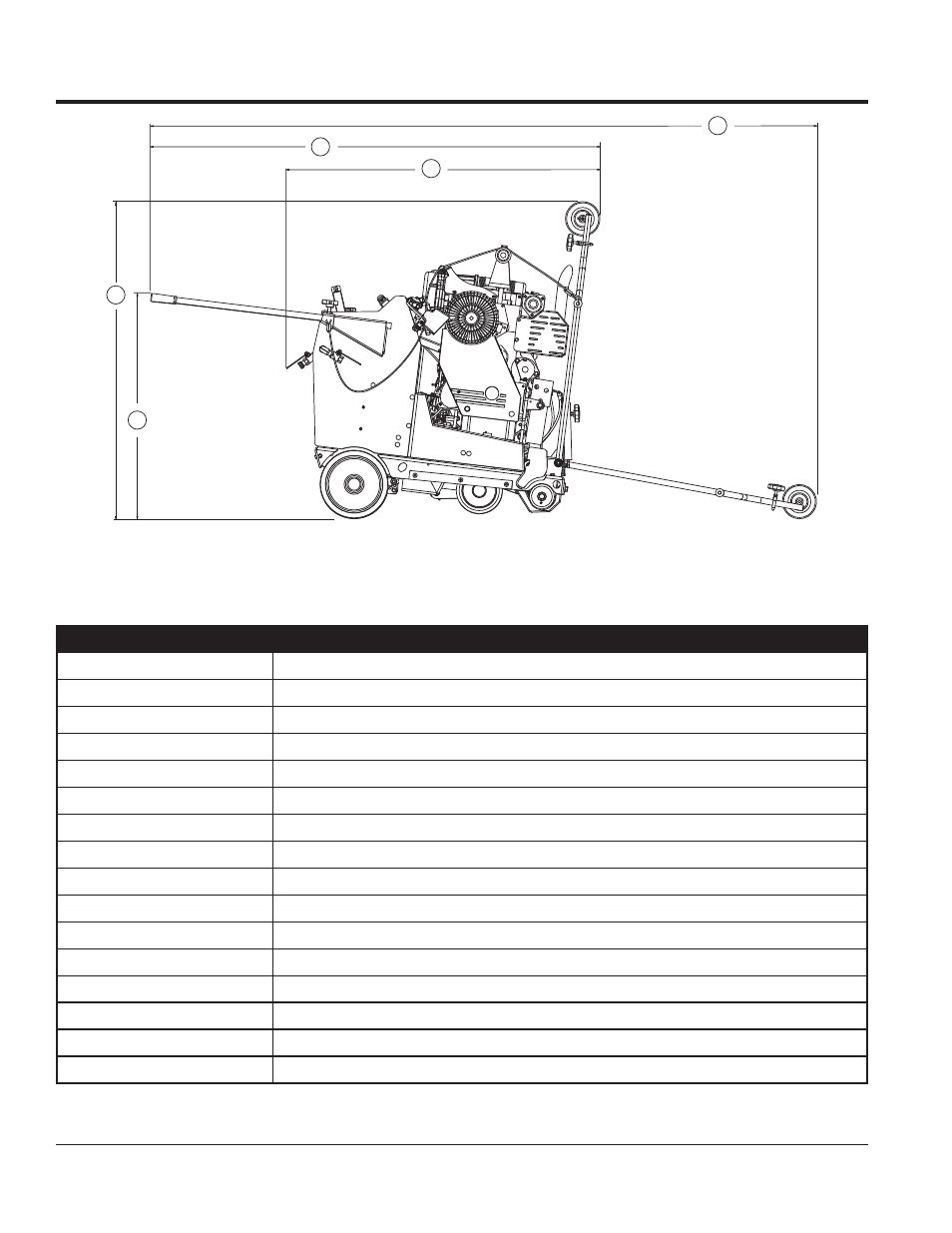

Figure 2. Chassis and Dimensions — Side View
SPECIFICATIONS
A
B
C
D
E
Table 2. Blade and Shaft Specifications
Blade Shaft Assembly Oil bath design, fully enclosed housing
Blade Shaft Bearings Oil bath lubricated
Blade Shaft Diameter 2-3/8 in. (60mm)
Arbor Diameter 1 in. (25.4mm)
Blade Flanges Quick disconnect system, inner flanges mounted to shaft
Blade Flange Sizes 4-1/2 in. and 5 in. (114mm and 127mm)
Drive Belt (1) 6G 3VX-500 multi-groove belt
Max. Blade Raise Height 17.5 in. (445mm)
Blade Mounting Left or Right
Max. Blade Diameter 30 in. (762mm)
Max. Depth of Cut 12.5 in. (318mm)
Blade Guard Capacity 16-30 in. (406mm-762mm)
Blade Guard Slip-on, tapered mount
Blade Raise-Lower Electro-hydraulic pump
Water Control Water valves on both sides of saw
Water Distribution Dual water lines directly deliver water to blade
