MQ SP4030 SAW • OPERATION MANUAL — REV. #0 (01/22/09) — PAGE 29
BLADE GUARDS
Installing a Blade Guard:
1. Slide the blade guard straight downward to engage the
tapered mounting clip (Figure 16).
2. Connect the water delivery hose to the blade guard
(Figure 14). Ensure that the water hoses are pointed
toward the water distribution grooves in the blade
flanges (Figure 17).
3. Ensure the front hinged section of the blade guard is
fully closed before use.

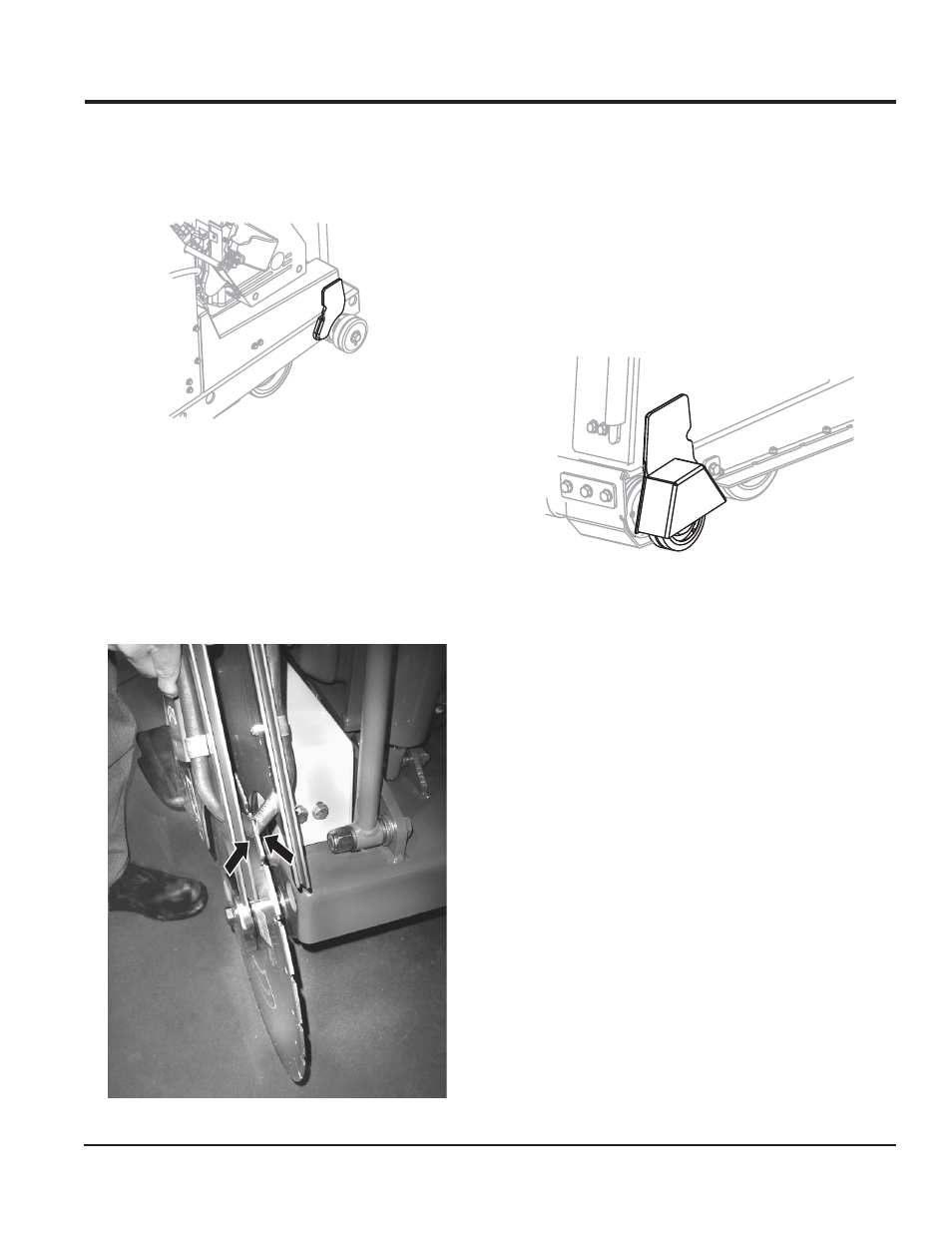

Figure 16. Tapered Mounting Clip
Figure 17. Water Hose Detail
INSTALLING THE FLANGE GUARD
The flange guard protects the blade flange when not in use.
1. Slide the flange guard onto the guard mounting tab on
the frame (Figure 18).
2. Verify that the blade flange not in use is secured to the
blade shaft by tightening the mounting bolt.
Figure 18. The Flange Guard Installed
