STR46SPVGH • RIDE-ON POWER TROWEL — OPERATION MANUAL — REV. #0 (07/17/08) — PAGE 35

STR46SPVGH— MAINTENANCE

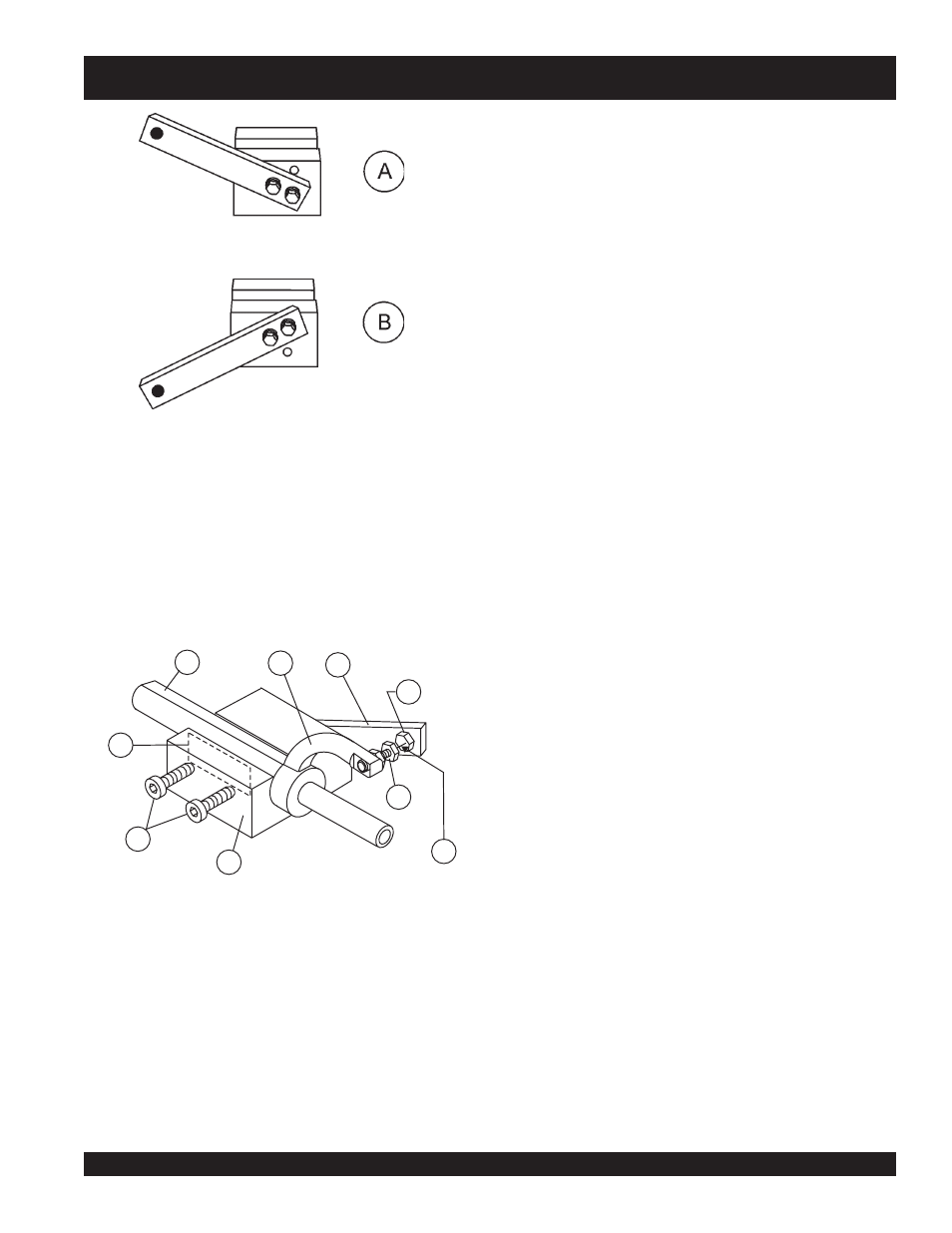

Figure 40. Trowel Arm Adjustment Setup

Figure 41. Trowel Arm Adjustment Fixture Components

3. Unscrew the locking bolts on the adjustment tool and place

the trowel arm into the fixture channel as shown in Figure 41
A

thin

shim

may be required to cover the blade holes on the

trowel arm. Make sure to align the

trowel

adjustment bolt with

the

fixture

adjustment bolt.

1

Arm

2

Trowel Arm Lever

3

Fixture Arm

4

Adjustment Bolt

5

Distance = .010 Inch

6

Adjustment Bolt

7

Trowel Arm Adjustment Fixture

8

Locking Bolts

9

Shim

4. Use an allen wrench to tighten the locking bolts securing the

trowel arm in place.

5. Adjust the bolt "distance" shown in Figure 41 to match one

of the arms. The other arms will be adjusted to match this
distance.

7. Once the correct adjustment is made, tighten the lock nut on

the trowel arm to lock in place.

8. Loosen locking nuts on the adjustment fixture, and remove

trowel arm.

9. Repeat steps for the remaining trowel arms.

Re-Assembly

1. Clean and examine the upper/lower wear plates and thrust

collar. Examine the entire spider assembly. Wire brush any
concrete or rust build-up. If any of the spider components are
found to be damaged or out of round, replace them.

2. Make sure that the bronze trowel arm bushing is not damage

or out of round. Clean the bushing if necessary. If the bronze
bushing is damaged or worn, replace it.

3. Reinstall bronze bushing onto trowel arm.

4. Repeat steps 2 -3 for each trowel arm.

5. Make sure that the spring tensioner is in the correct position

to exert tension on the trowel arm.

6. Insert all trowel arms with levers into spider plate (with bronze

bushing already installed) using care to align grease hole on
bronze bushing with grease hole fitting on spider plate.

7. Lock trowel arms in place by tightening the hex head bolt with

zerk grease fitting and jam nut.

8. Re-install the blades onto the trowel arms.

9. Install stabilizer ring onto spider assembly.

10. Lubricate all grease points (zerk fittings) with premium

"

Lithum 12"

based grease, conforming to NLG1 Grade #2

consistency.

6. Loosen the locking nut on the trowel arm lever, then turn the

trowel arm adjusting bolt until it barely touches (.010") the
fixture adjusting bolt.

1

2

3

4

5

6

7

9

8
