STR46SPVGH • RIDE-ON POWER TROWEL — OPERATION MANUAL — REV. #0 (07/17/08) — PAGE 19
STR46SPVGH — INITIAL START-UP
This section is intended to assist the operator with the initial
start-up of the STR46SPVGH trowel. It is extremely important
that this section be read carefully before attempting to use the
trowel in the field.
DO NOT use your trowel until this section is thoroughly
understood.
1. Check the gearbox oil level in both gearboxes
by viewing the sight glass at the rear of the
gearbox. See Figure 8.
Fuel
Determine if the engine fuel is low (Figure 9). If fuel level is low,
remove the fuel filler cap and fill with appropriate engine fuel.
The STR46SPVGH uses gasoline fuel.
2. The oil level of the gear box should be at the half-way point
of the sight glass (Figure 8). The gear box oil capacity is
144 oz., (4.26 liters). If additional oil is required, unscrew
the oil fill plug located on top of the gearbox, and refill with
ISO 220 A GMA GR 5 EP oil.

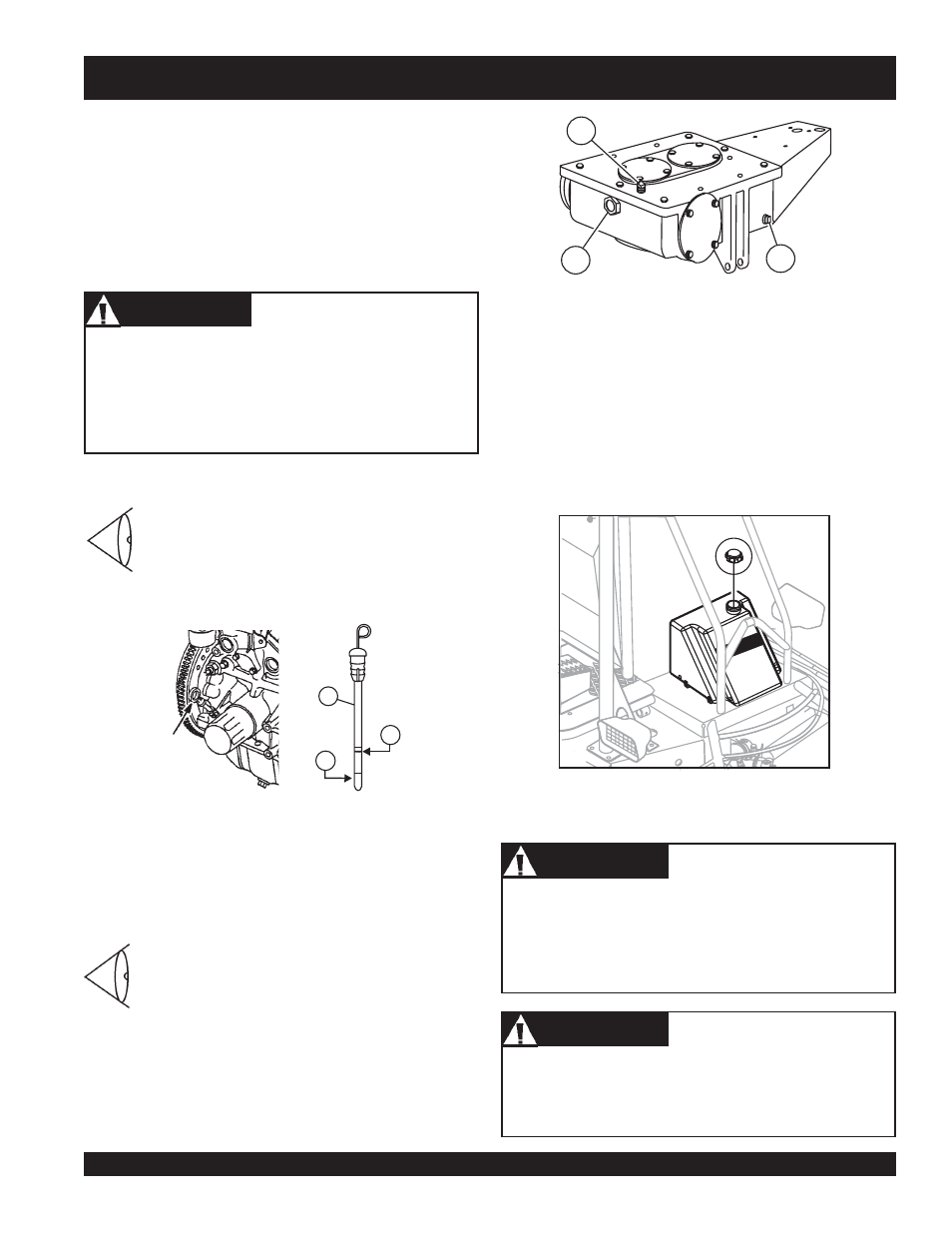

Figure 8. Gearbox Oil Plugs/Sight Glass
Figure 9. Fuel Fill Cap
Figure 7. Engine Oil Dipstick
1. Pull the engine oil dipstick from its holder.
2. Determine if engine oil is low (Figure 7), add
correct amount of engine oil to bring oil level
to a normal safe level. (See Recommended
Viscosity Grades, Table 4, Page 24).
Gearbox Oil Level
Handle fuel safely. Motor fuels are highly flammable and
can be dangerous if mishandled.
DO NOT smoke while
refueling. DO NOT attempt to refuel the ride-on trowel if the
engine is hot or running.
Engine Oil Level
See Figures 3 and 4 (Pages 15 and 16) for the location of
any control or indicator referenced in this manual.
Failure to understand the operation of the STR46SPVGH
Trowel could result in severe damage to the trowels or
personal injury.
CAUTION CAUTION CAUTION CAUTION CAUTION
CAUTION CAUTION CAUTION CAUTION CAUTION
Never store the ride-on trowel with fuel in the tank for any
extended period of time. Always clean up spilled fuel
immediately.
CAUTION CAUTION CAUTION CAUTION CAUTION
1
2 3
1 Fill Plug
2 Drain Plug
3 Sight Glass (Oil Check)
1 Engine Oil Dipstick
2 Add Engine Oil
3 Safe Operating Oil Level
MAX
MIN
1
3
2
INITIAL START UP
ENG INE FUE L ON
LY
