STR46SPVGH • RIDE-ON POWER TROWEL — OPERATION MANUAL — REV. #0 (07/17/08) — PAGE 26
4. If the belt is not being reused (recommended), CUT the
drive belt. Ensure all belt remnants are removed from
the pulleys.
3. Insert the wooden block (Figure 16) between the moveable
face and the fixed face of the lower drive pulley. See Figure
20. This block will help keep the lower drive pulley faces
open while installing the new drive belt.

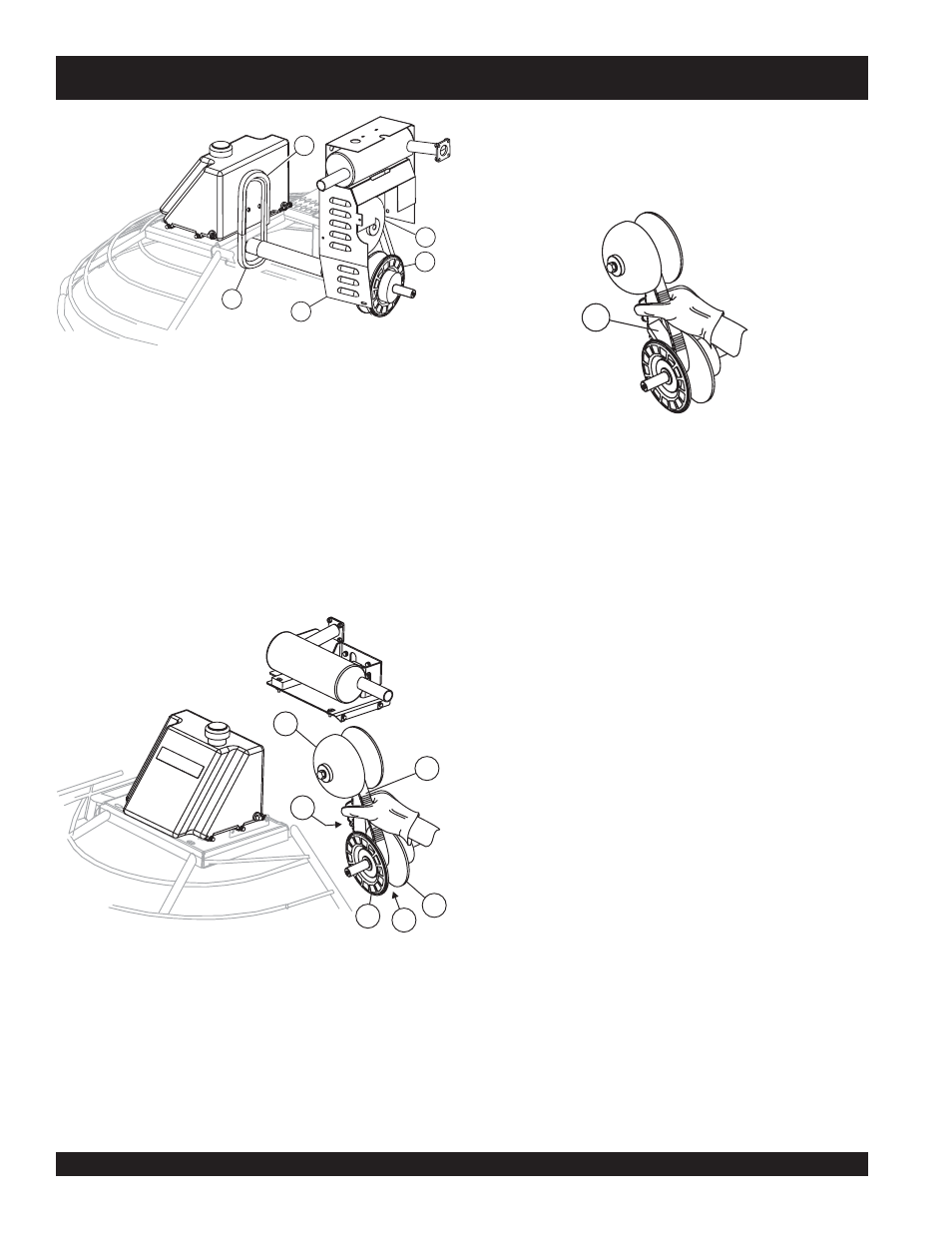

Figure 19. Holding Lower Pulley Open
Installing the Drive Belt (Using Replacement Drive Belt)
The STR46SPVGH Ride-On Power Trowel is equipped with a
replacement drive belt (spare) carrier, which is mounted on the
inboard side of the fuel tank near the clutch. Make sure that there is
ALWAYS a spare drive belt in the drive belt carrier before the trowel
is placed on a slab to finish concrete.
1. If necessary, refer to Removing Drive Belt Instructions.
Ensure all remnants of old belt have been removed from
pulleys.
In the event of a drive belt failure, the spare (replacement) drive belt
can be used for quick replacement at the job site to continue trowel
operation.
STR46SPVGH — MAINTENANCE
Figure 17. Drive Belt Guard Cover
1. Remove Drive Belt Guard Cover (item 1 Figure 17).
2. Squeeze the drive belt as shown in Figure 18, and pull the
V-belt upwards. This will spread open the faces of the
lower
drive pulley.
1 Drive Belt Guard Cover
2 Lower Pulley
3 Upper Pulley
4 Spare Drive Belt
5 Spare Drive Belt Holder
4
5
1
2
3
Figure 18. Expanding Lower Drive Pulley
5
6
3
2
4
1
1 Upper Pulley
2 Drive Belt
3 Lower Pulley Fixed Face
4 Lower Pulley Spread Apart
5 Lower Pulley Movable Face
6 Squeeze and Pull Up To Spread Lower Pulley
2. To replace the drive belt with the spare drive belt, remove
the 2 bolts that secure the drive belt carrier (Figure 20).
This will allow free movement of the belt for installation.
Take care with to not contaminate the relplacement belt
with grease or dirt.
A Wood Block
