STR46SPVGH • RIDE-ON POWER TROWEL — OPERATION MANUAL — REV. #0 (07/17/08) — PAGE 15
STR46SPVGH — CONTROLS AND INDICATORS

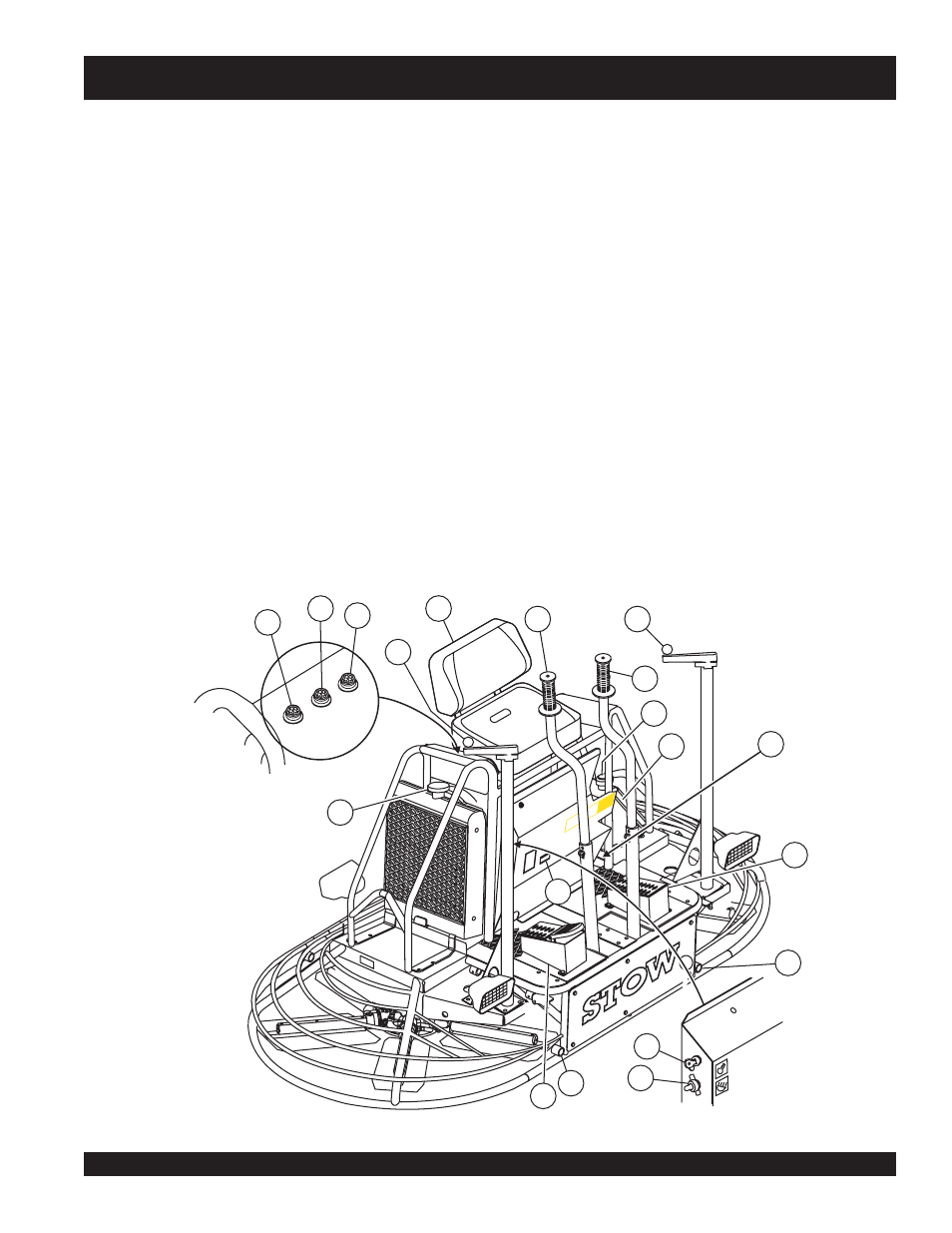

Figure 3. STR46SPVGH Controls and Indicators (Front)
12. Hour Meter - Indicates number of hours the key switch is
in the "ON" position.
13. Choke Control Lever - In cold weather pull this lever
forward about half way to start engine. After engine warms
push knob all the way in.
14. Fuel Filler Cap - Remove this cap to add fuel.
15. Fuel Tank - Holds 5 gallons of fuel.
16. Spare Belt Carrier - Contains a spare belt. Belt is used on
the drive pulley.
17. Left Foot Riser – Operator foot rest pedal.
18. EZ -Mover Boss – Front-side insertion point for EZ Mover.
Used when the transporting of the trowel is required.
19. Right Foot Pedal – Controls blade speed. Slow blade
speed is accomplished by slightly depressing the foot pedal.
Maximum blade speed is accomplished by fully depressing
the foot pedal.
1. Seat – Provides comfortable position for operation of the
trowel. Engine will not start unless operator is seated. Seat
is adjustable, fore and aft for operator comfort.
2. Steering Control Lever (right side) -Allows the unit to
move in either a forward, reverse left or right direction.
3. Radiator/Filler Cap – Holds coolant or water necessary to
keep engine at a safe operating temperature. Remove this
cap to add water or antifreeze.
DO NOT revove this cap
when the engine is warm.
4. Pitch Control (Right) – Adjusts the blade pitch for right
side of the trowel.
5. Pitch Control (Left) – Adjusts the blade pitch for left side
of the trowel.
6. Steering Control Lever (left side) -Allows the unit to move
in either a forward, reverse left or right direction.
7. Light Switch – When activated, turns on four halogen
lights. Lights offer better visibility when working indoors.
8. Ignition Switch – With key inserted turn clockwise to
start engine.
9. Oil Indicator Light - Lights red when oil pressure is low.
11. Charge Indicator - Lights red when electrical system is
not charging properly.
10. Water Indicator Light - Lights red when water temperature
is high.
STR
46
CHG
WA
TER
OIL
15 16
17
18
18
12
19
7
8
11
4
3
5
6
1
2 9
14
10
