JWN-SeRIeS RIDe-ON pOWeR TROWeL • OpeRaTION maNuaL — Rev. #1 (05/12/12) — page 17
17.
Rear Light — The JWN-Series Ride-On Power Trowel
has three 12 volt halogen lights.
18.
Lift Loops — Located on both sides of the main frame.
Used to lift the trowel.
19.
Retardant Spray Tank — Holds 5 gallons of retardant.
20.
Retardant Spray pump — Delivers retardant to the
spray nozzle.
21.
ez-mover Boss — Rear attachment point for EZ
Mover. Used to transport the trowel.
22.
Right-Side Spider — Consists of trowel arms, blades,
wear plate, and thrust collar.
23.
Left-Side Spider — Consists of trowel arms, blades,
wear plate, and thrust collar.
24.
Document Box — Contains all product documentation.
25.
Battery — Provides +12V DC power to the electrical
system.
26.
Belt guard — Encloses drive belt used in conjunction
with clutch.
27.
Charcoal Canister — Charcoal activated system
that absorbs or traps fuel vapors. Basic component of
evaporative emissions control systems
28.
Safety Kill Switch — Shuts down engine when seat
is not occupied by operator.
cOMpOnentS

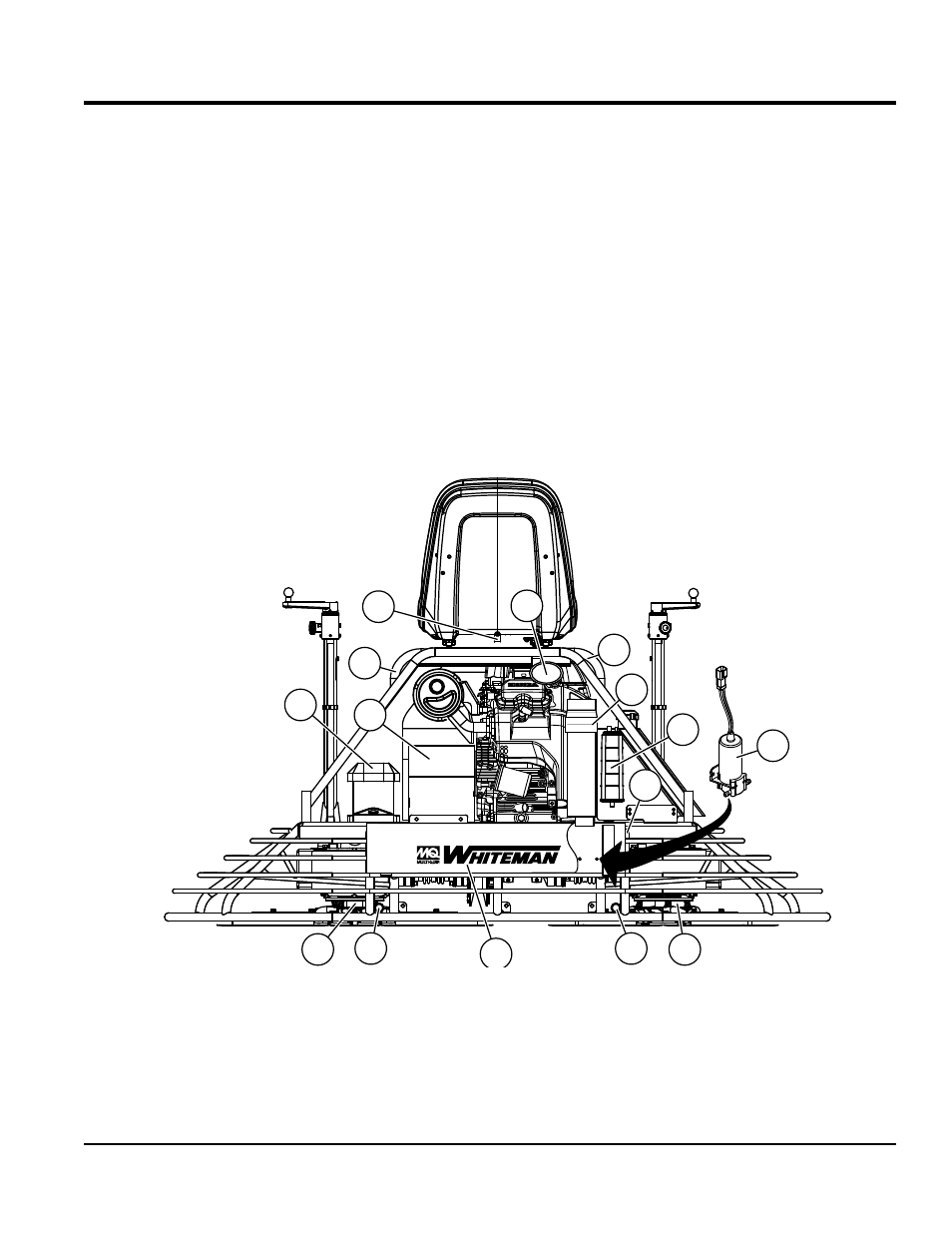

Figure 3. Components – Rear
28
17
18
27
18
25
21
21
22
25
26
23
24
RETARDANT ONLY
20
19
